Omnitronic Wall-mounted speaker White 120 W 2 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic OD-8 wall speaker 8Ohm white 2x
- 2 weatherproof speakers with bracket
- 8" woofer, 1" tweeter, 50 W RMS
- 8 Ohm PA loudspeaker for universal use
Technical specifications
- Content
2 pc(s)
- Max. audio capacity
120 W
- Power handling (sinus)
60 W
- Impedance
8
- Factory colour
White
- Width
245 mm
- Height
380 mm
- Depth
240 mm
- Weight
91 g
- Dim
(W x H x D) 245 x 380 x 240 mm
- Audio power range (max.)
101 W - 200 W
- Features
sprayproof
- Product type
Wall-mounted speaker
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131323 Omnitronic Wall-mounted speaker White 120 W 2 pc(s)
Description
2-way system with 20 cm woofer (8") and 2.5 cm dome tweeter (1") with silk diaphragm

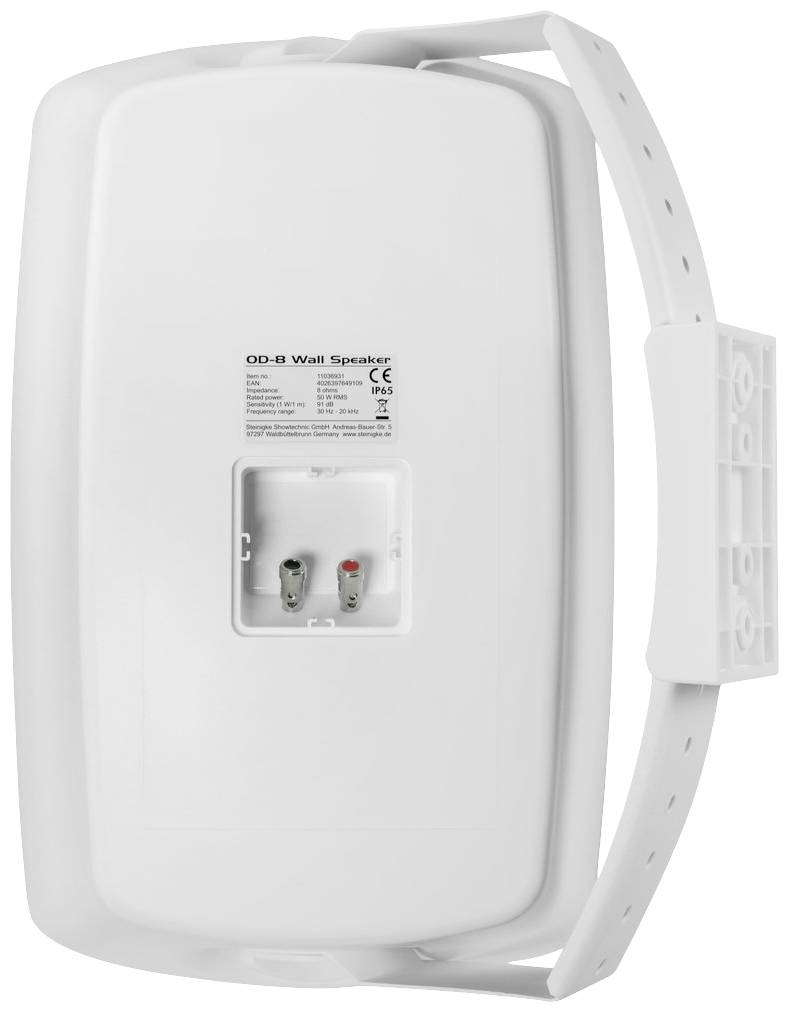

Stable plastic housing with metal grille and cover over the connections

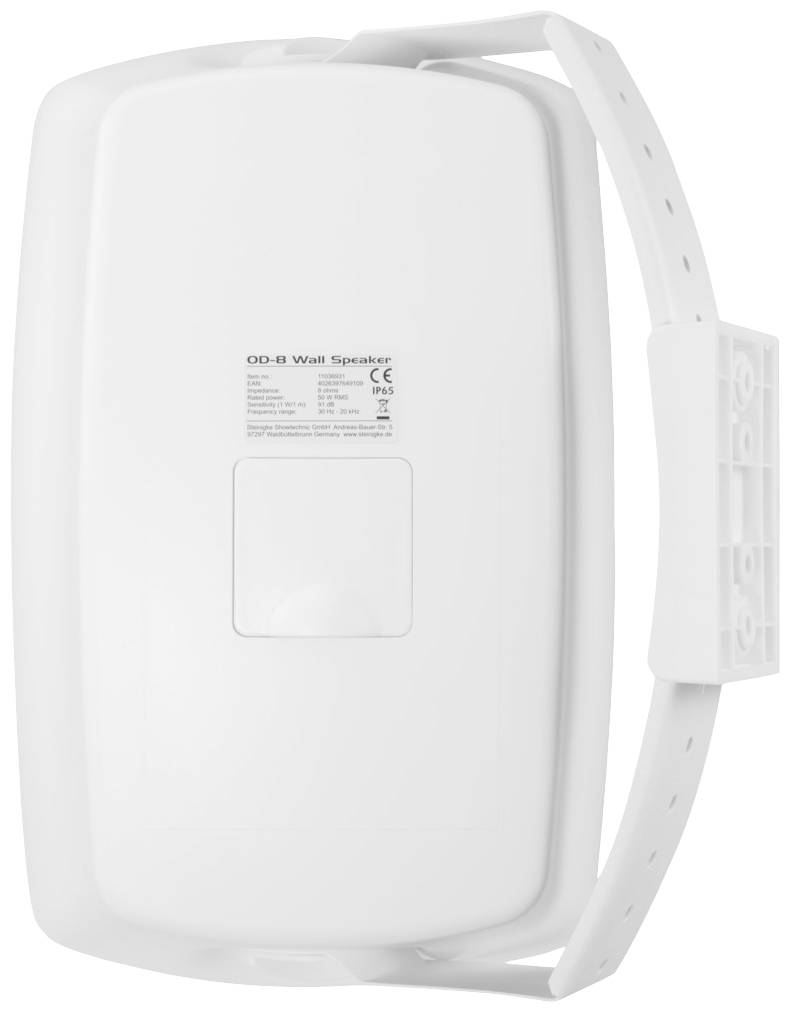

With mounting bracket swiveling and tilting for wall and ceiling mounting at any angle
Suitable for outdoor areas IP65

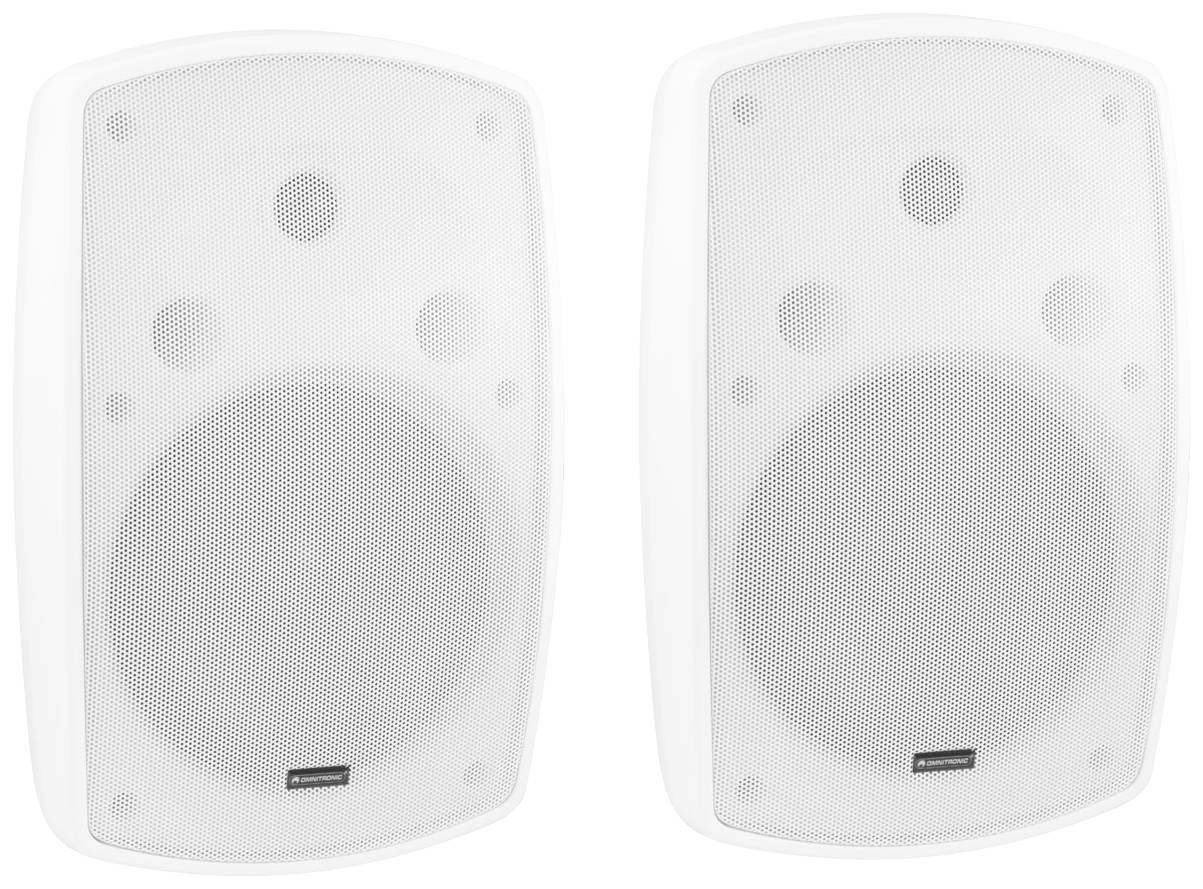

Set of 2
This text is machine translated.
Stable plastic housing with metal grille and cover over the connections
With mounting bracket swiveling and tilting for wall and ceiling mounting at any angle
Suitable for outdoor areas IP65
Set of 2
This text is machine translated.
Features
- Frequency range 30 20000 Hz
- Impedance 8 Ohm
- Connections: Speaker via screw terminal
- Protection system: IP65
- Load carrying capacity: 120W
- Nominal 60W RMS
- Sensitivity 91 dB
- Max. Sound pressure level 112 dB
- Emission ratio 170° x 170°
- Mounting system: Swivel and tilt mounting bracket for wall and ceiling mounting at any angle
- 1 x 8" woofer
- 1 1" dome tweeter 1 x 1" dome tweeter
- Speaker type: Surface-mount speaker (wall/ceiling)
- Material: plastic
Scope of delivery
- 2 x compact box
- 2 x mounting bracket
- 4 x Knurled screw
- User manual
