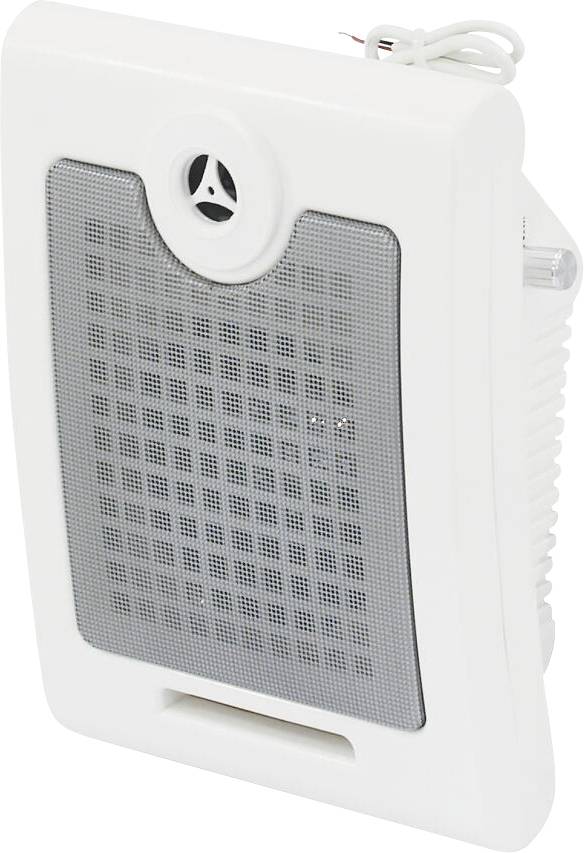

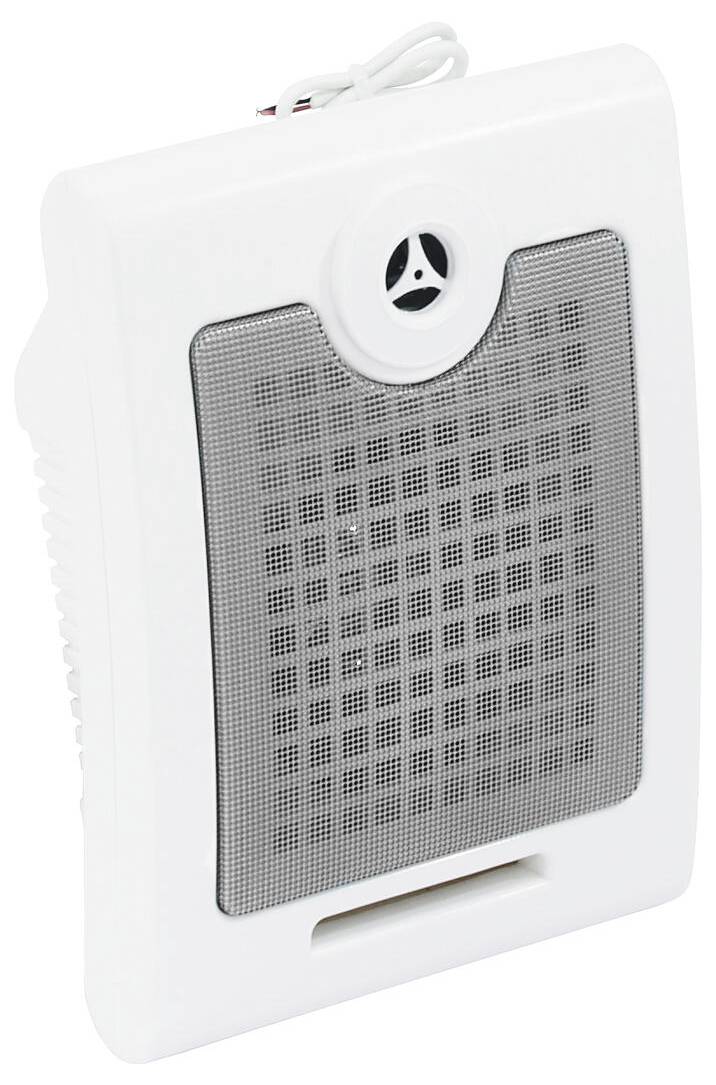

Omnitronic WC-3 PA wall speaker 20 W White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Power connection: Fixed connection cable with open cable ends
- Load capacity: Program 20 W; nominal 10 W RMS
- Frequency range 150 15000 Hz
- Sensitivity 91 dB
- Impedance: ELA technology 100 V

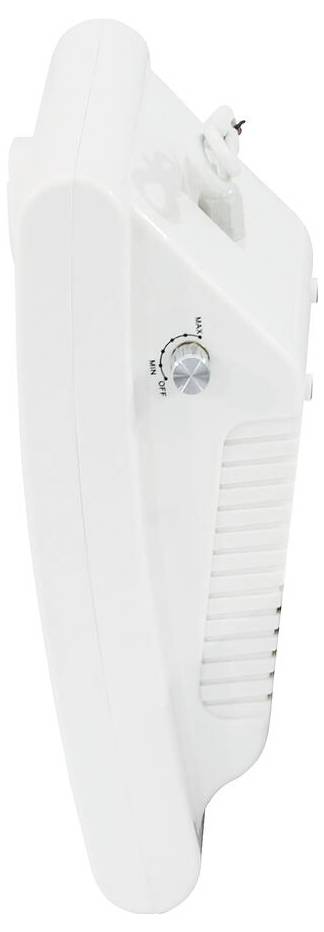

- Controls: Volume control
- 1 x 3" woofer
- Speaker type: Surface-mount speaker (wall/ceiling)
- Material: ABS acrylonitrile-butadiene-styrene copolymers
- Colour: White, scratch and impact-resistant
- Dimensions: Width: 20 cm; depth: 10.5 cm; height: 27.5 cm
- Product type
PA wall speaker
- Type
Square
- RMS capacity
10 W
- Max. load
20 W
- Power levels
20 W
10 W
- Max. sound pressure
91 dB
- Features
Ceiling speaker
- Frequency range
150 - 15000 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Acrylonitrile butadiene styrene
- Weight
1340 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729782 Omnitronic WC-3 PA wall speaker 20 W White 1 pc(s)
Description
3"-broadband loudspeaker, ELA technology 100V, 10 W RMS. 100 V technology with wide-range speaker and treble cone. Optimum radiation angle through downwards angled housing shape. Scratch and impact-proof. Applications include: Installation; restaurants, bars and hotels; sports centers/gyms.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x speaker
- 1 x Operating manual
