Buy Omnitronic XDA-1204 PA amplifier RMS power per channel (at 4 Ohm): 300 W

1/5

Unavailable

Sales and shipping:

Highlights & Details

Class D multi-channel PA-amplifier with switched-mode power supply
4 x 300 W RMS (4 ohm), 4 x 180 W RMS (8 ohm)
Very low weight and compact installation height through built-in switched-mode power supply
3 modes can be set (stereo, parallel or bridge)
This text is machine translated.

User & Safety Instructions 3131318 Omnitronic XDA-1204 PA amplifier RMS power per channel (at 4 Ohm): 300 W

Level control per channel
(19") 48.3 cm rack installation 1 HE
Power supply 230 V AC 50 Hz
Total connected wattage 1440 W
Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
Frequency range: 20 - 20 000 Hz
Signal-to-noise ratio 100 dB
Harmonic distortion factor: 0.05 % with 1 kHz
Impedance: 20 kOhm , balanced
Input: Line via 4 x screw terminals

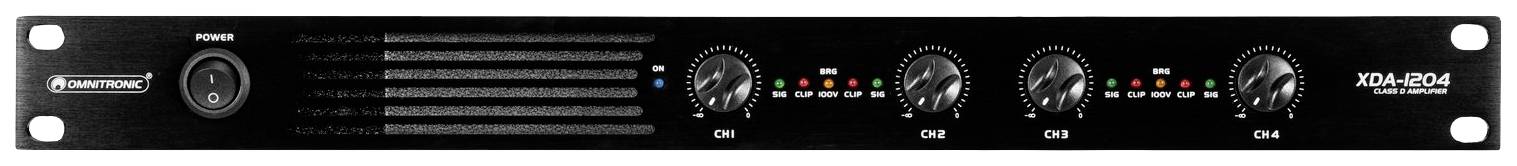

Controls: Power switch, operation selection switch (stereo/parallel/bridged), volume control per channel
Status LED: Power, signal, clip, bridged

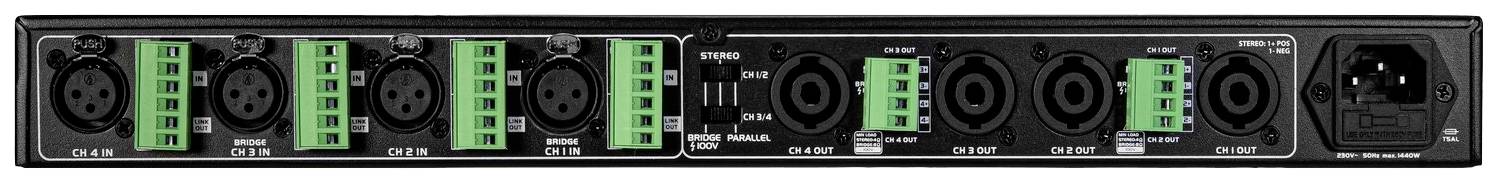

Connections: Line via 4 x 3-pin XLR
Output: Speaker via 4 x screw terminals
Housing design (19") 48.3 cm Rack installation 1 HE
Protection class SK I
Output power 4 x 300 W RMS (4 ohm)
Class D switching
Protective circuit: Soft start
DC voltage: DC voltage
Short circuit: Short circuit
Overheating: Overheating
4 x 180 W RMS (8 ohm)
2 x 600 W RMS bridged (8 ohm)
2 x 600 W RMS bridged (100 V)
Overload: Overload
