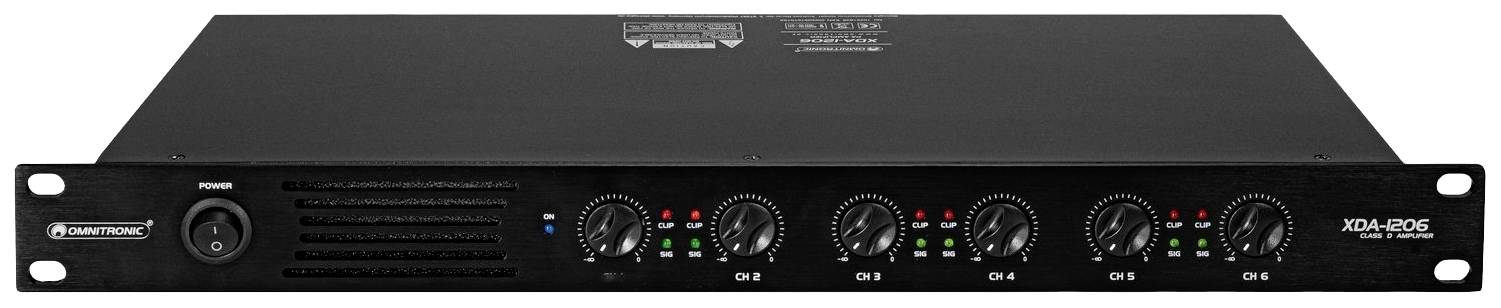

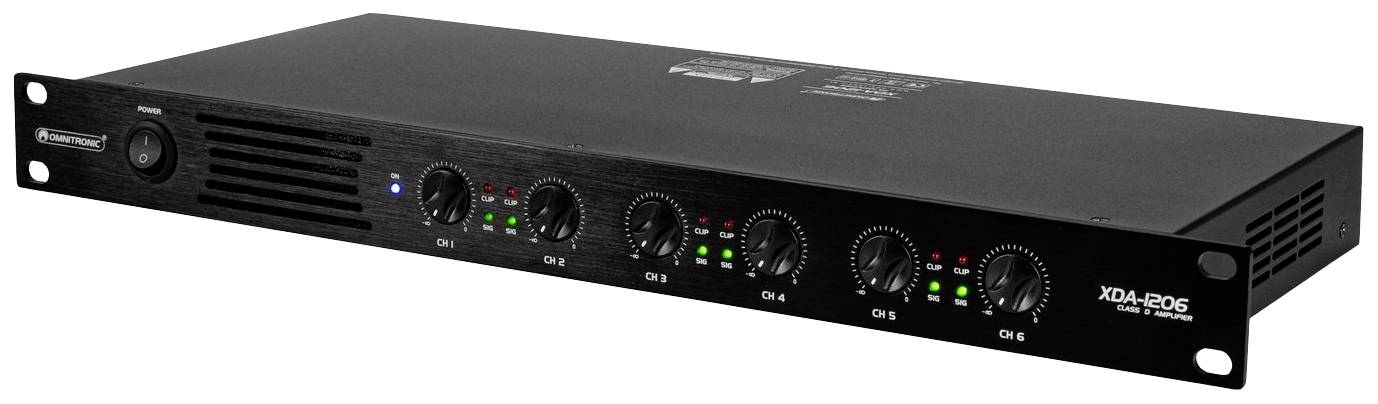

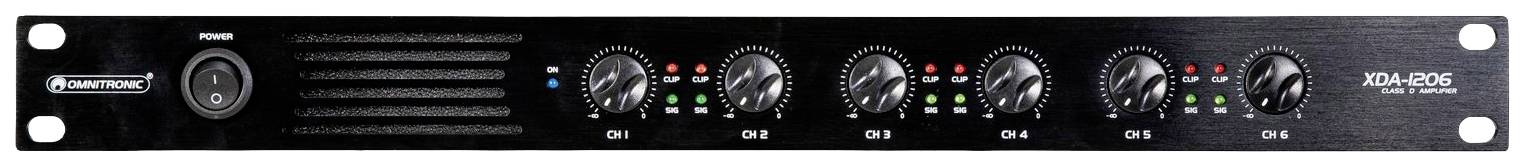

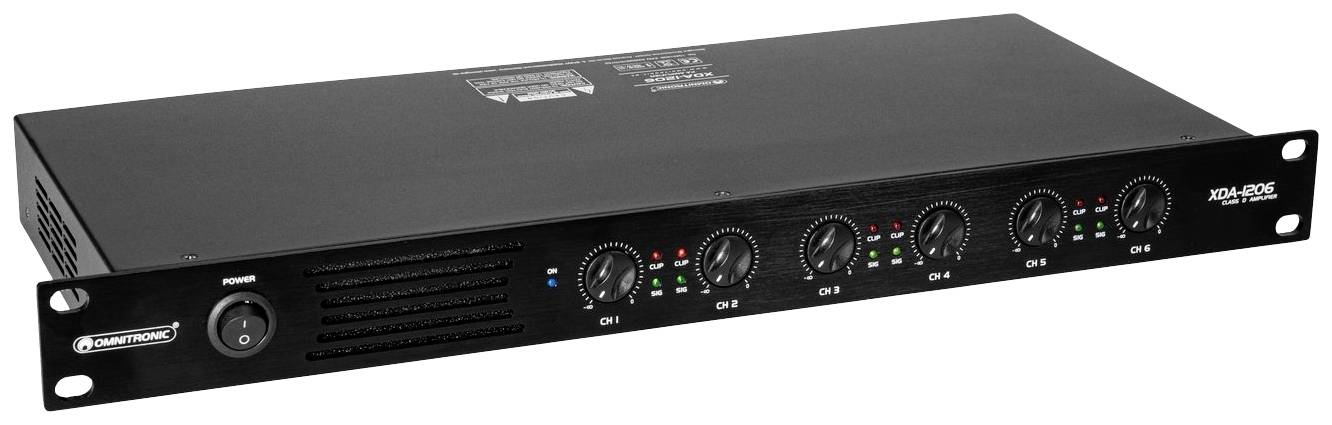

Buy Omnitronic XDA-1206 PA amplifier RMS power per channel (at 4 Ohm): 200 W

1/5

Unavailable

Sales and shipping:

Highlights & Details

Class D multi-channel PA amplifier with switched-mode power supply, 6 x 200 W RMS (4 ohm), 6 x 150 W RMS (8 ohm)
Very low weight and compact installation height through built-in switched-mode power supply
Level control per channel
(19") 48.3 cm rack installation 1 HE
This text is machine translated.

User & Safety Instructions 3131319 Omnitronic XDA-1206 PA amplifier RMS power per channel (at 4 Ohm): 200 W

Power supply 230 V AC 50 Hz
Total connected wattage 1440 W
Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
Frequency range: 20 - 20 000 Hz
Signal-to-noise ratio 100 dB
Harmonic distortion factor: 0.05 % with 1 kHz
Impedance: 20 kOhm , balanced
Input 6 x screw terminal
Controls: Power switch, volume control per channel
Status LED: Power, signal, clip

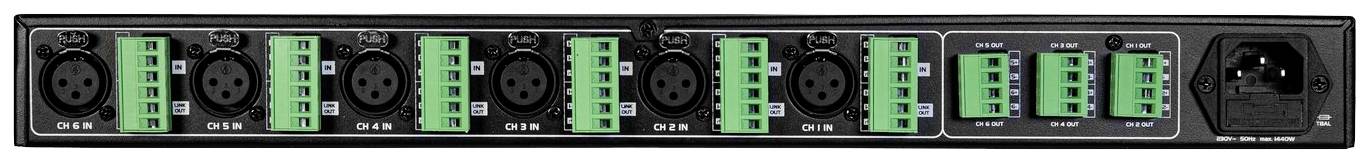

Connections: Line via 6 x 3-pin XLR
Output: Speaker via 6 x screw terminals
Housing design (19") 48.3 cm Rack installation 1 HE
Protection class SK I
Output power 6 x 200 W RMS (4 ohm)
Class D switching
Protective circuit: Soft start
DC voltage: DC voltage
Short circuit: Short circuit
Overheating: Overheating
Overload: Overload
6 x 150 W RMS (8 ohm)
Link: Line via 6 x screw terminals
