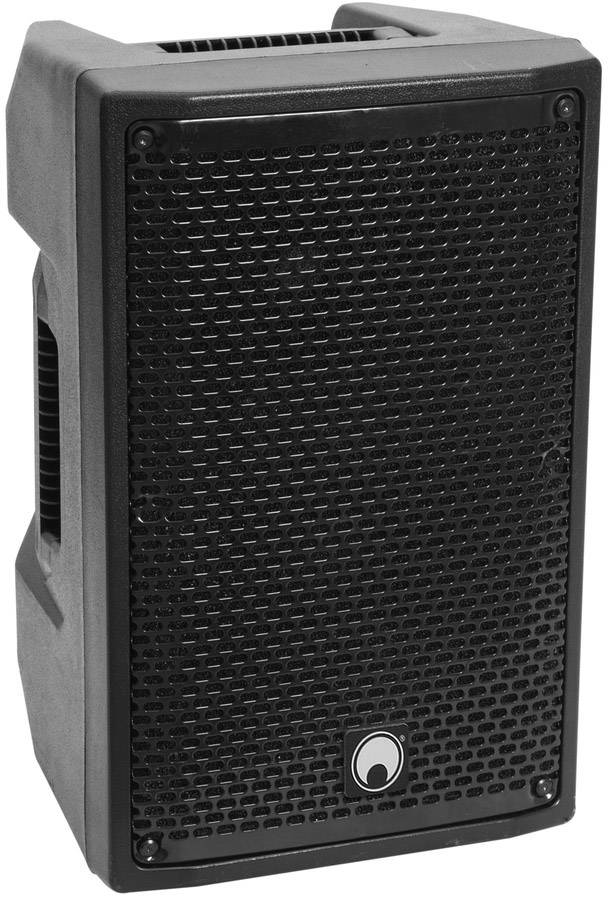

Omnitronic XKB-208A Active PA speaker 20 cm 8 inch 70 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
XKB-208A 2-way speaker, active, Bluetooth
- RMS power:70 W
- Max. power:140 W
- 8 inch
- 94 dB
Technical specifications
- Power supply: 230V AC, 50Hz amplifier power: 70 W RMS LF, 35W RMS HF LF-speaker: 20 cm woofer/mid-range (8") with 38 mm voice coil HF-speaker: 25 mm (1") compression driver input Mic/Line: Combination XLR/6.3-mm jack, bal. Input Line: stereo cinch output line: XLR, bal. Weight: 6.9 kg sensitivity: 94 dB size of the low toner: 20 cm (8") number of woofer: 1 piece frequency range: 65 - 20000 Hz Height: 43 cm depth: 27 cm Width: 26 cm
- Product type
Active PA speaker
- RMS power
70 W
- Max. power
140 W
- Speaker size (cm)
20 cm
- Speaker size (inch)
8 inch
- Max. sound pressure
94 dB
- Interfaces
XLR in
XLR out
6.3 mm jack in
- Features
Bluetooth
Can be used as a stage monitor
- Dim
(W x H x D) 260 x 430 x 270 mm
- Frequency range
65 - 20000 Hz
- Weight
6.9 kg
- Content
1 pc(s)
- Width
260 mm
- Height
430 mm
- Depth
270 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1876891 Omnitronic XKB-208A Active PA speaker 20 cm 8 inch 70 W 1 pc(s)
Description
XKB-208A 2-way speaker, active, Bluetooth.
This text is machine translated.
This text is machine translated.
Features
- 2-way bass reflex system with 20 cm woofer and 2.5 cm tweeter

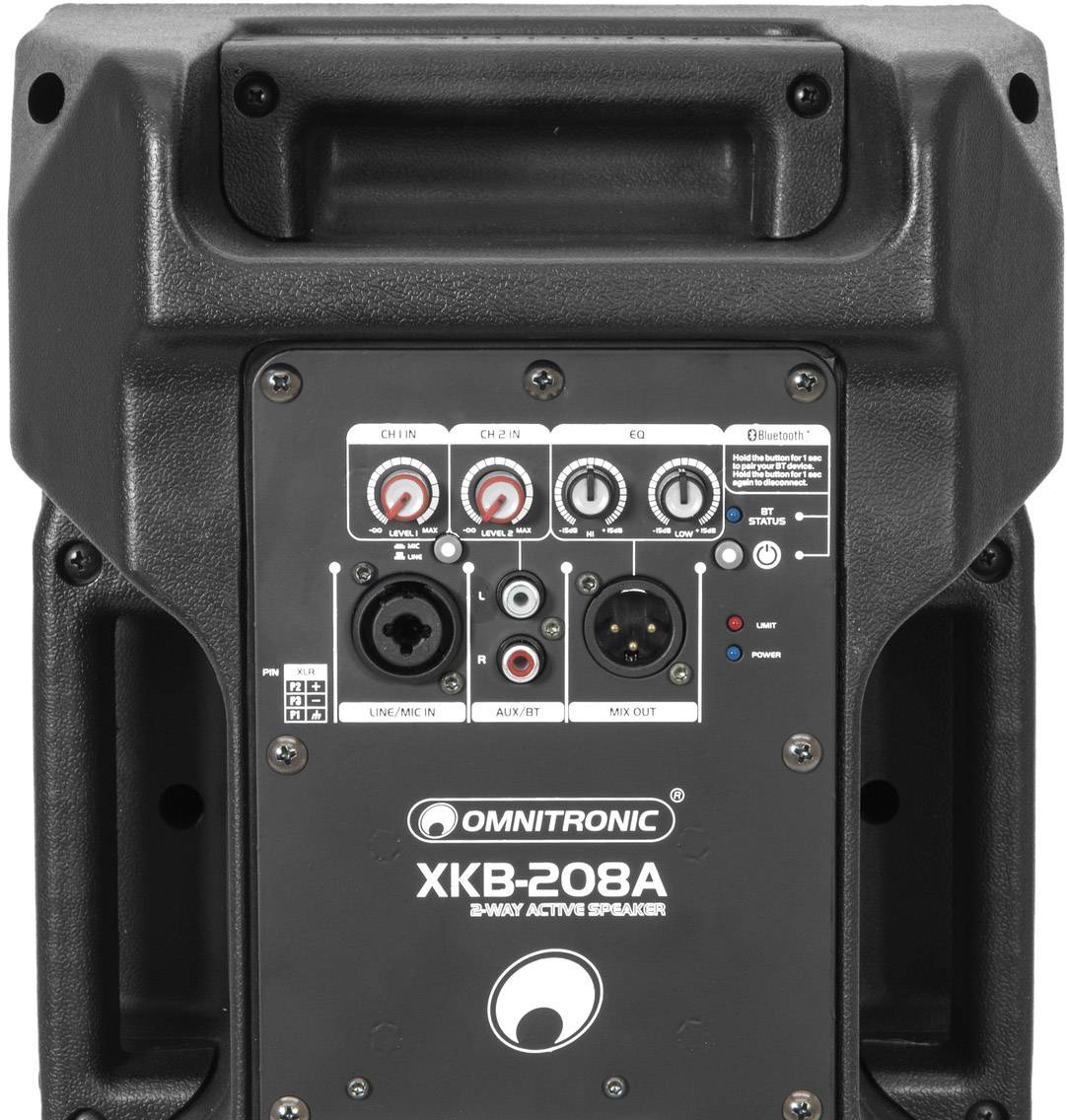

- 1 controllable combination input XLR/jack, Switchable Mic/Line
- 1 controllable line input, Cinch
- Master control with 2-band EQ, limit, and power LED
- XLR output for connecting further active boxes
- Limiter function for overload protection
- Stable plastic housing with protective grille and carrying handles

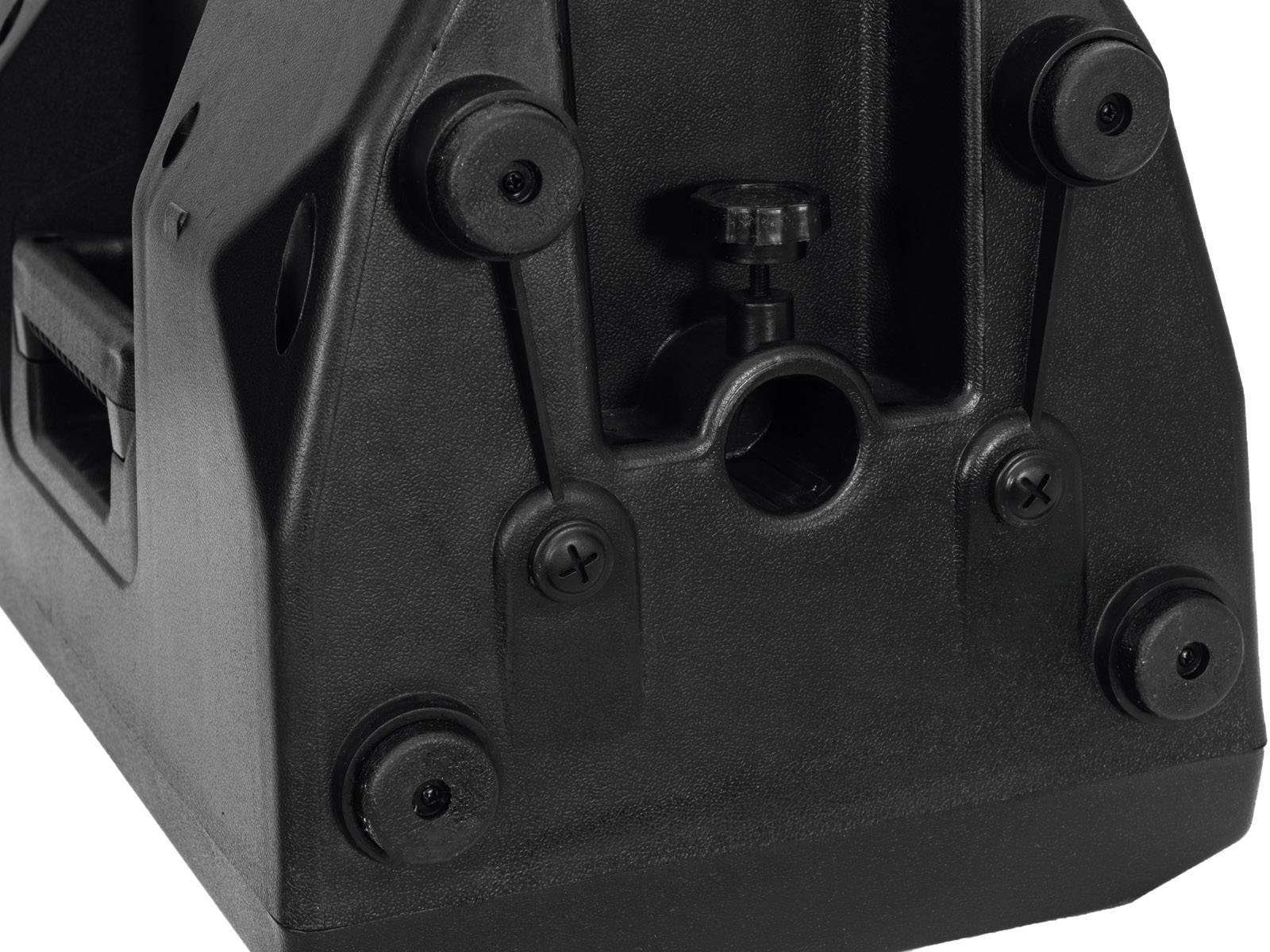

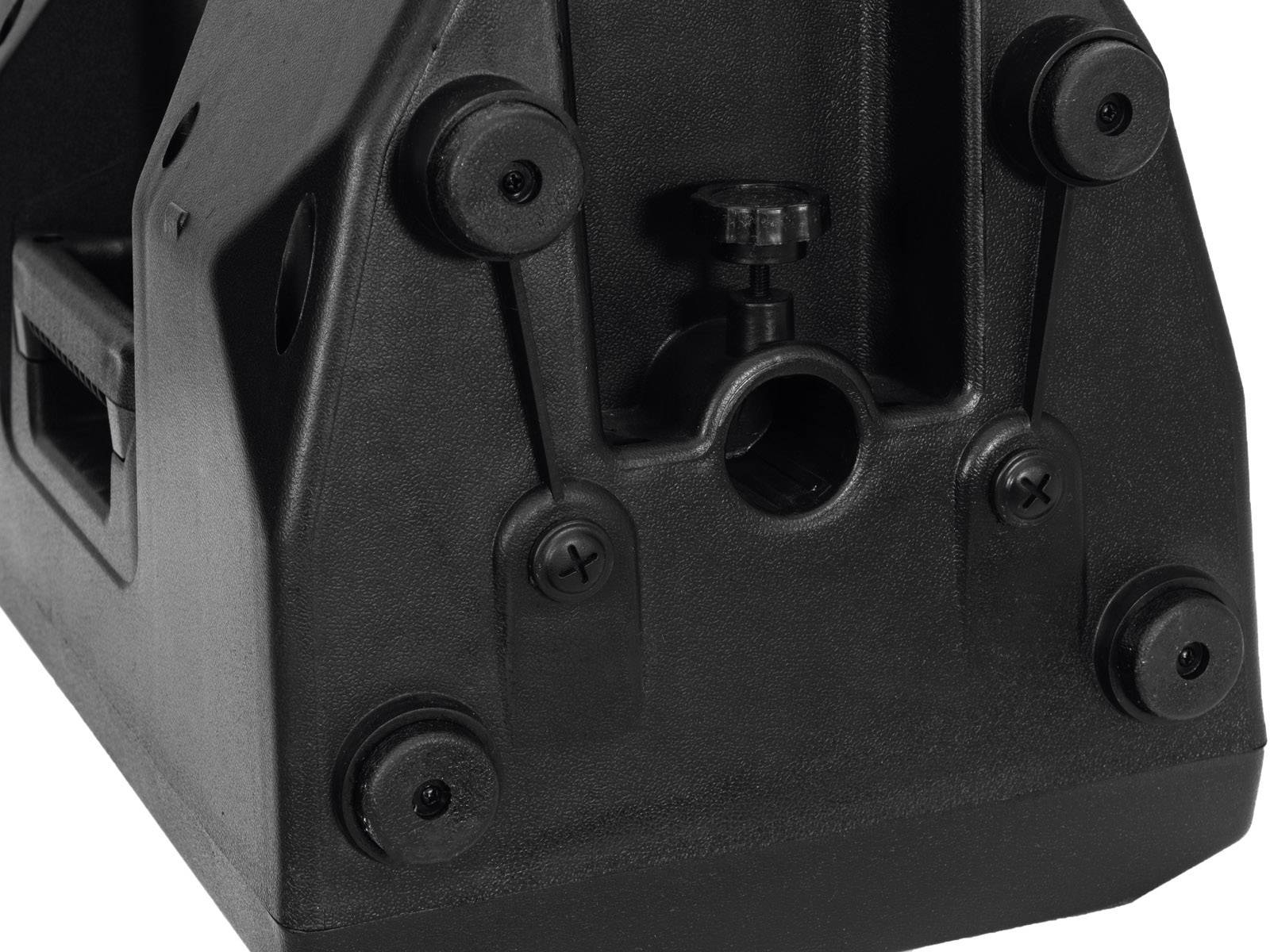

- 36-mm installation flange for mounting the stand
- Use as a floor monitor, standing, on a stand or on a wall bracket
- Master Equalizer: 1x controller, 2-Band.
