Buy Omnitronic XNG-208 Passive PA speaker 8 inch 200 W 1 pc(s)

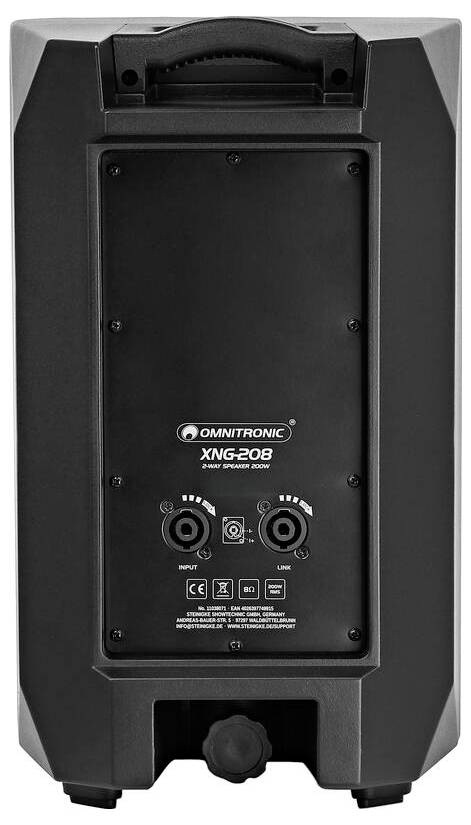

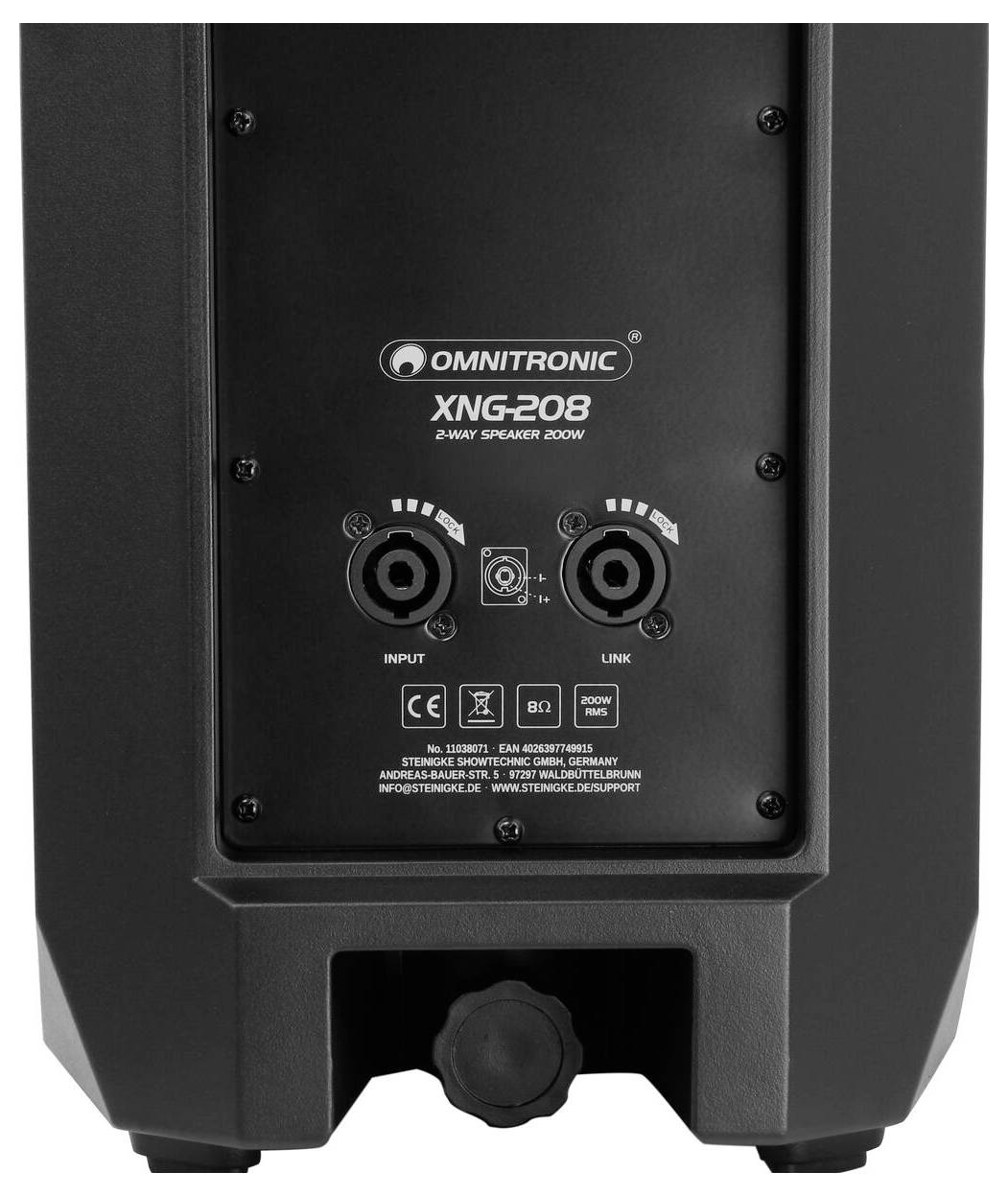

The image shows the rear panel of an Omnitronic XNG-208 speaker. It features input and link audio ports, and is marked as a 2-way speaker.

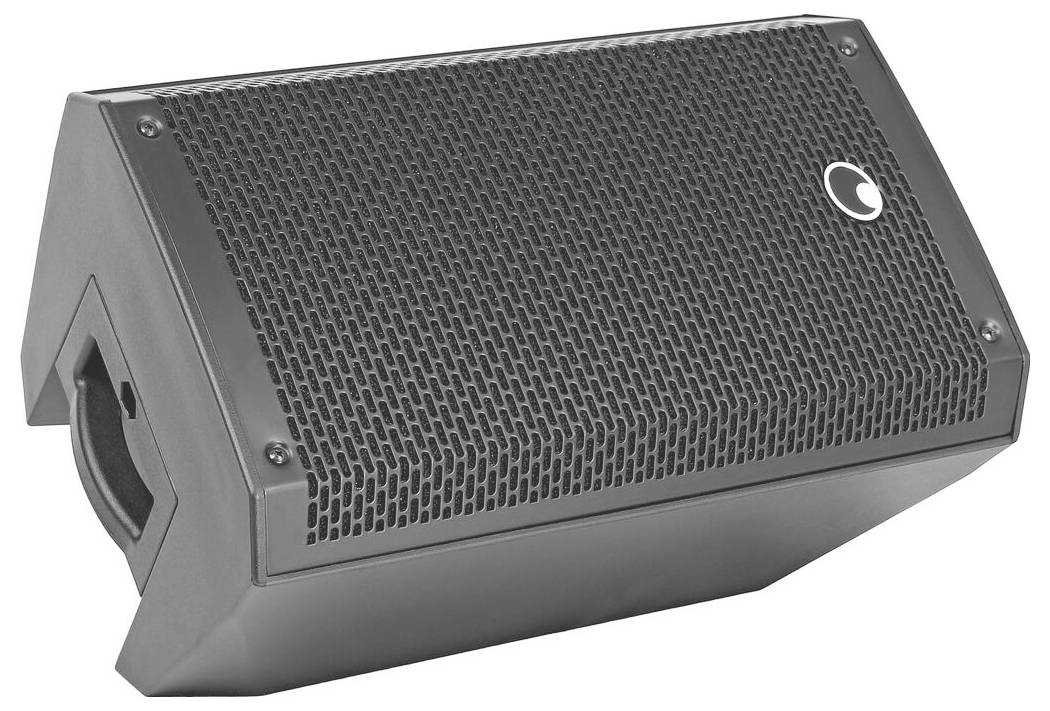

Stage monitor speaker with a metal grille and compact, angular design, used for live music performance sound reinforcement.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Omnitronic XNG-208 2-way loudspeaker 8 inch

RMS capacity:200 W
Max. load (W):400 W
8 inch
120 dB

Technical specifications

Peak load carrying capacity 400 W; 200 W RMS
Frequency range 65 18000 Hz
Sensitivity 94 dB (1W/1m)
Max. Sound pressure level 120 dB
Emission ratio 90° x 60°
Impedance 8 Ohm
Support system: Flange: Ø 35 mm
Connections:
Input: Speaker via 1 x speaker mounted socket (W)
Link: Speaker via 1 x speaker mounted socket (W)
Separation frequency 2500 Hz
Speakers:
1 x 8" woofer with ferrite magnet
Basket material: Steel
Conus material: Cardboard / paper
2" moving coil woofer with ferrite magnet
1" moving coil compression driver - high tone
1 x 1" compression driver tweeter with ferrite magnet
Speaker type: Compact box
Bass reflex design
Molded carrying handle:1 items
Material: PP polypropylene
Colour: Black, powder-coated

Product type: Passive PA speaker

RMS capacity: 200 W

Max. load: 400 W

Speaker size (inch): 8 inch

Features: Can be used as a stage monitor

Impedance: 8 Ω

Max. sound pressure: 120 dB

Frequency range: 65 - 18000 Hz

Dim: (W x H x D) 259 x 432 x 250 mm

Weight: 7600 g

Content: 1 pc(s)

Width: 259 mm

Height: 432 mm

Depth: 250 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729565 Omnitronic XNG-208 Passive PA speaker 8 inch 200 W 1 pc(s)

Description

Passive box with 8" woofer, 1" driver and 200 W RMS. Metal grid in black with acoustic foam. Dimple Possible application: Standing; monitoring; on stand. For applications such as: Mobile use; distributors; sports centers/fitness studios; mobile DJs/solo entertainers.
