Omnitronic XNG-208A Active PA speaker 8 inch 250 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic XNG-208A 2-way speaker, active, DSP
- RMS power:250 W
- Max. power:350 W
- 8 inch
- 121 dB
Technical specifications
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 100 W
- Output power 350 W RMS system; 250 W RMS (8 ohm) LF; 100 W RMS (8 ohm) HF
- Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
- Frequency range 65 20000 Hz
- Max. Sound pressure level 121 dB
- DSP: Digital signal processor; delay; multi-band compressor; multi-step limiter; active phase correction; delay compensation; 3-band EQ
- DSP-PRESETS: DEFAULT; LIVE; DANCE; MONITOR; SPEECH
- Emission ratio 90° x 60°
- Cooling: Passive convection cooling
- Low cut: FLAT, 80 Hz, 100 Hz, 120 Hz, switchable
- Delay 0 - 10 ms
- Bluetooth control
- Bluetooth: With stereo link (TBW)
- Bluetooth Device Name: XNG-208A DSP
- Range: Bluetooth: Up to 10 m indoors
- Carrier frequency 2.4 GHz
- Support system: Flange: Ø 35 mm
- Circuit: Class D Biamp
- Display type: Single-color LCD display
- Controls: Power switch, encoder, volume control per channel
- Protection circuit: Overheating; direct voltage; short circuit; limiter
- Status LED Power, limit

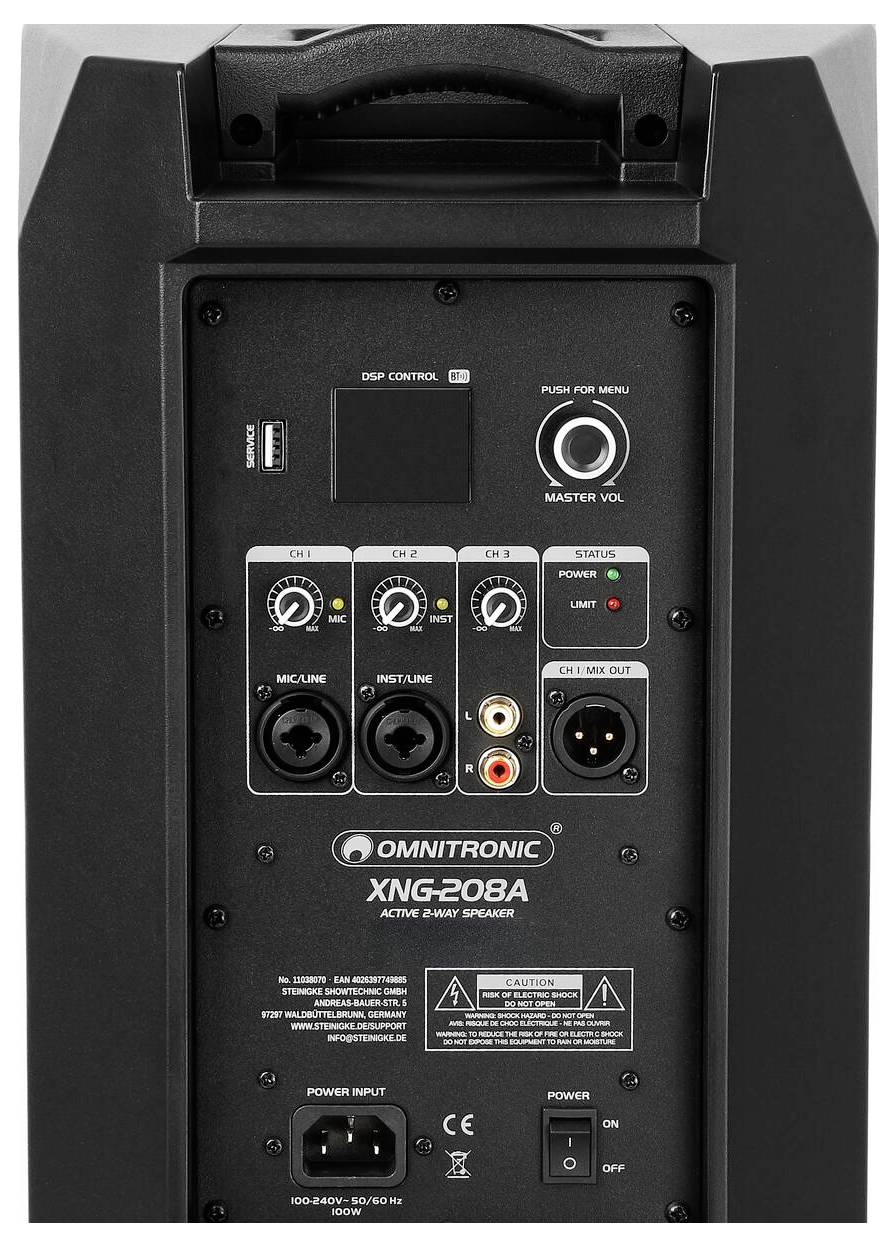

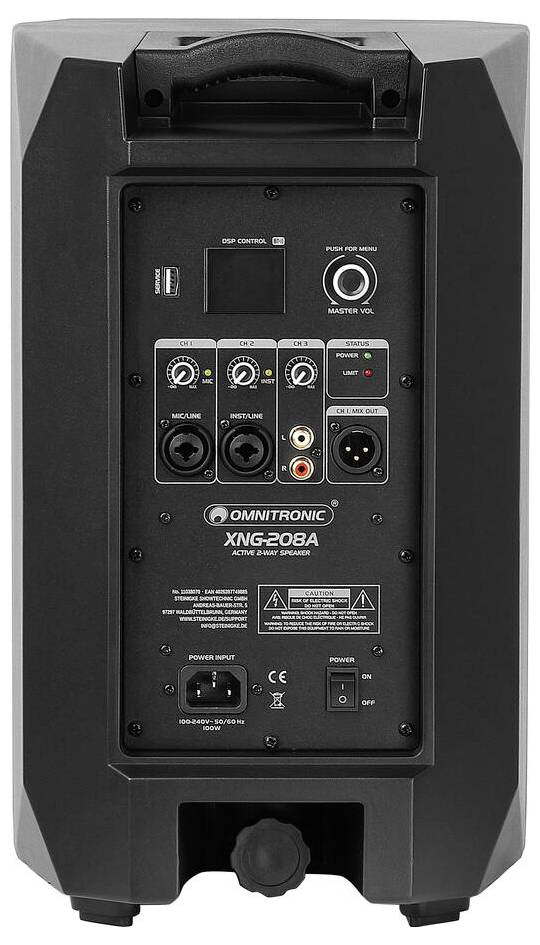

- Connections:
- Input: Mic/line via 1 x 3-pin XLR/6.35-mm jack (W) combo jack bushing
- Input:Line/Hi.Z. via 1 x 3-pin XLR/6.35-mm jack (W) Combi-bushing, built-in version
- Input line via 1 x stereo cinch
- Output:Line via 1 x 3-pin XLR (M) Installation version
- Speakers:
- 1 x 8" woofer with ferrite magnet
- Basket material: Steel
- Conus material: Cardboard / paper
- 2" moving coil woofer
- 1" compression driver for tweeter
- 1" moving coil compression driver - high tone
- Speaker type: Compact box
- Bass reflex design
- Carrying handle:1 pieces
- Material: PP polypropylene
- Colour: Black, powder-coated
- Power cable: Cable layout: 3 x 0.75 mm² H05VV-F
- Cable length 1.8 m removable
- Product type
Active PA speaker
- RMS power
250 W
- Max. power
350 W
- Speaker size (inch)
8 inch
- Max. sound pressure
121 dB
- Interfaces
Mic 6.35 mm in
RCA in
XLR in
XLR out
- Dim
(W x H x D) 259 x 432 x 250 mm
- Frequency range
65 - 20000 Hz
- Weight
8500 g
- Content
1 pc(s)
- Width
259 mm
- Height
432 mm
- Depth
250 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729564 Omnitronic XNG-208A Active PA speaker 8 inch 250 W 1 pc(s)
Description

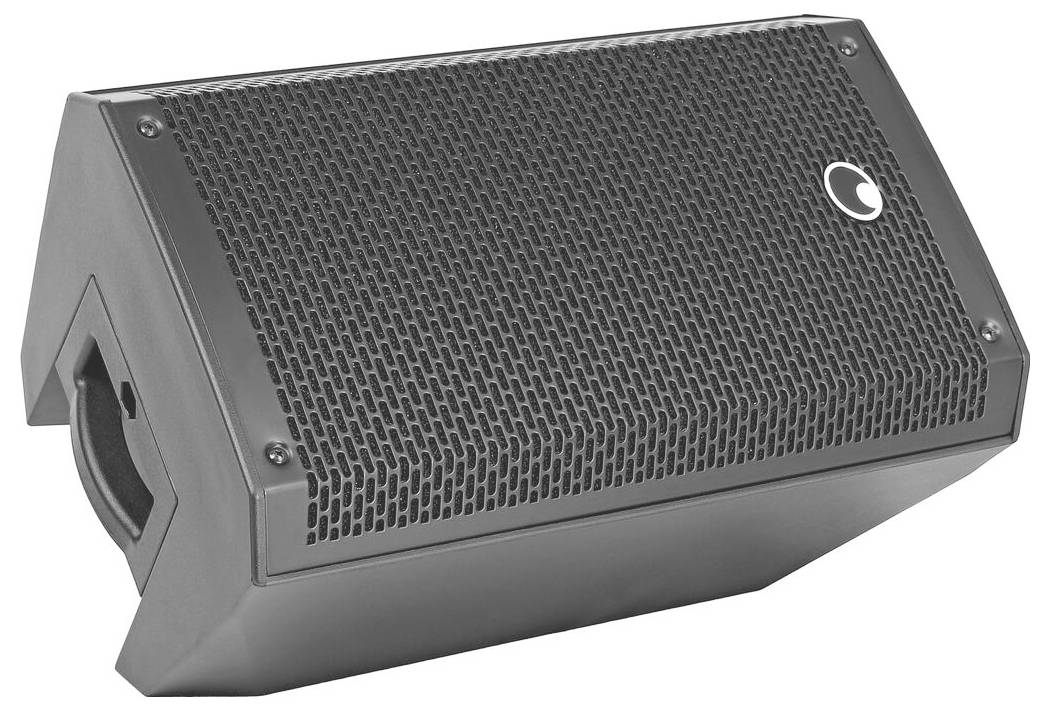

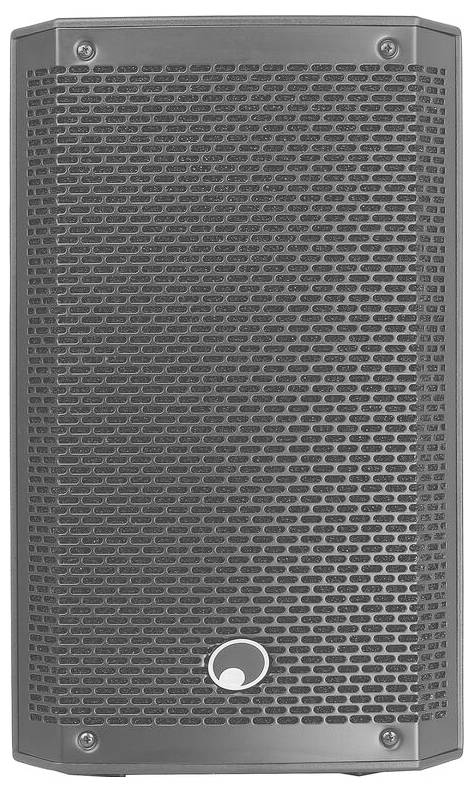

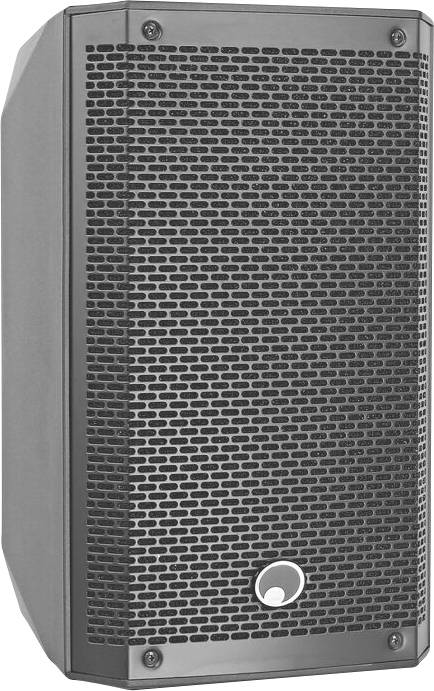

Active speaker with 8" woofer, 1" driver, 350 W RMS. Active PA speaker box for touring applications and fixed installations. DSP-controlled Biamp-amplifier (Class D). Stereo Bluetooth link for wireless stereo operation with 2 linked systems. Digital signal processor, delay, multi-band compressor, multi-step limiter, active phase correction; delay compensation; 3-band EQ. DSP-PRESETS: DEFAULT; LIVE; DANCE; MONITOR; SPEECH. Can be controlled via Bluetooth. Bluetooth: Range of up to 10m indoors. Single-color LCD display Metal grid in black with acoustic foam. Robust handle The device is cooled by passive convection cooling. Possible application: Standing; monitoring; on stand. For applications such as: Mobile use; distributors; sports centers/fitness studios; mobile DJs/solo entertainers.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x user manual
- 1 x compact box
- 1 x Power cable/power cable
- 1 x declaration of conformity.
