Buy Omnitronic XNG-210 Passive PA speaker 10 inch 250 W 1 pc(s)

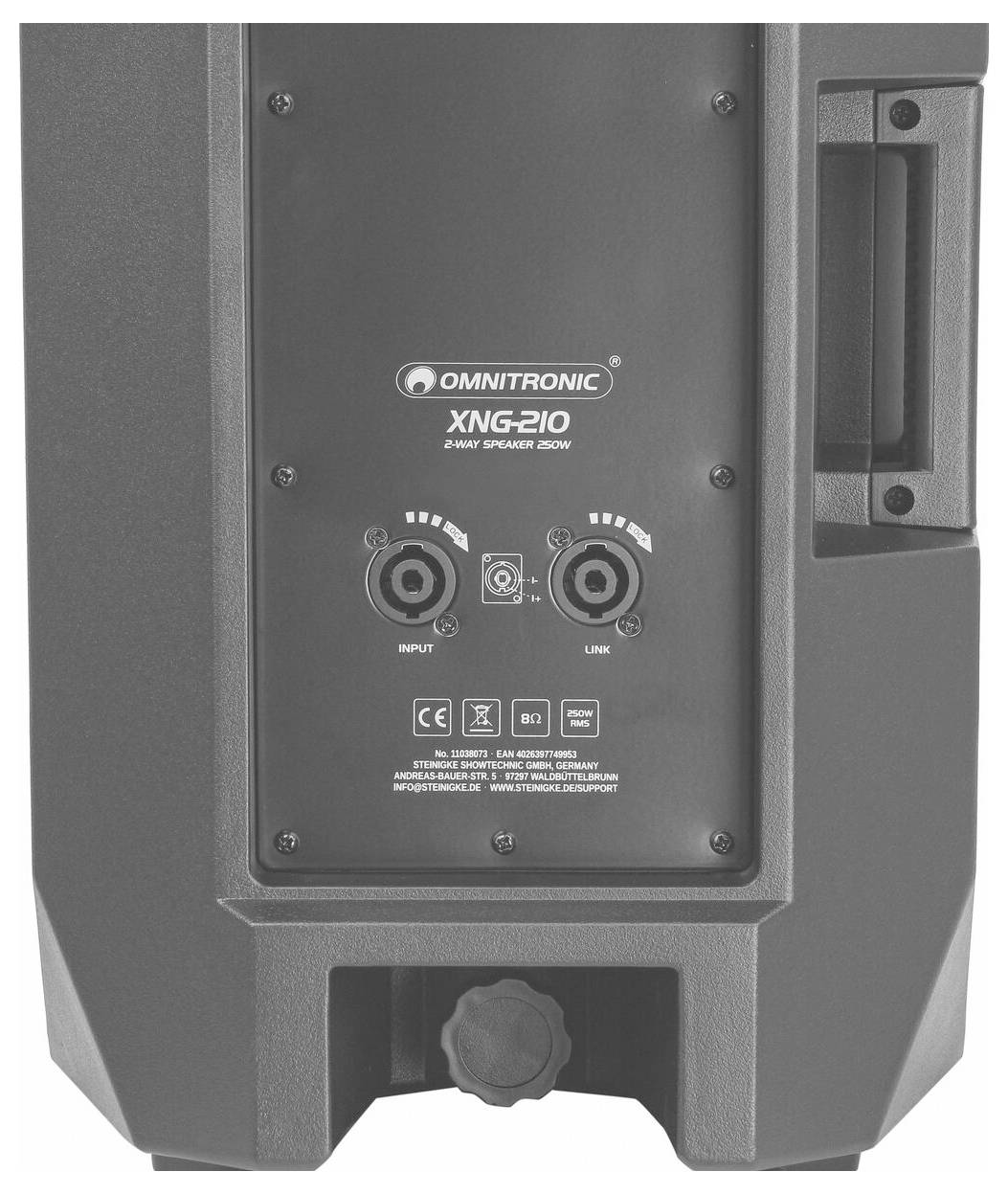

The back panel of a 'OMNITRONIC XNG-210' speaker showing input and link ports, model details, and handle on the right side.

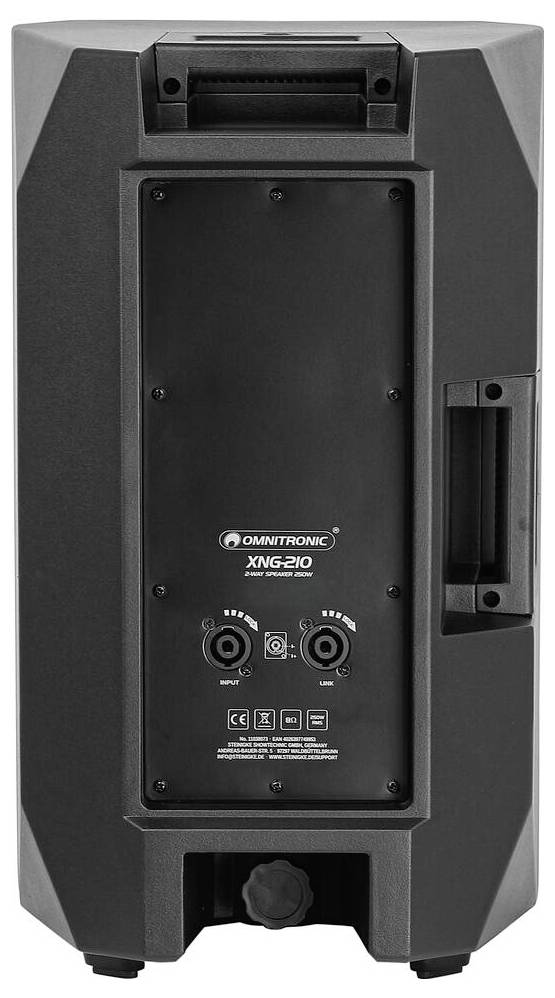

'Omnitronic XMG210' speaker back view with input ports, handle on the right, and power connection at the bottom.

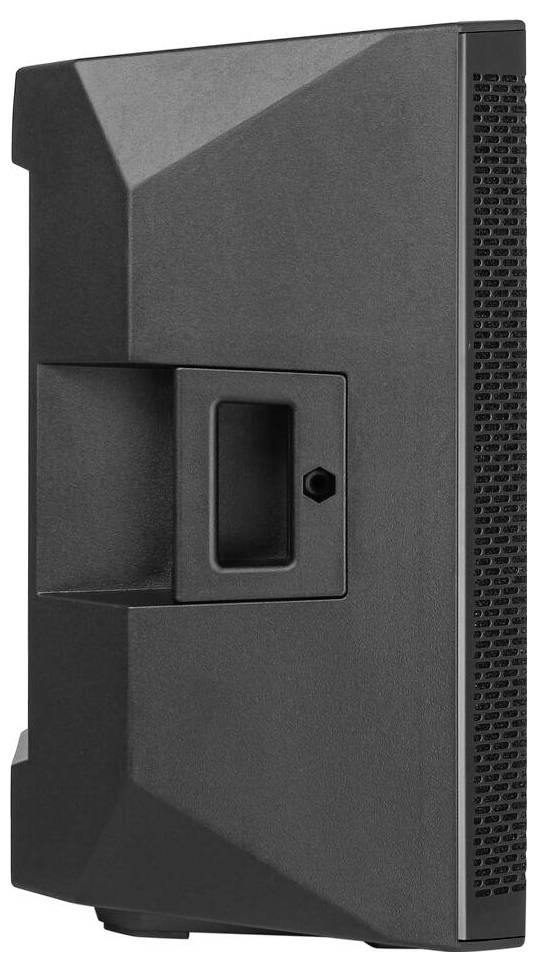

Side view of a black speaker with angular design, carrying handle, and textured grille.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Omnitronic XNG-210 2-way loudspeaker 10 inch

RMS capacity:250 W
Max. load (W):500 W
10 inch
121 dB

Technical specifications

Peak load carrying capacity 500 W; 250 W RMS
Frequency range: 58 - 18000 Hz
Sensitivity 94 dB (1W/1m)
Max. Sound pressure level 121 dB
Emission ratio 90° x 60°
Impedance 8 Ohm
Support system: Flange: Ø 35 mm
Connections:
Input: Speaker via 1 x speaker mounted socket (W)
Link: Speaker via 1 x speaker mounted socket (W)
Separation frequency 2500 Hz
Speakers:
1 x 10" woofer with ferrite magnet
Basket material: Steel
Conus material: Cardboard / paper
2" moving coil woofer with ferrite magnet
1" moving coil compression driver - high tone
1 x 1" compression driver tweeter with ferrite magnet
Speaker type: Compact box
Bass reflex design
Molded carrying handle:1 items
Material: PP polypropylene

Product type: Passive PA speaker

RMS capacity: 250 W

Max. load: 500 W

Speaker size (inch): 10 inch

Features: Can be used as a stage monitor

Interfaces: Speakon socket

Impedance: 8 Ω

Max. sound pressure: 121 dB

Frequency range: 58 - 18000 Hz

Dim: (W x H x D) 300 x 518 x 286 mm

Weight: 9200 g

Content: 1 pc(s)

Width: 300 mm

Height: 518 mm

Depth: 286 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729567 Omnitronic XNG-210 Passive PA speaker 10 inch 250 W 1 pc(s)

Description

Passive box with 10" woofer, 1" driver and 250 W RMS. Metal grid in black with acoustic foam. Dimple Possible application: Standing; monitoring; on stand. For applications such as: Mobile use; distributors; sports centers/fitness studios; mobile DJs/solo entertainers.

This text is machine translated.
