Buy Omnitronic XNG-212 Passive PA speaker 12 inch 300 W 1 pc(s)

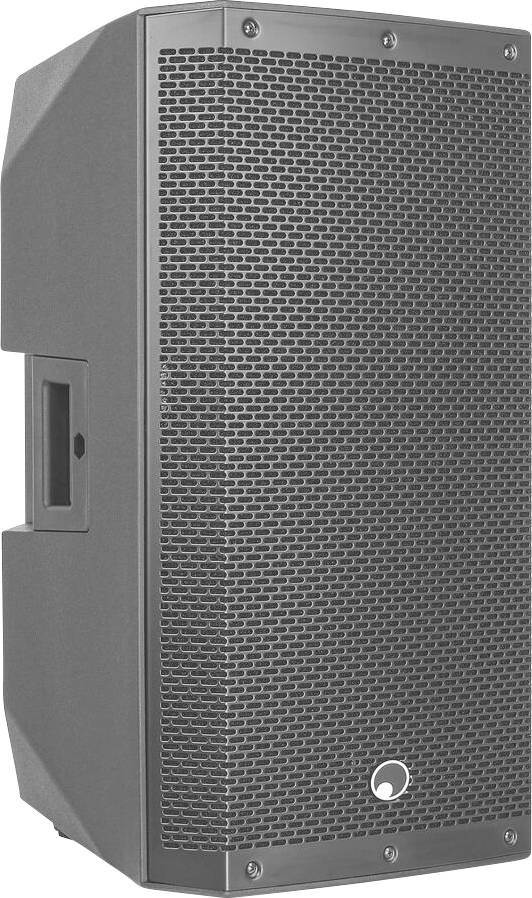

A black, rectangular, professional audio speaker with a metal grille on the front and a handle on the side is shown.

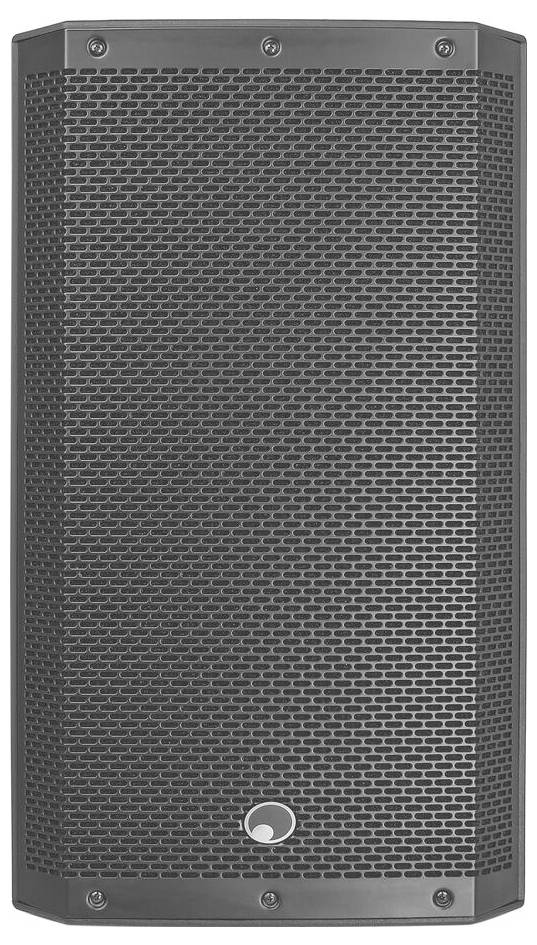

A black rectangular speaker with a metal grille and rounded corners, designed for audio amplification, suitable for indoor or outdoor use.

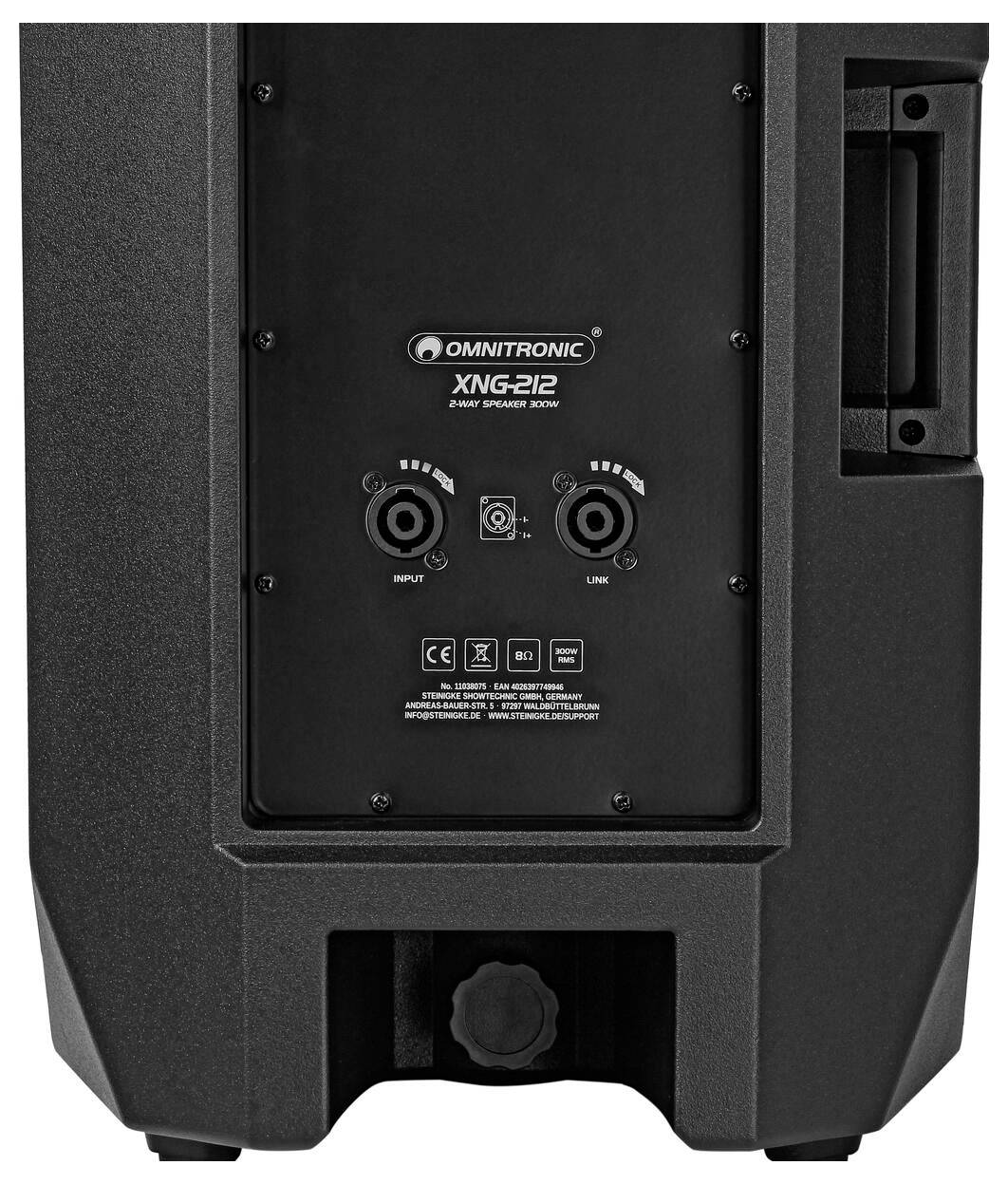

The back panel of a black Omnitronic XMG-12 speaker with input and link ports, control buttons, and handle on the right side.

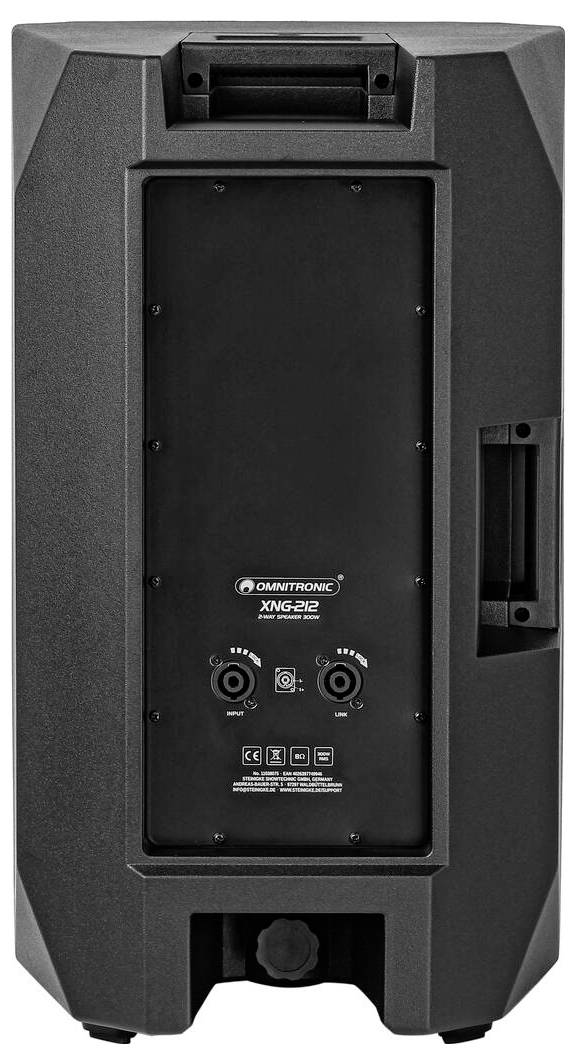

'Omnitronic XMG-212' speaker back panel showcasing connection ports and handles for easy transport.

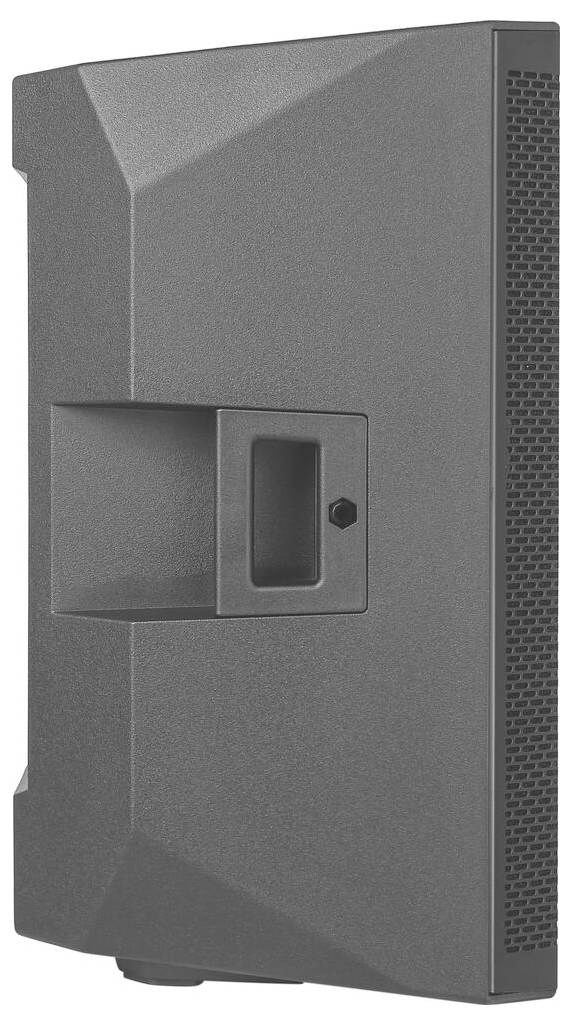

A gray, rectangular speaker viewed from the side, showing a handle and a hexagonal textured surface with ventilation openings.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Omnitronic XNG-212 2-way loudspeaker 12 inch

RMS capacity:300 W
Max. load (W):600 W
12 inch
123 dB

Technical specifications

Peak load carrying capacity 600 W; 300 W RMS
Frequency range 50 18000 Hz
Sensitivity 95 dB (1W/1m)
Max. Sound pressure level 123 dB
Emission ratio 90° x 60°
Impedance 8 Ohm
Support system: Flange: Ø 35 mm
Connections:
Input: Speaker via 1 x speaker mounted socket (W)
Link: Speaker via 1 x speaker mounted socket (W)
Separation frequency 1800 Hz
Speakers:
1 x 12" woofer with ferrite magnet
Basket material: Steel
Conus material: Cardboard / paper
2.5" moving coil woofer with ferrite magnet
1 x 1" compression driver tweeter with ferrite magnet
1.35" moving coil compression driver - high tone
Speaker type: Compact box
Bass reflex design
Molded carrying handle:2 items
Material: PP polypropylene
Colour: Black, powder-coated

Product type: Passive PA speaker

RMS capacity: 300 W

Max. load: 600 W

Speaker size (inch): 12 inch

Features: Can be used as a stage monitor

Interfaces: Speakon socket

Impedance: 8 Ω

Max. sound pressure: 123 dB

Frequency range: 50 - 18000 Hz

Dim: (W x H x D) 355 x 618 x 345 mm

Weight: 14000 g

Content: 1 pc(s)

Width: 355 mm

Height: 618 mm

Depth: 345 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729569 Omnitronic XNG-212 Passive PA speaker 12 inch 300 W 1 pc(s)

Description

Passive box with 12" woofer, 1" driver and 300 W RMS. Metal grid in black with acoustic foam. 2 container carry handles. Possible application: Standing; monitoring; on stand. For applications such as: Mobile use; distributors; sports centers/fitness studios; mobile DJs/solo entertainers.

This text is machine translated.
