Buy Omnitronic XNG-215 Passive PA speaker 15 inch 350 W 1 pc(s)

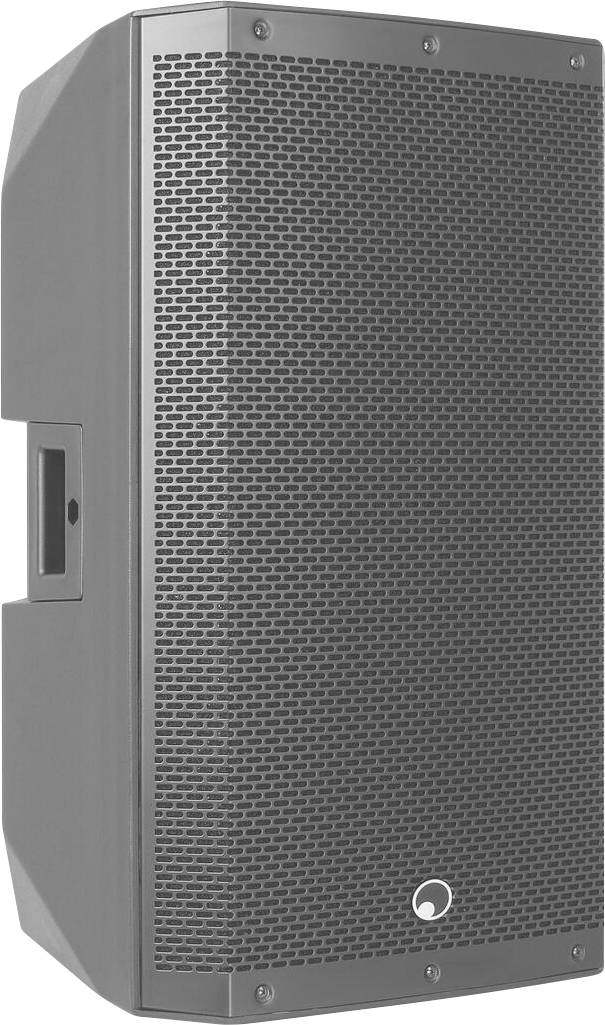

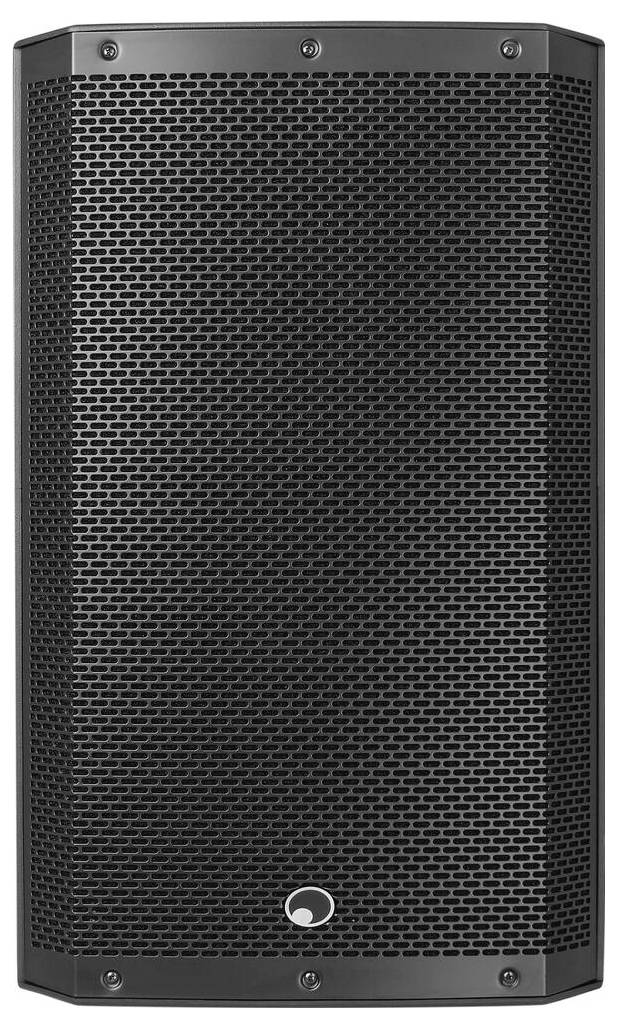

A black speaker with a mesh front cover, designed for audio amplification in various settings.

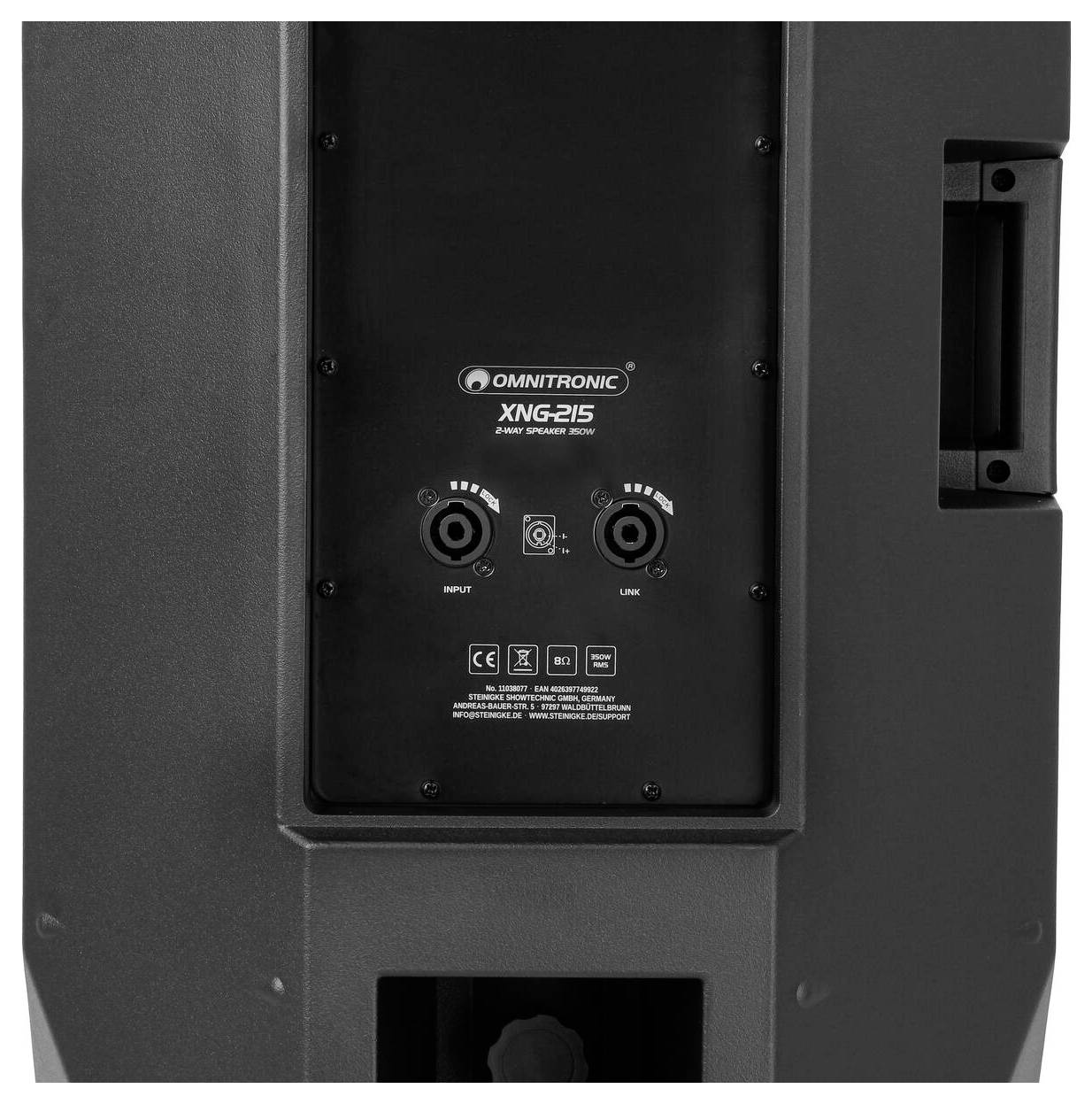

Back panel of a speaker, featuring input and link ports, labeled 'Omnitronic XMG/215.'

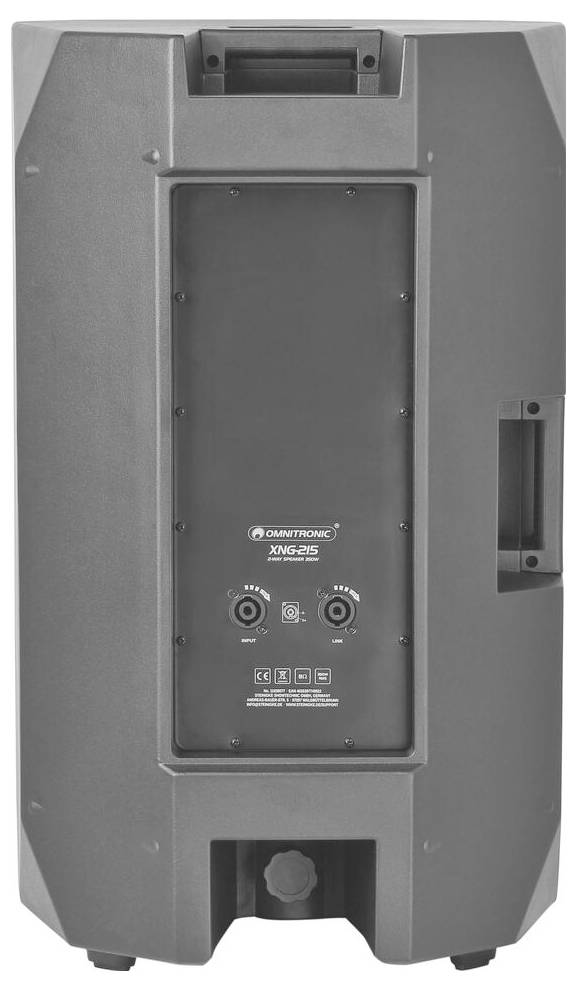

A black speaker cabinet with control knobs and input ports on the back panel, labeled 'Omnitronic XMS-215'.

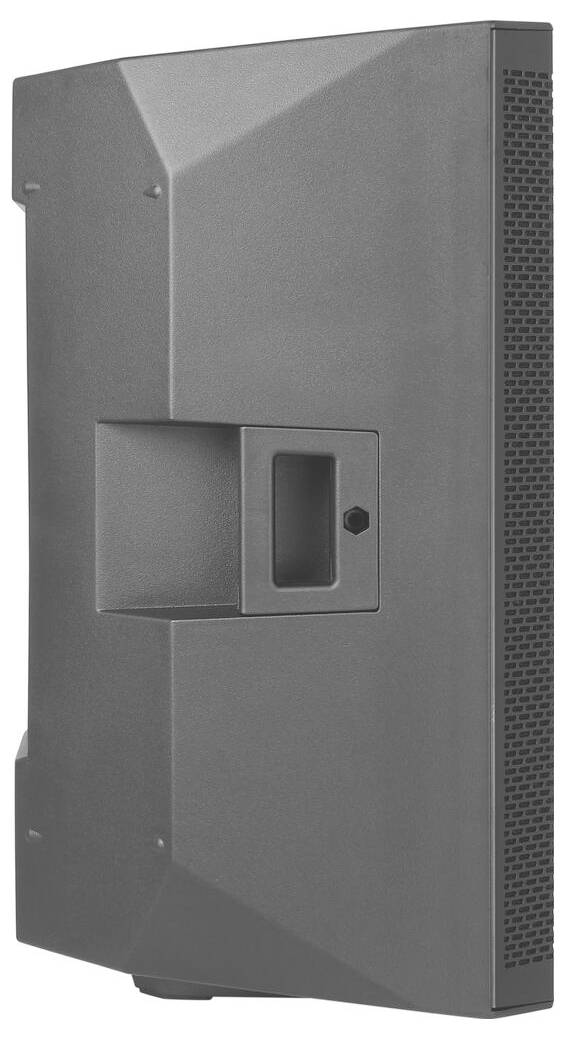

The image shows the side view of a rectangular speaker with a handle in the center, featuring a faceted design and vented grille.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Omnitronic XNG-215 2-way loudspeaker 15 inch

RMS capacity:350 W
Max. load (W):700 W
15 inch
125 dB

Technical specifications

Peak load carrying capacity 700 W; 350 W RMS
Frequency range 48 18000 Hz
Sensitivity 96 dB (1W/1m)
Max. acoustic pressure 125 dB
Emission ratio 90° x 60°
Impedance 8 Ohm
Support system: Flange: Ø 35 mm
Connections:
Input: Speaker via 1 x speaker mounted socket (W)
Link: Speaker via 1 x speaker mounted socket (W)
Separation frequency 1800 Hz
Speakers:
1 x 15" woofer with ferrite magnet
Basket material: Steel
Conus material: Cardboard / paper
3" moving coil woofer with ferrite magnet
1 x 1" compression driver tweeter with ferrite magnet
1.75" moving coil compression driver - high tone
Speaker type: Compact box
Bass reflex design
Molded carrying handle:2 items
Material: PP polypropylene
Colour: Black, powder-coated

Product type: Passive PA speaker

RMS capacity: 350 W

Max. load: 700 W

Speaker size (inch): 15 inch

Impedance: 8 Ω

Max. sound pressure: 125 dB

Frequency range: 48 - 18000 Hz

Dim: (W x H x D) 420 x 695 x 382 mm

Weight: 18400 g

Content: 1 pc(s)

Width: 420 mm

Height: 695 mm

Depth: 382 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729571 Omnitronic XNG-215 Passive PA speaker 15 inch 350 W 1 pc(s)

Description

Passive box with 15" woofer, 1" driver and 350 W RMS. Metal grid in black with acoustic foam. 2 container carry handles. Possible application: Standing; monitoring; on stand. For applications such as: Mobile use; distributors; sports centers/fitness studios; mobile DJs/solo entertainers.
