Omnitronic XPA-1000 MK2 Stereo headstage RMS power per channel (at 4 Ohm): 500 W
EAN:
Part number:
Item no:
Technical specifications
- Power supply 230 V AC 50 Hz
- Total connected wattage 710 W 1/8 Power
- Protection class: IP20
- Protection class SK I
- Output power:2 x 500 W RMS (4 ohm); 2 x 300 W RMS (8 ohm); 1000 W RMS bridged (8 ohm)
- Power connection: Current feed via cold device (M) Installation version Power connection cable with safety plug included
- Device fuse 5 x 20 mm, F 8 A fuse to be replaced in service
- Frequency range: 20 - 20 000 Hz
- Signal-to-noise ratio 95 dB
- Distortion factor: Less than 0.05 % at 1 kHz
- Cooling: 2 x fans temperature-controlled, air flow front to rear
- Impedance: Input: 10 kOhm, unbalanced; Input: 20 kOhm, balanced
- Housing colour black.
- Circuit:Class AB
- Rise time 20 V/µs
- Attenuation factor 200

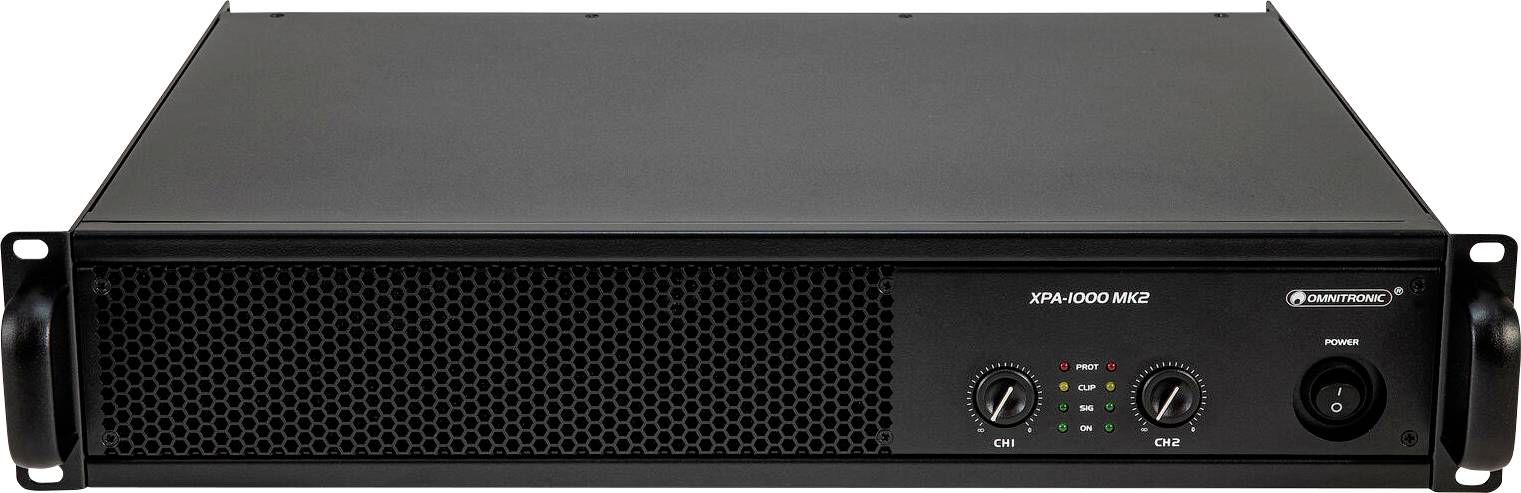

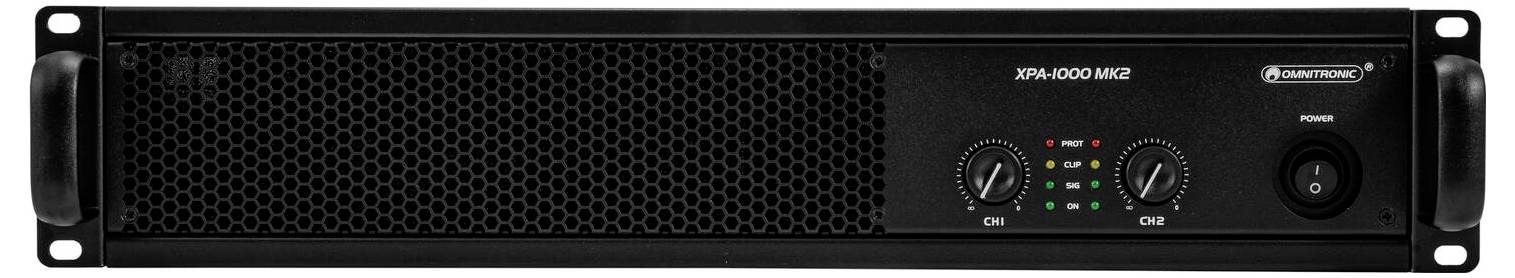

- Controls: Power switch, volume control per channel, operation selector switch (stereo/parallel/bridged)
- Protective circuit: Soft start, DC voltage, VHF, short circuit, limiter; Overheating
- Status LED: Power, signal, clip, protect

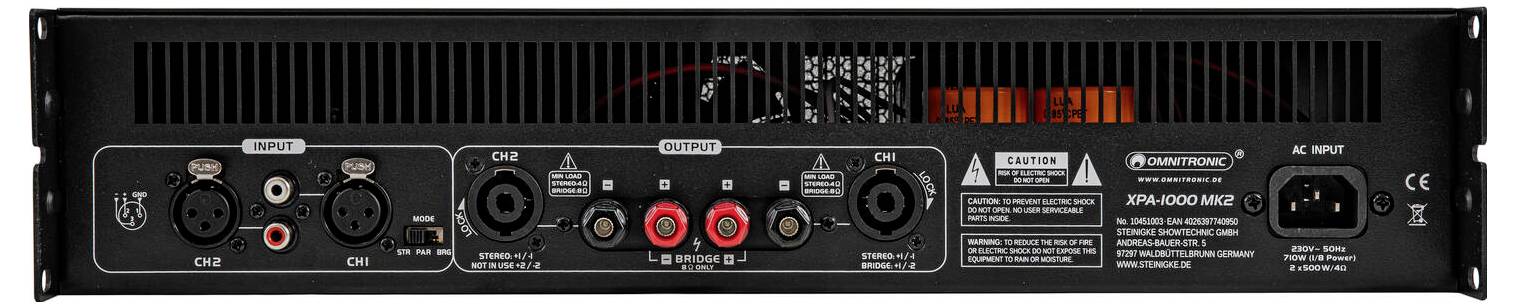

- Connections:
- Input: Line via 2 x 3-pin XLR (W) installtion version;
- Input: Line via stereo cinch;
- Output: Speaker via 2 x speaker mounted socket (W);
- Output: Speaker via screw terminal
- Input sensitivity: 1 V.
- Housing design (19") 48.3 cm rack mounting possible 2 HE
- Mounting depth: 33.2 cm
- Dimensions: Width: 48.3 cm; depth: 36.8 cm; height: 8.8 cm
- Product type
Stereo headstage
- Power per channel (4Ω)
500 W
- Power per channel (8Ω)
300 W
- Max. frequency
20000 Hz
- Min. frequency
20 Hz
- Interfaces
XLR in
RCA in
- Weight
10400 g
- Width
483 mm
- Height
88 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729544 Omnitronic XPA-1000 MK2 Stereo headstage RMS power per channel (at 4 Ohm): 500 W
Description

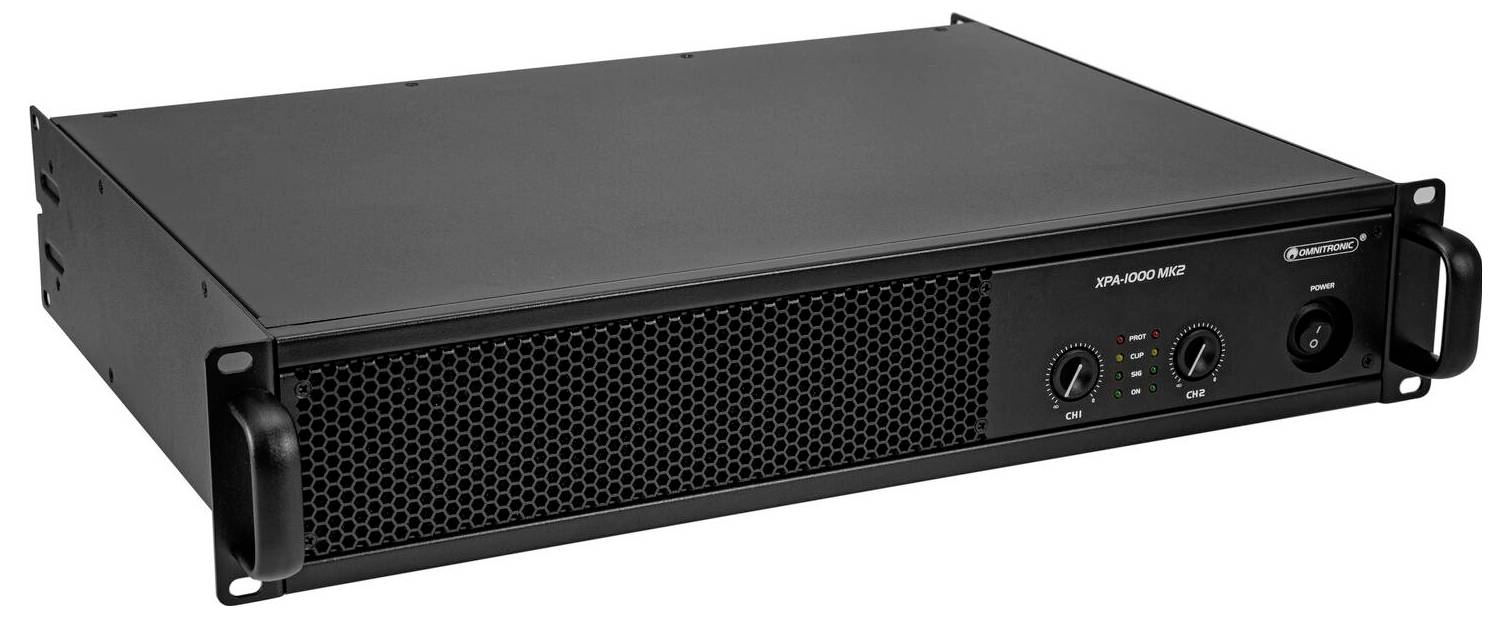

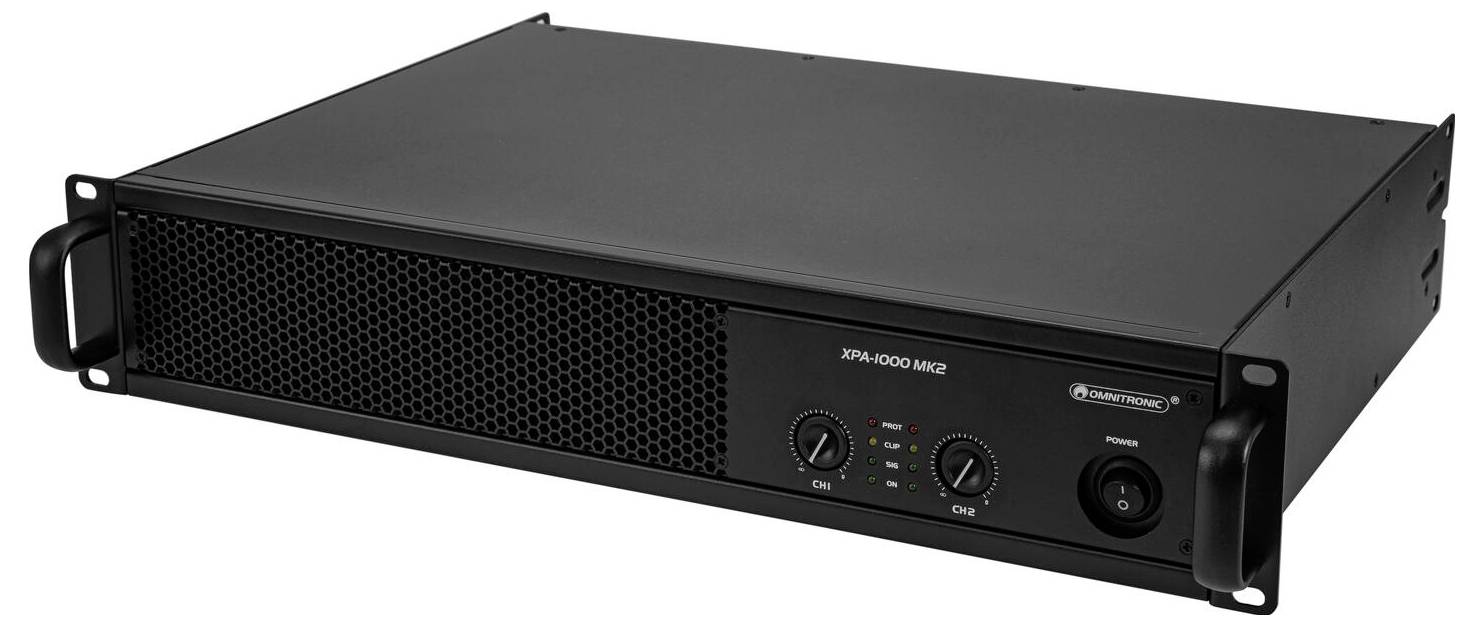

Class FROM stereo PA amplifier with limiter, 2 x 500 W RMS (4 ohms), 2 x 300 W RMS (8 ohms). 2 level controls Signal inputs via XLR and cinch sockets. Loudspeaker outputs via locking speaker sockets and screw-clamp pairs. Class-AB architecture. (19") 48.3 cm rack installation possible 2 HE. Highly efficient air flow front to rear. The device is cooled by a temperature controlled fan.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x amplifier
- 1 x Power cable/power cable
- 1x user manual
- 4 x Base.
