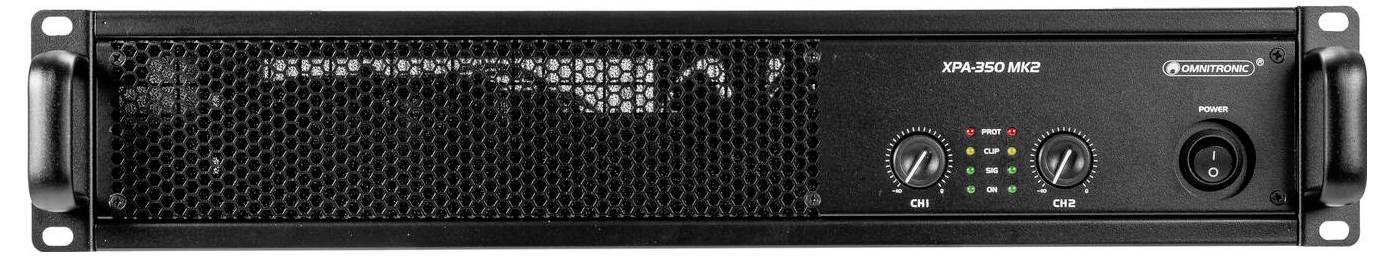

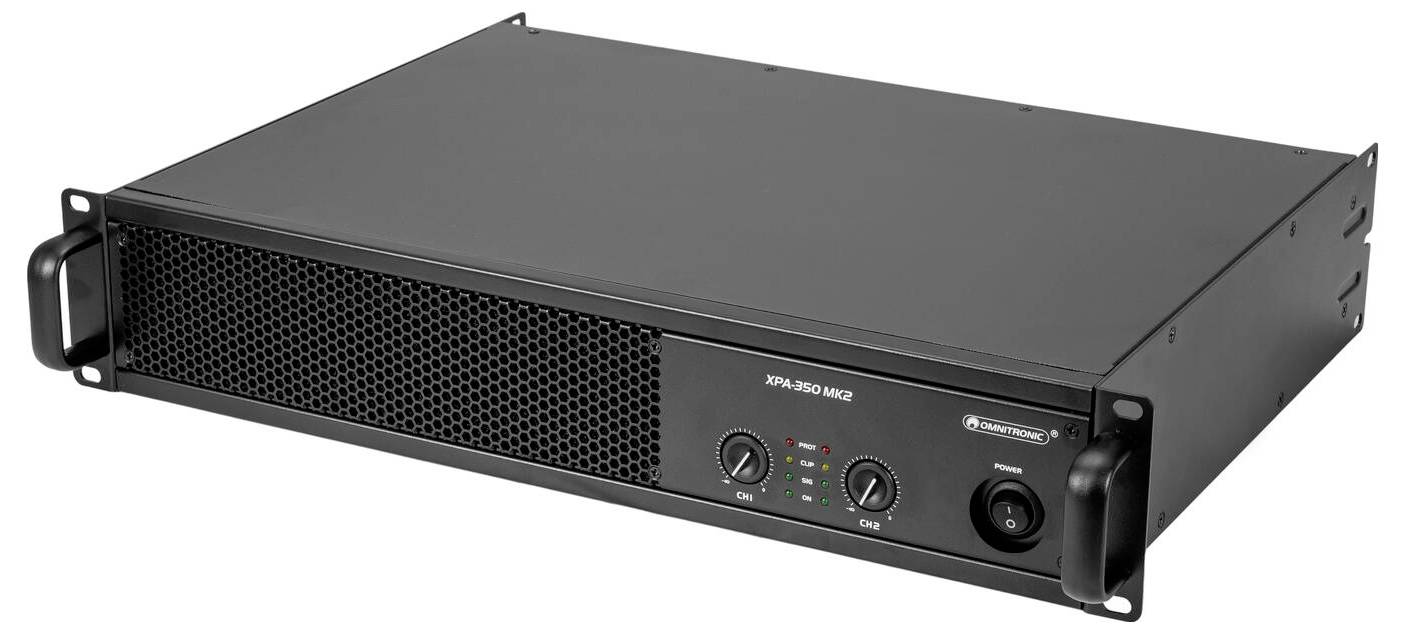

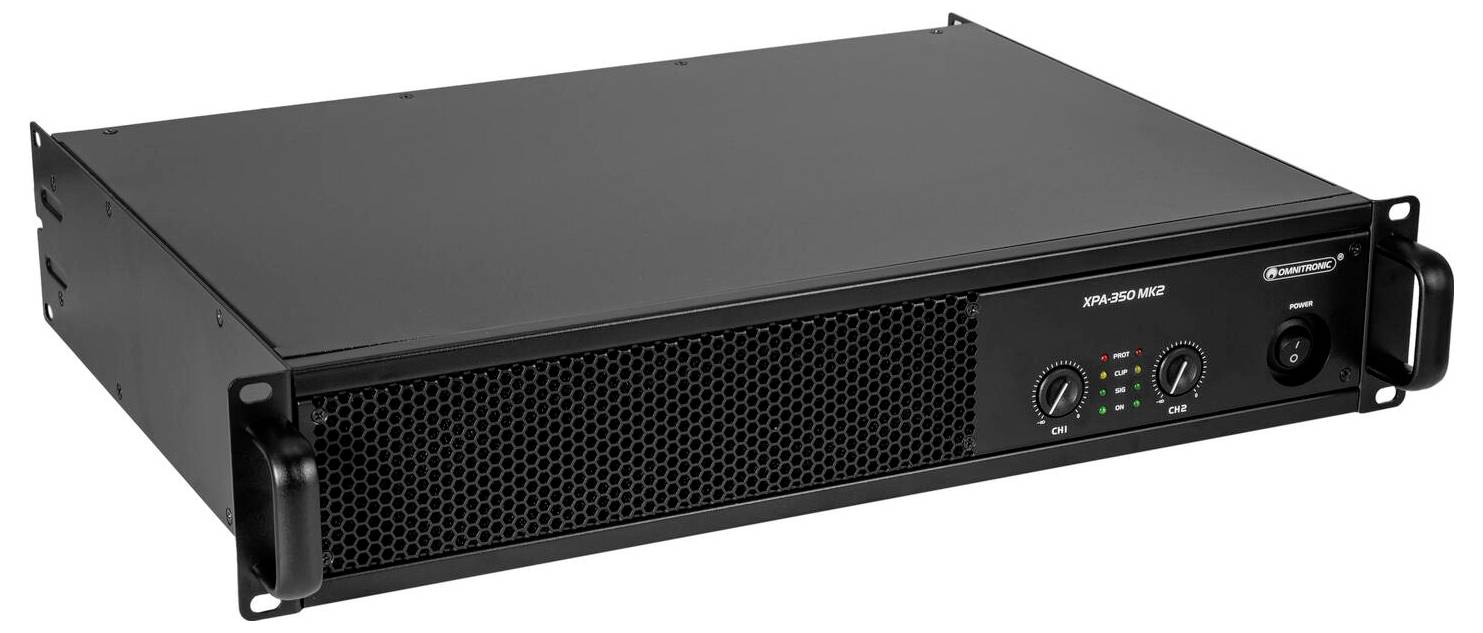

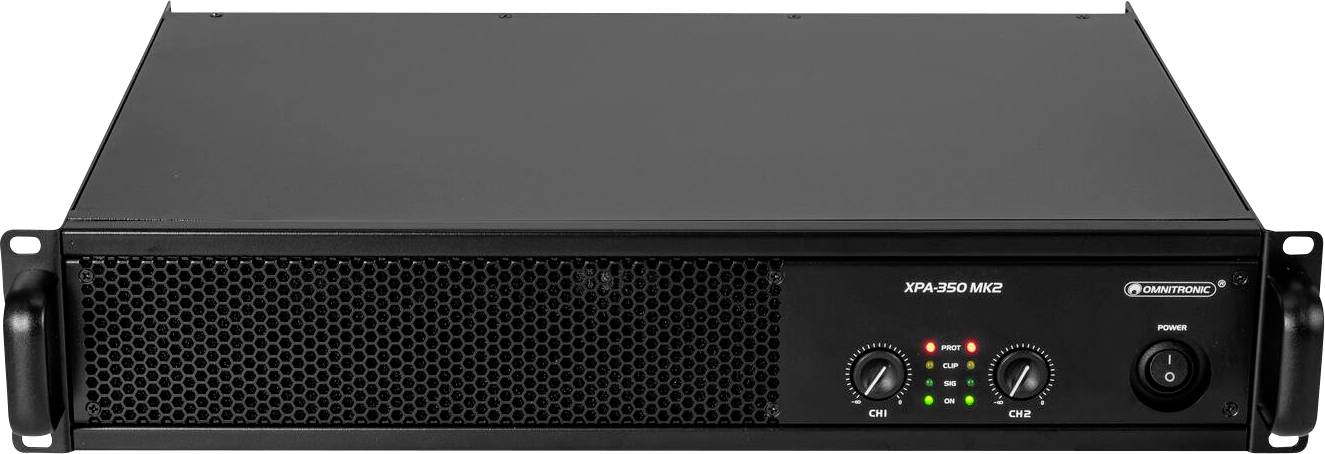

Omnitronic XPA-350 MK2 Stereo headstage RMS power per channel (at 4 Ohm): 175 W
EAN:
Part number:
Item no:
Technical specifications
- Power supply 230 V AC 50 Hz
- Total connected wattage 245 W 1/8 Power
- Protection class SK I
- Output power:2 x 175 W RMS (4 ohm); 2 x 130 W RMS (8 ohm); 350 W RMS bridged (8 ohm)
- Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
- Cable length 1 m removable
- Fuse: 5 x 20 mm, T 3.15 A fuse to be replaced in service
- Frequency range: 20 - 20 000 Hz
- Signal-to-noise ratio 95 dB
- Distortion factor: Less than 0.5 % at 1 kHz
- Cooling: 2 x fans temperature controlled , air flow front to rear
- Impedance: Input: 20 kOhms , balanced; Input: 10 kOhms , unbalanced. Gain 30 dB/1 V
- Housing colour black.
- Circuit:Class AB
- Rise time 20 V/µs
- Attenuation factor 200
- Controls: Power switch, volume control per channel, operation selector switch (stereo/parallel/bridged)
- Protective circuit: Short circuit; overheating; direct voltage; soft start; switch-on transients; VHF; current limit; limiter
- Status LED: Power, signal, clip, protect

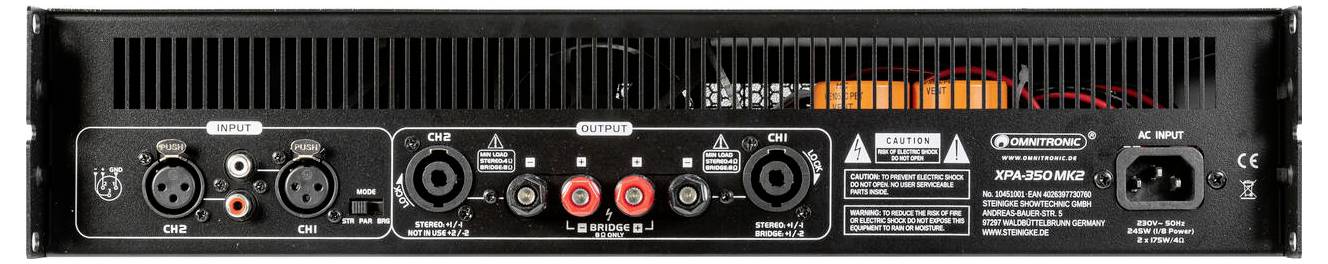

- Connections:
- Input: Line via 2 x 3-pin XLR;
- Input: Line via stereo cinch;
- Output: Speaker via 2 x speaker mounted socket (W);
- Output: Speaker via screw terminal;
- Output: Speaker (bridge) via 1 x speaker-mounted socket (W);
- Output: Speaker (bridge) via screw terminal
- Input sensitivity: 1 V.
- Housing design (19") 48.3 cm Rack installation 2 HE
- Dimensions: Width: 48.3 cm; depth: 36.8 cm; height: 9.1 cm
- Product type
Stereo headstage
- Power per channel (4Ω)
175 W
- Power per channel (8Ω)
130 W
- Max. frequency
20000 Hz
- Min. frequency
20 Hz
- Interfaces
XLR in
RCA in
- Weight
7650 g
- Width
483 mm
- Height
91 mm
- UKCA
yes
Description
Class FROM stereo PA amplifier with limiter, 2 x 175 W RMS (4 ohms), 2 x 130 W RMS (8 ohms). 2 level controls Signal inputs via XLR and cinch sockets. Loudspeaker outputs via locking speaker sockets and screw-clamp pairs. Class-AB architecture. (19") 48.3 cm rack installation 2 HE. Highly efficient air flow front to rear. The device is cooled by a temperature controlled fan. For application areas such as: Clubs/dance schools; installation; mobile use; mobile DJs/solo entertainers; restaurants, bars and hotels; distributors; sports centers/fitness studios; Belt/rehearsal room.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x amplifier
- 1 x Power cable/power cable
- 4 x Base
- 1 x Operating manual
