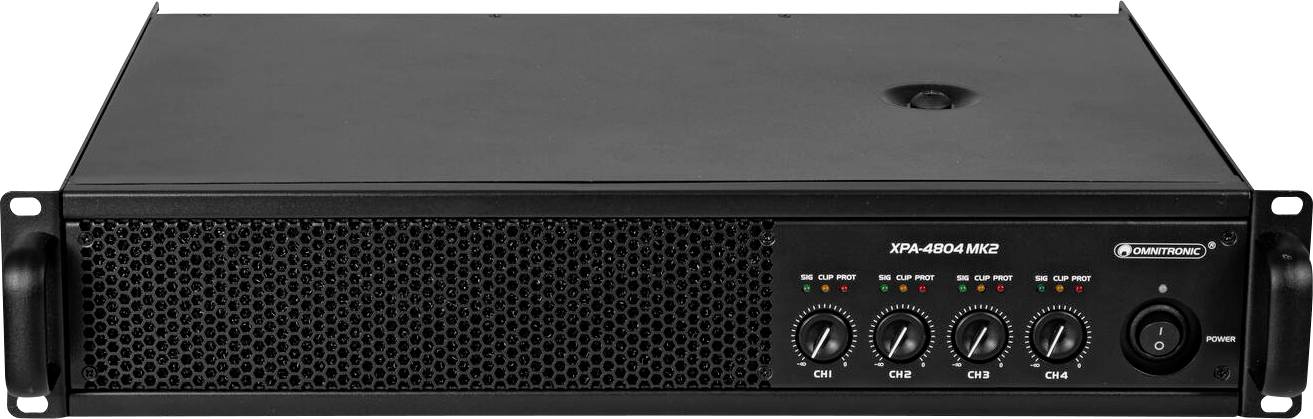

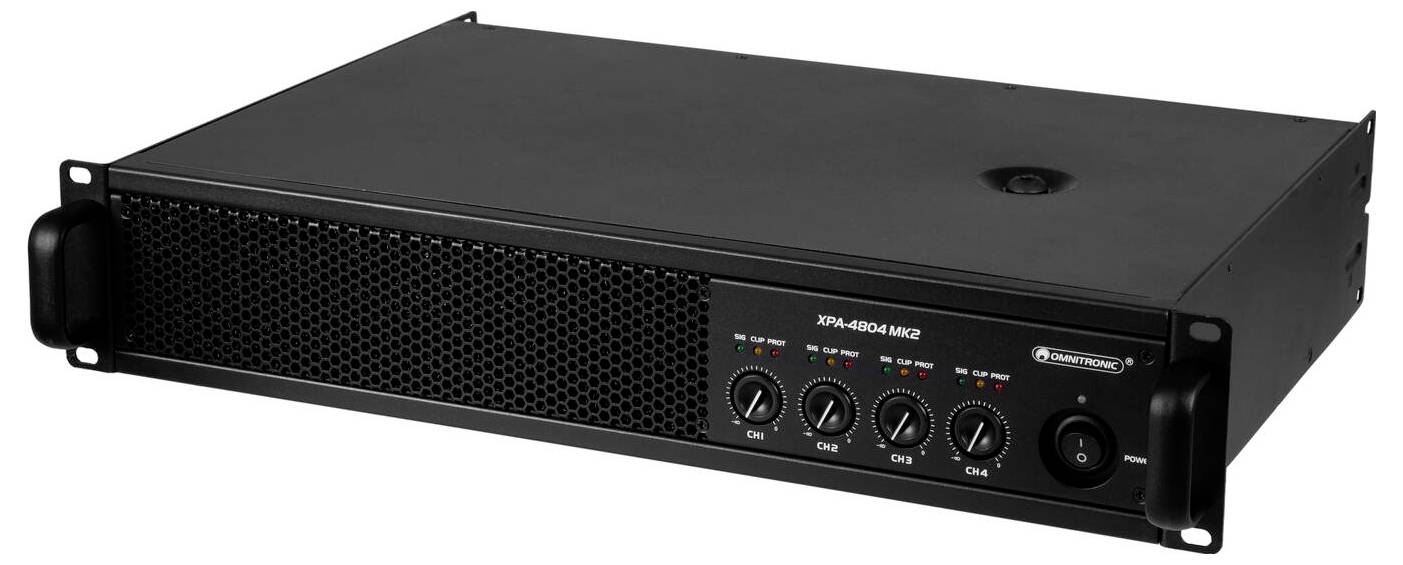

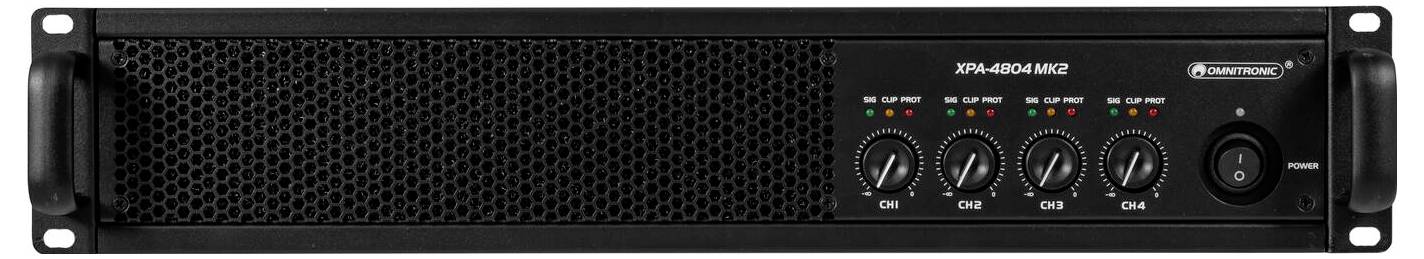

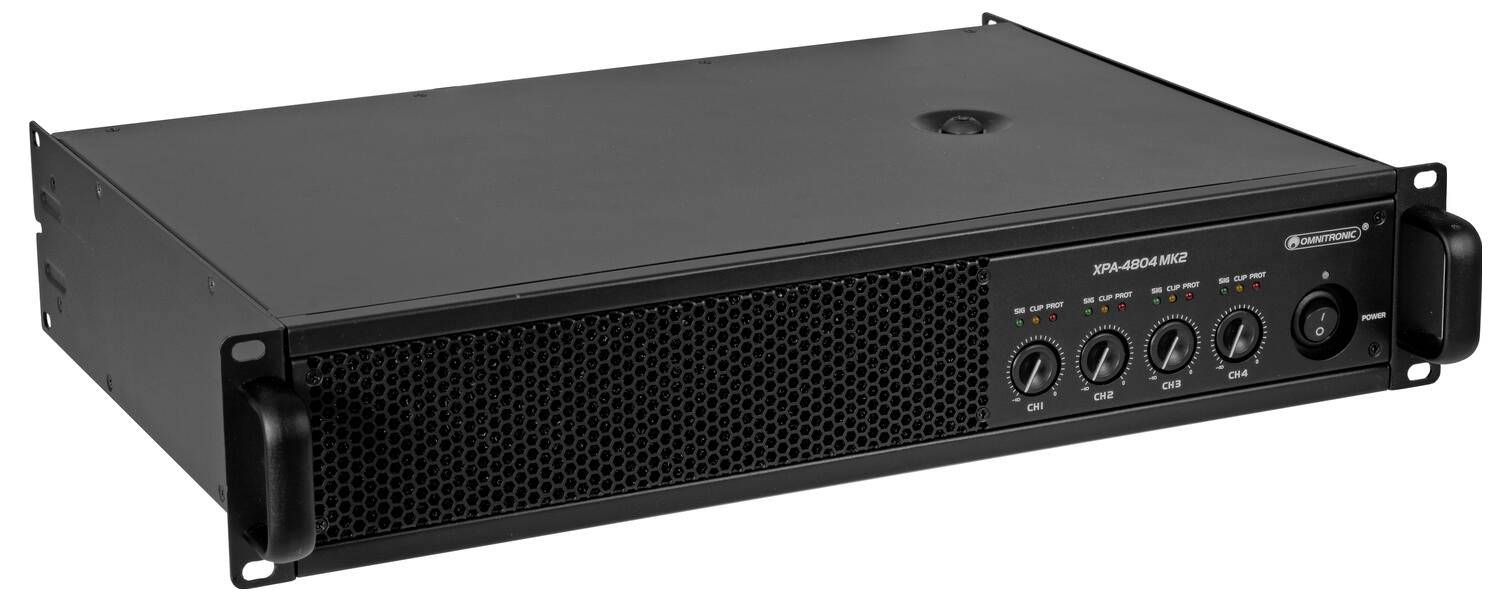

Omnitronic XPA-4804 MK2 PA amplifier RMS power per channel (at 4 Ohm): 1200 W
EAN:
Part number:
Item no:
Technical specifications
- Power supply 230 V AC 50 Hz
- Total connected wattage 1380 W 1/8 Power
- Protection class SK I
- Output power:4 x 1800 W RMS (2 ohm); 4 x 1200 W RMS (4 ohm); 4 x 800 W RMS (8 ohm); 2 x 2500 W RMS bridged (4 ohm); 2 x 2400 W RMS (8 ohm)
- Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
- Frequency range: 20 - 20 000 Hz
- Signal-to-noise ratio 102 dB
- Distortion factor: Less than 0.1 % at 1 kHz
- Cooling:2 x fans, air flow front to rear
- Impedance: Input: 20 kOhm, balanced; Input: 10 kOhm, unbalanced
- Gain 40 dB/ 0.775 V; 38 dB/ 1 V; 32 dB/ 2 V
- Housing colour black.
- Class D switching
- Rise time 30 V/µs
- Attenuation factor 500
- Controls: Power switch, volume control per channel, operation selector switch (stereo/parallel/bridged), input sensitivity switch
- Protective circuit: Overheating; overload; short circuit; soft start; DC voltage; VHF; current limit; limiter
- Status LED: Power, signal, clip, protect

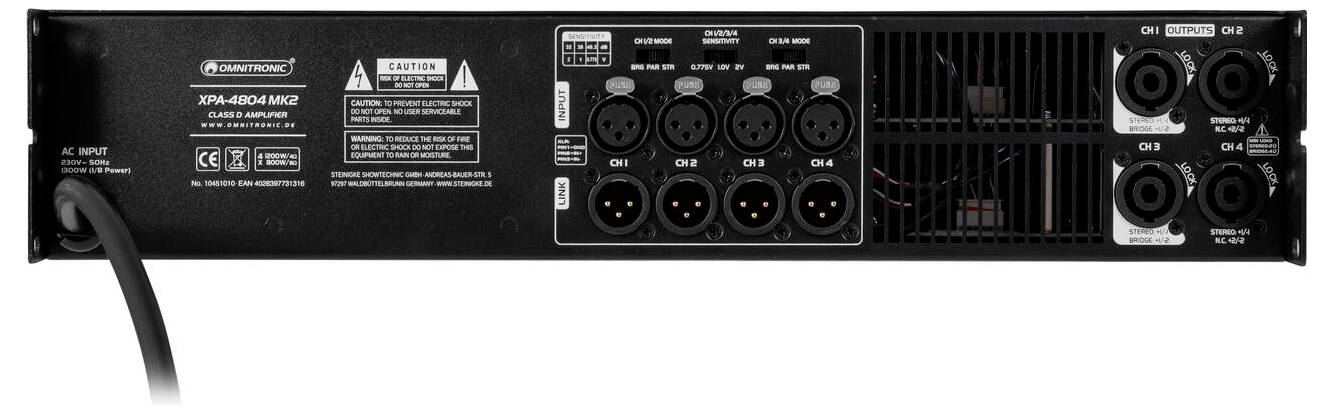

- Connections:
- Input: Line via 4 x 3-pin XLR (W) installtion version;
- Link: Line via 4 x 3-pin XLR (M) installation version;
- Speaker via 4 x speaker mounted sockets (W)
- Input sensitivity 0.775 V; 1 V; 2 V, switchable
- Housing design (19") 48.3 cm Rack installation 2 HE
- Dimensions: Width: 48.3 cm; depth: 33.0 cm; height: 8.8 cm
- Product type
PA amplifier
- Power per channel (2Ω)
1800 W
- Power per channel (4Ω)
1200 W
- Power per channel (8Ω)
800 W
- Max. frequency
20000 Hz
- Min. frequency
20 Hz
- Interfaces
XLR in
- Weight
14200 g
- Width
483 mm
- Height
88 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729545 Omnitronic XPA-4804 MK2 PA amplifier RMS power per channel (at 4 Ohm): 1200 W
Description
Class D stereo PA amplifier with limiter, 4 x 1800 W RMS (2 ohms), 4 x 1200 W RMS (4 ohms). 3 modes can be set (stereo, parallel or bridge). Adjustable input sensitivity. Level control per channel. Electronically balanced inputs via XLR panel jack with XLR pass-through outputs. Loudspeaker outputs via locking speaker sockets. (19") 48.3 cm rack installation 2 HE. Highly efficient air flow front to rear. The device is cooled by a fan. For application areas such as: Clubs/dance schools; installation; mobile use; mobile DJ's/solo entertainer; restaurants, bars and hotels; distributors; sports centers/fitness studios.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x amplifier
- 4 x Base
- 1 x Operating manual
