Omron G6K-2F-Y 5DC SMD relay 5 V DC 1 A 2 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
SMD relay
Coil nominal voltage
5 V DC
Control mode
monostable, 1 coil
Contact type
2 change-overs
Switching voltage (max.)
60 V DC
125 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
5
3% = € 0.09
€ 3.09
10
5% = € 0.15
€ 3.03
50
10% = € 0.31
€ 2.87
100
20% = € 0.63
€ 2.55
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
Highlights & Details
Omron G6K-2F-Y 5DC SMD relay 5 V DC 1 A 2 change-overs 1 pc(s)
- Wide load current range: 10 µA to 1 A
- Low power consumption: min. 100 mW
- Bellcore version (telecommunications) for higher insulation values
- Sealed (RT III)
- UL and CSA approved
- RoHS/WEEE compliant
Technical specifications
- Connections F = SMD bent up
- Sealed
- Meets Bellcore standard with 2500 V impulse test between coil and contact
- Product type
SMD relay
- Type
G6K-2F-Y 5DC
- Coil nominal voltage
5 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
237 Ω
- Contact type
2 change-overs
- Contact material
Ag + Au
- Switching voltage (max.)
60 V DC
125 V AC
- Switching current (max.)
1 A
- Connection
SMD
- Insulation voltage
750 V
- Min. temperature
-40 °C
- Max. temperature
+70 °C

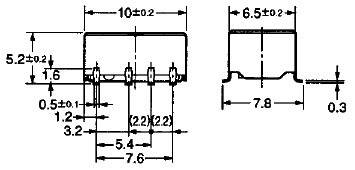

- Length
10 mm
- Width
6.5 mm
- Height
5 mm
- Dim
(L x W x H) 10 x 6.5 x 5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Power consumption
approx. 100 mW
- Nominal voltage (details)
5 V DC
- Switching capacity
max. 37.5 VA/30 W
- Ambient temperature
-40 - +70 °C
Documents & Downloads
Datasheet
Datasheet 503884 Omron G6K-2F-Y 5DC SMD relay 5 V DC 1 A 2 change-overs 1 pc(s)
Description
Dual inline relay with gold-plated twin crossbar contacts, perfect for telecoms and measuring applications.
