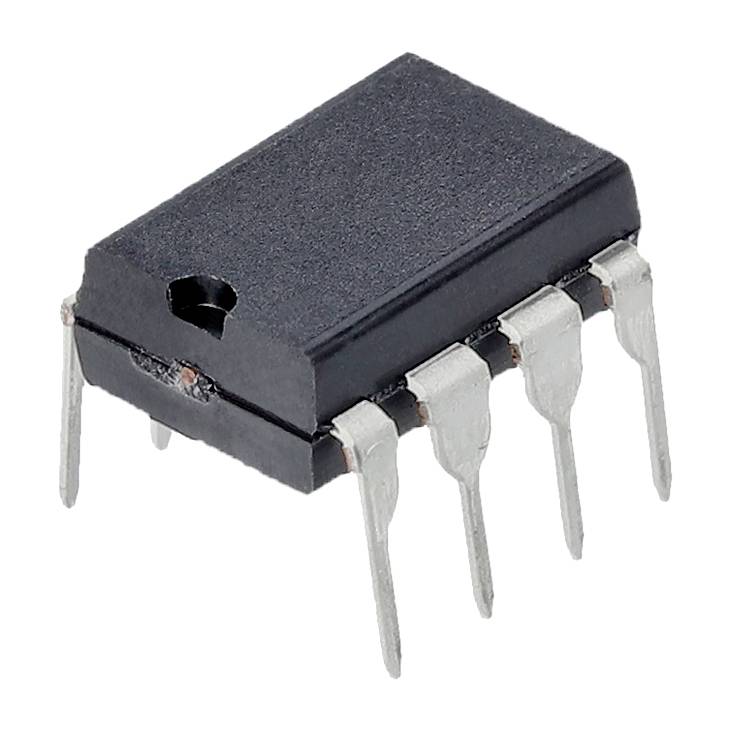

Image similar
Image similar
ON Semiconductor LM2574N-12G Voltage reference DIP 8 Positive Adjustable 0.50 A Tube
EAN:
Part number:
Item no:
Packaging type
Tube
Product type
Voltage reference
Enclosure
DIP 8
Output type
Adjustable
Power output
0.50 A
Datasheet (PDF)
Technical specifications
- Packaging type
Tube
- Type
LM2574N-12G
- Product type
Voltage reference
- Enclosure
DIP 8
- Manufacturer
ON Semiconductor
- Output configuration
Positive
- Output type
Adjustable
- Input voltage (max.)
40 V
- Power output
0.50 A
- Topology
Buck
- No. of outputs
1
- Input voltage (min.)
4.75 V
- Output voltage (max.)
12 V
- Switching frequency (max.)
52 kHz
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+125 °C
- Mounting type
Through-hole
