Online USV X1000R UPS 1000 VA
EAN:
Part number:
Item no:
Datasheet (PDF)

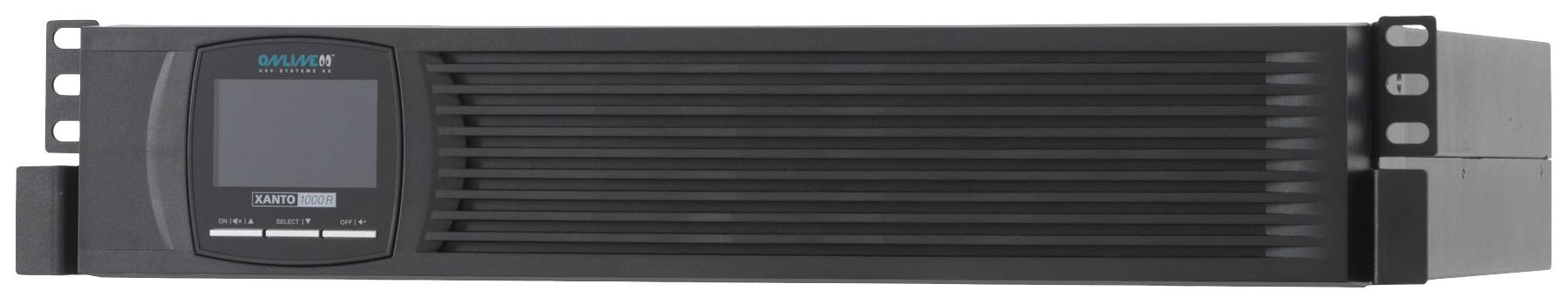

ONLINE UPS XANTO 1000R
Highlights & Details

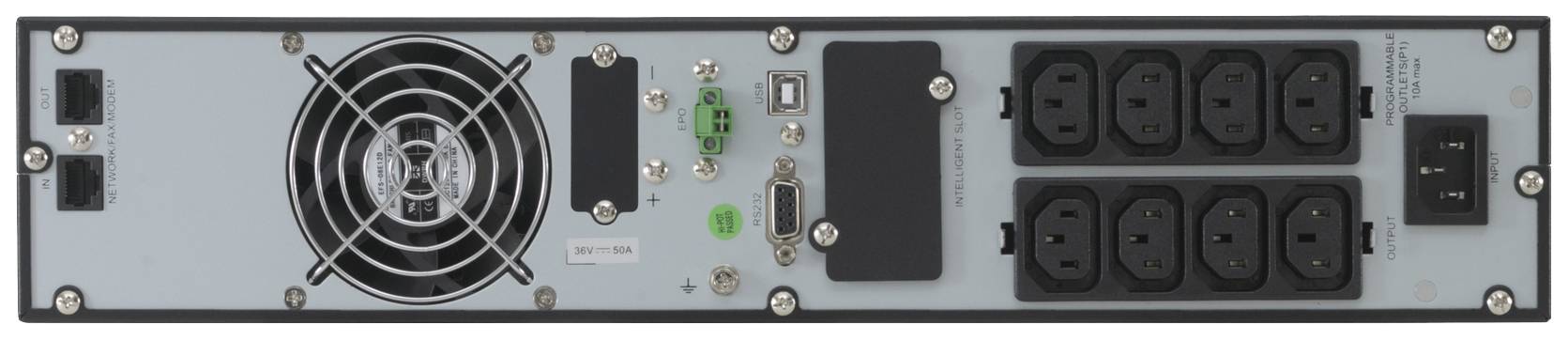

- 1000 VA / 1000 W, 27 minutes bridging timeRack tower combination model, only 2 HEDual-converter technology with the highest safety level VFI-SS-111Path-breaking DYNAMIC Power TECHNOLOGY for more watt97% Efficiency: Low operating costs due to high energy efficiencyPerfect sine output voltageScalable bridging time with additional battery packs 4Automatic bypass in case of overload, e.g. when switching on large loadsFrequency converter operationDeep discharge protection for batteriesCold-start function for starting the UPS system without input voltageRS-232, USB and emergency stop interfaceOvervoltage protection for data and telephone linesSwitchable output sockets for more bridging time of critical consumersSlot for optional SNMP adapter or AS400/relay cardIncludes DataWatch shutdown, management and monitoring software for all operating systems (WIN, LINUX, UNIX, MAC, VMware, Citrix etc.)
Technical specifications
- Product type
UPS
- Nominal power
1000 VA
- No. of outputs
8 x
- with surge protection
8
- Output
IEC C13 socket
- Features
Alarm
LCD
USB port
- Surge protection for
Phone/fax (RJ11)
Mains outlets
- Type
X1000R
- Weight
14.1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2757394 Online USV X1000R UPS 1000 VA
User & Safety Instructions
User & Safety Instructions 2757394 Online USV X1000R UPS 1000 VA
Description
The UPS XANTO series provides maximum protection for server room, data center, and edge data center.
This text is machine translated.
This text is machine translated.
Scope of delivery
- ONLINE UPS XANTO 1000R
- 2 x 19 inch installation angle
- 2x base for tower mounting
- USB-interface cables
- 3x 10 A cold device extension
- Quick start guide.
