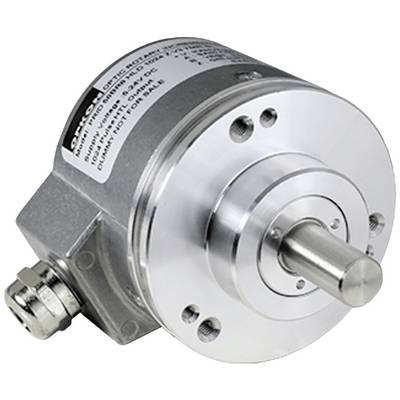

Opkon Incremental Rotary encoder 1 pc(s) MRI-58-A-R10-HLD-256-ZZ-V2-2M5-R Magnetic Clamping flange 58 mm
EAN:
Part number:
Item no:
Product type
Rotary encoder
Model
Incremental
Min. operating voltage
8 V DC
Max. operating voltage
24 V DC
Connector
Cable, open end
Datasheet (PDF)
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Highlights & Details
Opkon MRI-58-a-R10-HLD-256-ZZ-V2-2M5-R incremental magnetic encoder
Our service for you
Technical specifications
- Product type
Rotary encoder
- Type
MRI-58-A-R10-HLD-256-ZZ-V2-2M5-R
- Model
Incremental
- Technology
Magnetic
- Min. operating voltage
8 V DC
- Max. operating voltage
24 V DC
- Operating voltage
8 - 24 V DC
- Connector
Cable, open end
- Cable length
2.50 m
- Orientation (connectors)
Radial
- Sleeve type
Clamping flange
- Flange diameter
58 mm
- Shaft type
Solid shaft
- Shaft Ø
10 mm
- Material (shaft)
Stainless steel
- Enclosure material
Aluminium
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP54
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2985525 Opkon Incremental Rotary encoder 1 pc(s) MRI-58-A-R10-HLD-256-ZZ-V2-2M5-R Magnetic Clamping flange 58 mm
User & Safety Instructions
User & Safety Instructions 2985525 Opkon Incremental Rotary encoder 1 pc(s) MRI-58-A-R10-HLD-256-ZZ-V2-2M5-R Magnetic Clamping flange 58 mm
