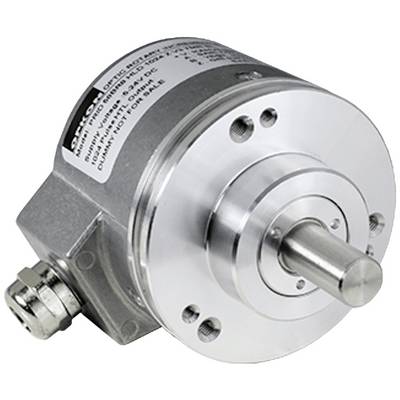

Opkon Incremental Rotary encoder 1 pc(s) PRI 58AR8 HLD 500 ZZ V3 2M5R Optical Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Rotary encoder
Model
Incremental
Min. operating voltage
5 V DC
Max. operating voltage
24 V DC
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 159.66
-8 %
€ 147.05
plus VAT.
14-day return policy included
Technical specifications
- Output signal: A, A, B, B', Z, Z'
- Cable: 8-wire
- Packaging type
Single
- Product type
Rotary encoder
- Type
PRI 58AR8 HLD 500 ZZ V3 2M5R
- Model
Incremental
- Technology
Optical
- Min. operating voltage
5 V DC
- Max. operating voltage
24 V DC
- Operating voltage
5 - 24 V DC
- Interfaces
HTL
- Connector
Cable
- Cable length
2.50 m
- No. of rotations
4000
- Steps per cycle
500
- Impulses per cycle (max.)
500
- Shaft Ø
8 mm
- Material (shaft)
Stainless steel
- Enclosure material
Aluminium
Steel
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP50
- (Ø)
58 mm
- Dim
(Ø) 58 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1273546 Opkon Incremental Rotary encoder 1 pc(s) PRI 58AR8 HLD 500 ZZ V3 2M5R Optical Single
Datasheet 1273546 Opkon Incremental Rotary encoder 1 pc(s) PRI 58AR8 HLD 500 ZZ V3 2M5R Optical Single
User & Safety Instructions
User & Safety Instructions 1273546 Opkon Incremental Rotary encoder 1 pc(s) PRI 58AR8 HLD 500 ZZ V3 2M5R Optical Single
Description
Precise incremental encoder for speed or position monitoring, for example, for induction motors, grinding rings, packaging plants or in textile and printing machines.
