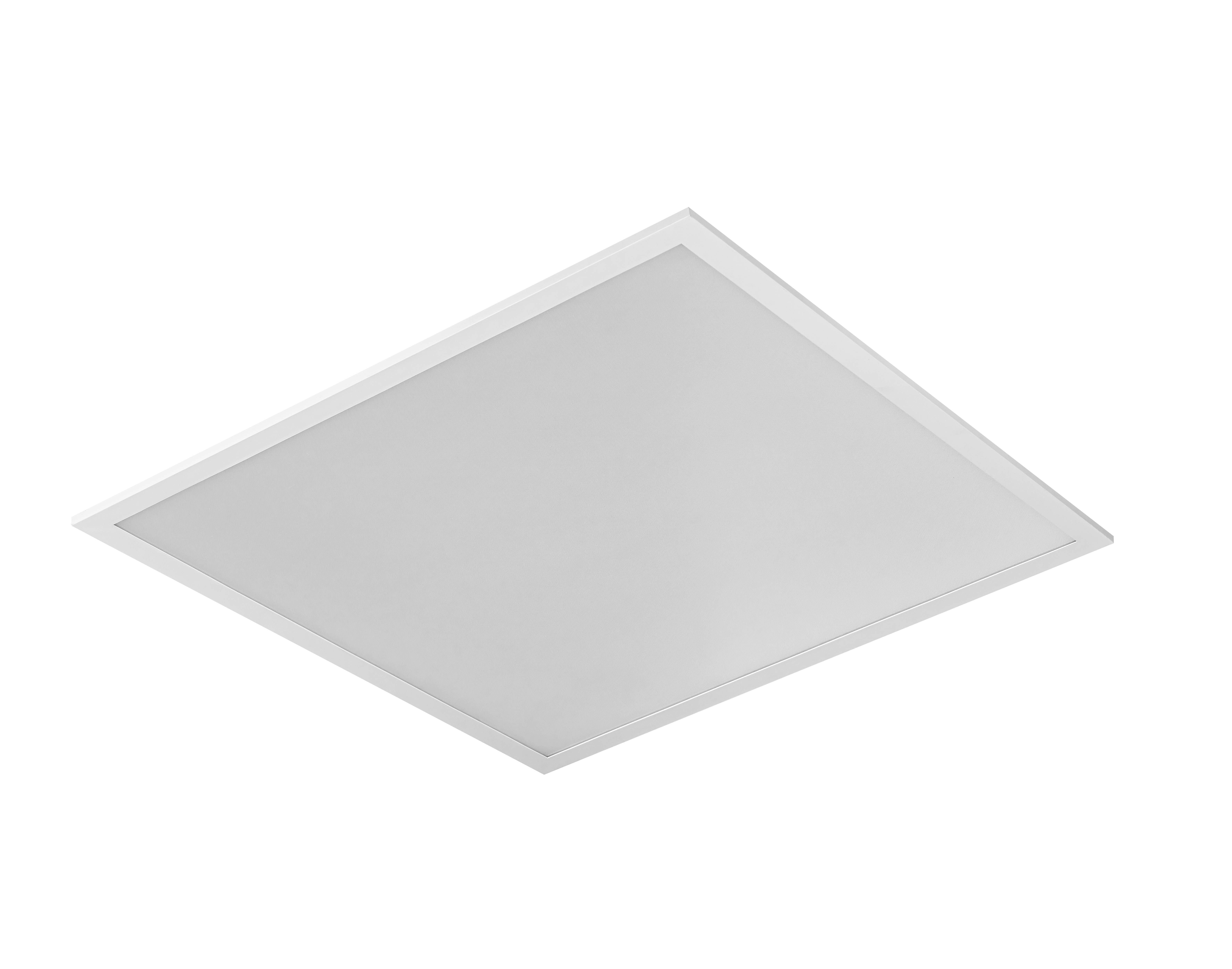

Opple 542003109900 542003109900 LED panel 30 W White White
EAN:
Part number:
Item no:
Highlights & Details
Opple lighting LED panel M600 830 slim P #542003109900
- Power= 30 W
- Total luminous flux= 3900 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Material of housing: Aluminium
- Surface protection housing: Painted
- Housing color: White
- Cover material: Textured plastic
- Design of grid: Without
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Nominal current: 750 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dimming RF: Yes
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: No.
- Without dimmer function: No.
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Radiation angle: Extremely wide radiation >80°
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Rated life L70/B50 at 25 °C: 100000 h
- Max. Number of lights circuit breaker B16: 25
- Max. Number of lamps line circuit breakers C16: 16
- Protection class (IP) IP54
- Impact strength: IK03
- Protection class: II
- Lamp with limited surface temperature "D-sign": No.
- Rated ambient temperature according to IEC62722-2-1: -10..45°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 30 W
- Light output 130 lm/W
- Rated light current according to IEC 62722-2-1: 3900 lm
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Power factor 0.9
- Constant luminous flux regulation: No.
- Width 595 mm
- Height/depth 25 mm
- Length: 595 mm
- Mounting length 595 mm
- Mounting width 595 mm
- Type of wiring: Finish
- Connector type: Free cable end
- Photobiological safety according to EN 62471: RG0
- Glare limiter (UGR): 19
- Adjustable color temperature: No.
- Adjustable radiation angle: No.
- Operation via Bluetooth: Yes
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED panel
- Type
Square
- Operating voltage
230 V
- Bulb type
LED (monochrome)
Built-in LED
30 W
3000 K
- Colour
White
3900 lm
- Total luminous flux
3900 lm
- Protection screen
Textured
- Light features
Dimmable
- Radiation angle
80°
- Protection class
II
IP54
- Factory colour
White
- Material
Aluminium
- Width
595.00 mm
- Height
25.00 mm
- Length
595.00 mm
n.rel.
- Rated luminous flux
3900 lm
Yes
- Light bulb included
Yes
- Colour rendering index
80-89
- Recess length
595 mm
- Recess width
595 mm
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Nominal voltage
230 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3136581 Opple 542003109900 542003109900 LED panel 30 W White White
Description
High-quality LED slim panel, suitable for offices (UGR19). Standard IP54 (front). Can be installed, suspended and surface-mounted.
