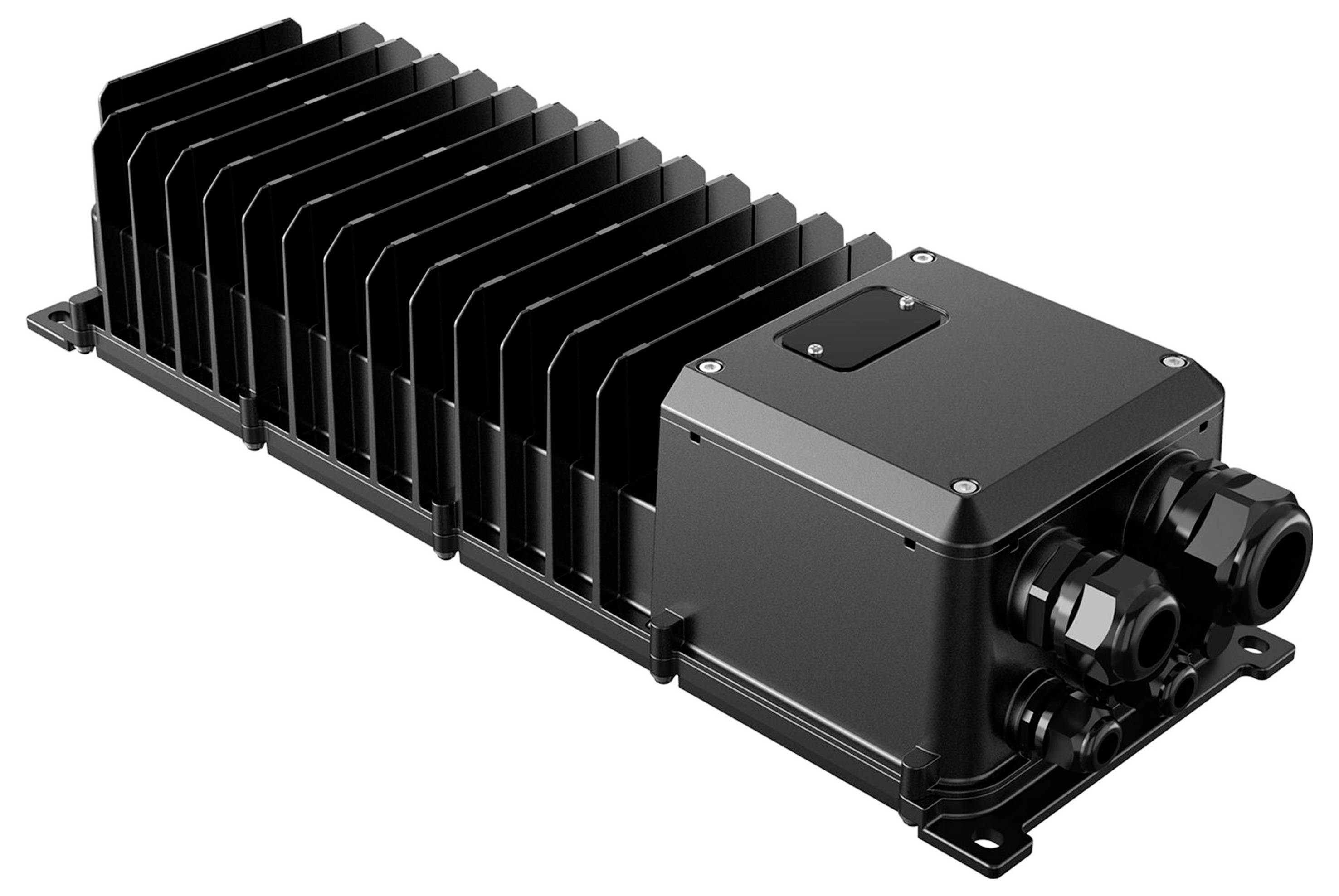

Opple 720001014200 LED-operating device 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Height: 102 mm
- Width 157 mm
- Execution: Dynamic
- Protection class (IP) IP66
- Suitable for outside use: Yes
- Protection class: I
- Length: 443 mm
- 1200 W power output
- Power consumption: 1200 W
- Constant luminous flux regulation: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Dimmer 0-10 V: No
- Dimming 1-10 V: Yes
- DALI dimming: Yes
- DMX dimming: Yes
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: Yes
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming touch and dim: Yes
- Zigbee dimming: No.
- Dimming with Push-button: Yes
- Without dimmer function: No.
- Operation via Bluetooth: No.
- Compatible with Casambi: No.
- Housing: Metal housing
- Suitable for constant current: No.
- Suitable for constant voltage: Yes
- Suitable for DC voltage (primary side): Yes
- Product type
LED-operating device
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549238 Opple 720001014200 LED-operating device 1 pc(s)
Description
Powerful professional floodlight solution for sports and area lighting. All-in-one LED driver with flexible mounting methods and 220-400VAC power input. Standard compatible with DALI2 / 1-10V / DMX dimming. Robust design: Fully IP66 and IK08 certified, including security cable. Includes diaphragm to prevent condensation.
