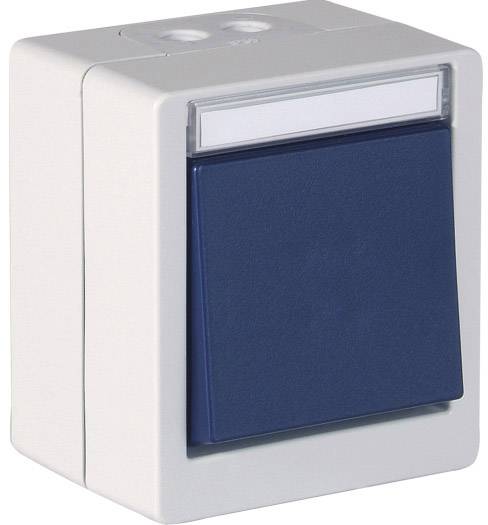

OPUSgreenNet 755.610.06 Wall-mount switch EnOcean
EAN:
Part number:
Item no:
Highlights & Details
OPUS® RESIST wall transmitter module 2-way encrypted radio light gray/steel blue
Technical specifications
- Product type
Wall-mount switch
- Series
EnOcean
Apple HomeKit
Mediola
- Transfer Standard (Smart Home)
EnOcean
- Used at
Outdoors
IP55
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Frequency
866.3 MHz
40 m
- Width
76 mm
- Height
86 mm
- Depth
57 mm
- Weight
155 g
- Dim
(W x H x D) 76 x 86 x 57 mm
- Hub
Not required
- Data exchange
Bidirectional (bi)
n.rel.
- Fitting method
Eyelets
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1973610 OPUSgreenNet 755.610.06 Wall-mount switch EnOcean
Description
With QR code for easy configuration in OPUS SmartHome Gateway AHK, harmonious design in light gray/steel blue and pure white, very high-quality 2-component casing with molded seals, secure connection of the housing parts via threaded screws and brass sleeves in the lower part of the casing, extra large connection area, for quick and easy wiring, maintenance-free transmitter, no battery required, 2 cable entries above, 1 bottom cable entry, With labeling field, dim.: 86 x 76 x 57 mm (H x W x D), temperature resistance: -20 °C to +65 °C.
This text is machine translated.
This text is machine translated.
Scope of delivery
- OPUS Wall transmitter IP55
