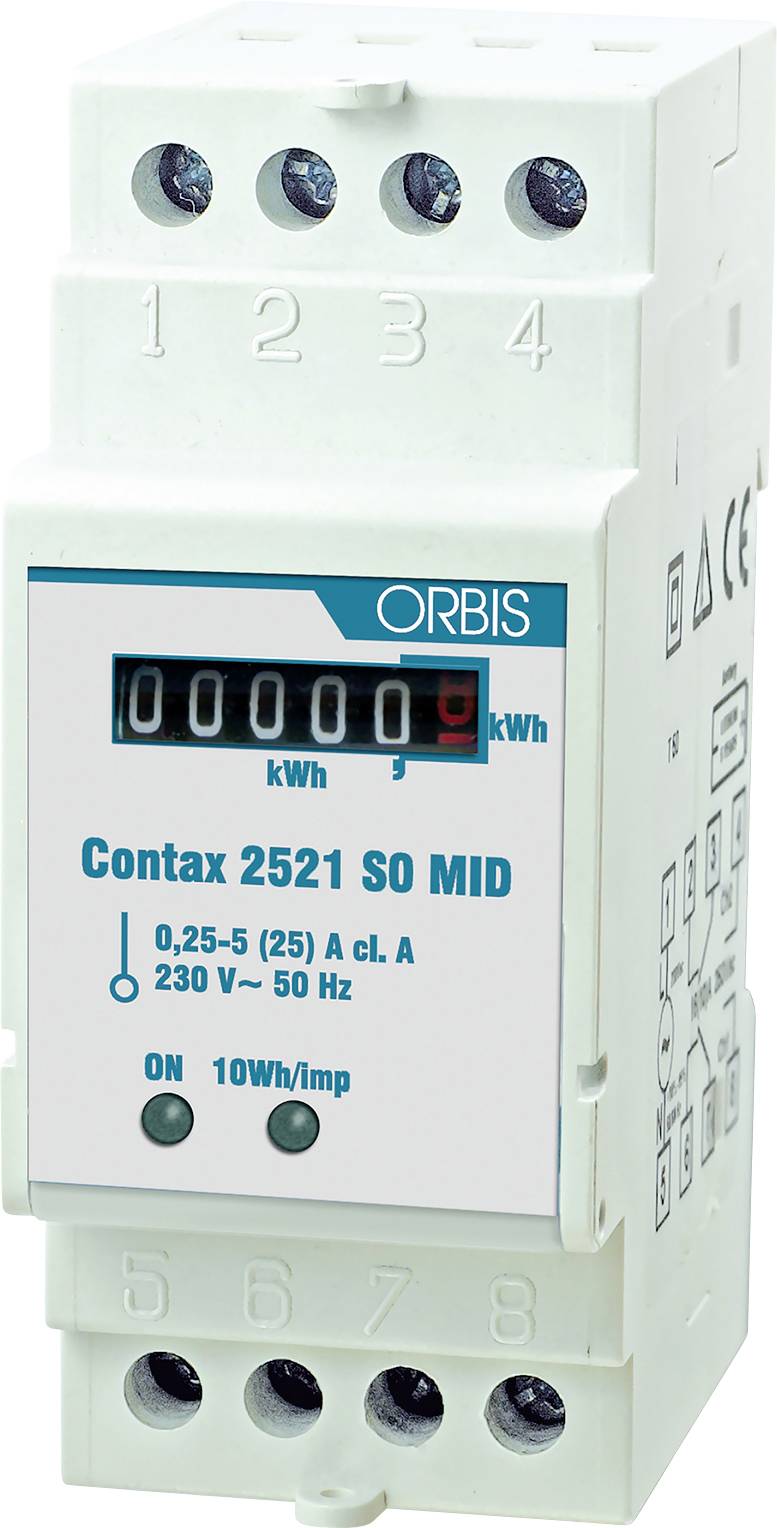

ORBIS Zeitschalttechnik kW-Zähler OB702000 Electricity meter (AC) Digital 25 A MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Current load
25 A
Display
Digital
Calibration
Calibrated
Counter type
Active power meter (direct measurement)
Datasheet (PDF)
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Only 5 Piece(s) available
Highlights & Details
CONTAX 2521 S0 MID 1-phase AC meter
- Official MID permission for appropriate power measurement
- Compact design on DIN top hat rail (1 HP = 18 mm width)
- Direct measurement up to 25 A with S0-Impulse output according to IEC 62053-31
Technical specifications
- S0-Impulse output (1000 Imp/kWh)
- Sealing seal
- Reverse lock
- Counter type
Active power meter (direct measurement)
- Product type
Electricity meter (AC)
- Current load
25 A
- Display
Digital
- Calibration
Calibrated
- Operating voltage
230 V AC
- Special feature
Official MID compliance ex-factory for calibrated electricity bills
- Factory colour
Grey
White
- Dim
(L x W x H) 65 x 18 x 90 mm
- Weight
100 g
- Starting current
20 mA
- Starting current
Hohe Anlaufempfindlichkeit ab 0,02 A zur genauen Erfassung kleinster Verbräuche
- Display
6+1 digit LCD display (6 integers + 1 decimal digits)
- Display range
0.0 to 999 999.9 kWh
- Type
Modular mounted in series counter for 35 mm DIN top hat rail (1 TE)
- Operating voltage
230 V AC
- Self-consumption
0.4 W
- Own consumption
Very low standby consumption of the measurement device electronics
- Recess width
18 mm
- Recess length
90
- Frequency
50 Hz
- Accuracy class
Class B / Class 1
- MID-approved
Yes
- Reading type
Active energy
- Nominal voltage range
195 up to 265 V AC
- Mains voltage (max.)
265 V AC
- Mains voltage (min.)
195 V AC
- Width
18 mm
- Height
90 mm
- Length
65 mm
- Current (max.)
25 A
- Current (min.)
0.02 A
- Current range
0.02 up to 25 A
- Type
kW-Zähler
- Effective power range
0 bis 5,75 kW
- Effective current range
0,02 A bis 25 A
- Power factor Cos φ (max.)
1
- Power factor Cos φ (min.)
0
- Power (max.)
5.75 W
- Active power (min.)
4.6 W
- Active power range
4.6 up to 5.75 W
Documents & Downloads
Datasheet
Datasheet 3828161 ORBIS Zeitschalttechnik kW-Zähler OB702000 Electricity meter (AC) Digital 25 A MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3828161 ORBIS Zeitschalttechnik kW-Zähler OB702000 Electricity meter (AC) Digital 25 A MID-approved: Yes 1 pc(s)
Description
Analogue energy meter for circuits up to 25 ampere. Pulse output "S0" for connecting the device to a power monitoring system. MID-certified as per European directive 2004/22/CE concerning measuring instruments.
This text is machine translated.
This text is machine translated.
Features
- 6+1 digit LCD display with high readability
- S0-Impulse output (Potential-free optocoupler) for evaluation
- Sealable housing cover for protection against manipulation
- Status-LED for impulse display (flash rate proportional to consumption)
Scope of delivery
- 1x alternating current counter Orbis CONTAX 2521 S0 MID (OB702000),
- Terminal cover,
- operating and installation instructions
