ORBIS Zeitschalttechnik kW-Zähler OB703100 Electricity meter (AC) Digital 32 A MID-approved: No 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Current load
32 A
Display
Digital
Counter type
Active power meter (direct measurement)
Operating voltage
230 V AC
Datasheet (PDF)
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
Only 5 Piece(s) available
Highlights & Details

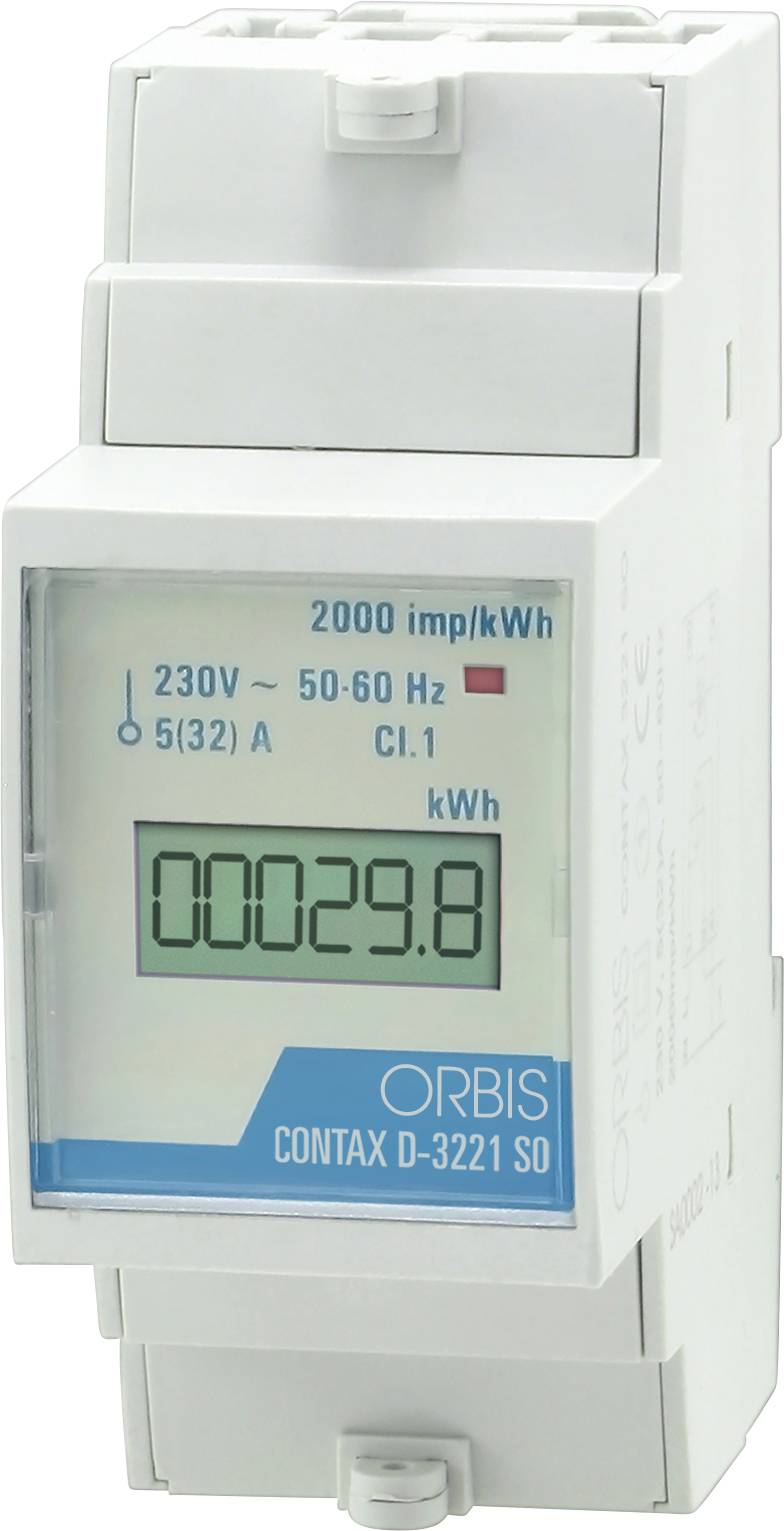

CONTAX D-3221 S0 1-Phase-AC meter digital
- Compact 1-phase AC meter for the DIN top hat rail (1 TE / 18 mm width)
- Direct measurement up to 32 A with high precision
- Integrated S0-Impulse output according to IEC 62053-31 for remote reading
- Easy-to-read, 7-digit LCD display
Technical specifications
- Protection class IP20 (enclosure IP51 on the front side in the control cabinet)
- Protection class: II
- Operating temperature: -20°C to +55 °C
- Counter type
Active power meter (direct measurement)
- Product type
Electricity meter (AC)
- Current load
32 A
- Display
Digital
- Operating voltage
230 V AC
- Special feature
Ultra-compact design (1 TE) with integrated S0-impulse interface
- Factory colour
White
Grey
- Dim
(L x W x H) 62 x 18 x 90 mm
- Weight
90 g
- Starting current
20 mA
- Starting current
Sehr empfindlicher Anlauf ab 0,02 A zur Erfassung kleinster Standby-Verbräuche
- Display
7-digit LCD-display
- Display range
0.0 to 999 999.9 kWh
- Type
Modular mounted in series counter for 35 mm DIN top hat rail (1 TE)
- Operating voltage
230 V AC
- Self-consumption
0.4 W
- Own consumption
Minimum consumption of the internal measurement electronics
- Recess width
18 mm
- Recess length
90 mm
- Frequency
50 Hz
- Accuracy class
Class 1 / Class B
- MID-approved
No
- Reading type
Active energy
- Nominal voltage range
184 up to 276 V AC
- Mains voltage (max.)
276 V AC
- Mains voltage (min.)
184 V
- Width
18 mm
- Height
90 mm
- Length
62 mm
- Current (max.)
32 A
- Current (min.)
0.02 A
- Current range
0.02 up to 32 A
- Type
kW-Zähler
- Effective power range
0 bis 7,36 kW
- Effective current range
0,02 A bis 32 A
- Power factor Cos φ (max.)
1
- Power factor Cos φ (min.)
0
- Power (max.)
7.36 kW
- Active power (min.)
4.6 W
- Active power range
4.6 up to 7.36 kW
Documents & Downloads
Datasheet
Datasheet 3828166 ORBIS Zeitschalttechnik kW-Zähler OB703100 Electricity meter (AC) Digital 32 A MID-approved: No 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3828166 ORBIS Zeitschalttechnik kW-Zähler OB703100 Electricity meter (AC) Digital 32 A MID-approved: No 1 pc(s)
Description
Digital energy meter for circuits up to 32 ampere. Pulse output "S0" for connecting the device to a power monitoring system.
This text is machine translated.
This text is machine translated.
Features
- Digital LCD display (6 integers + 1 decimal digits)
- S0 impulse output (potential-free optocoupler output)
- Red impulse LED on the front for optical consumption monitoring
- Sealable terminal cover for protection against manipulation
Scope of delivery
- 1x alternating current counter Orbis CONTAX D-3221 S0 (OB703100)
- operating and installation instructions
