ORBIS Zeitschalttechnik kW-Zähler OB707100 Electricity meter (AC) Digital 65 A MID-approved: No 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Current load
65 A
Display
Digital
Counter type
Electronic/static active current meter (direct measurement)
Operating voltage
230 V AC
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
Only 5 Piece(s) available
Highlights & Details

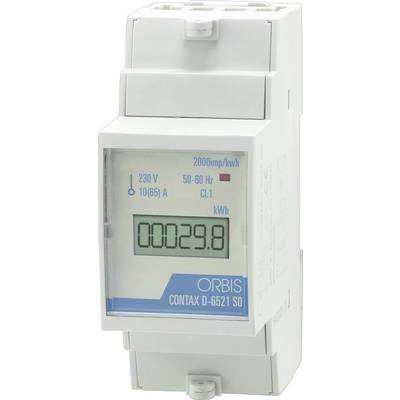

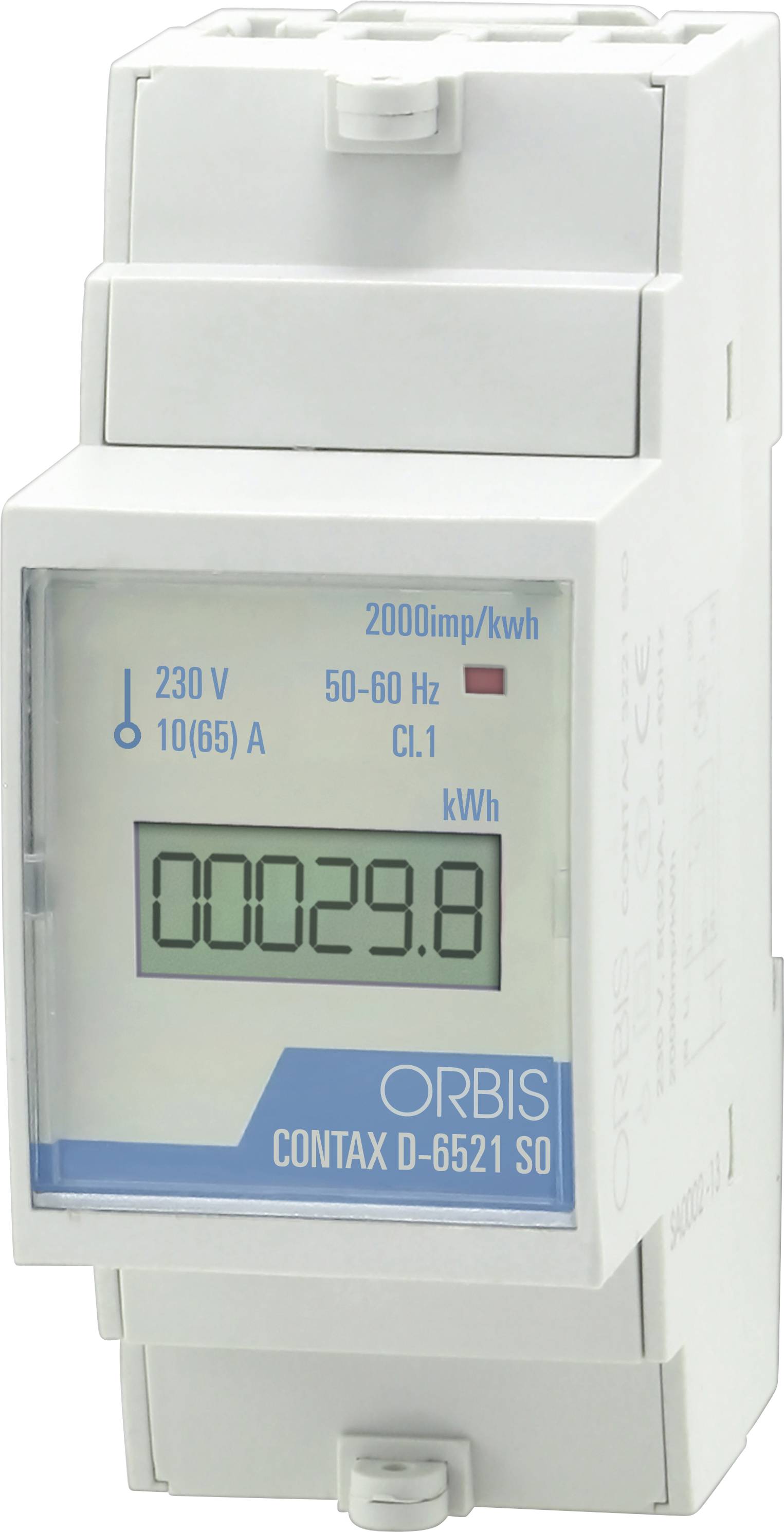

CONTAX D-6521 S0 Digital AC Energy Counter 1-phase
- Digital single-phase alternating current counter
- Direct connections up to 65 A.
- S0-Impulse output according to EN 62053-31
- LCD display (5 digits + 1 decimal)
- LED consumption display
Technical specifications
- Pulse constant: 1000 Imp/kWh
- Protection class IP20 (EN 60529)
- Operating temperature range: -20 °C to +50 °C
- Counter type
Electronic/static active current meter (direct measurement)
- Product type
Electricity meter (AC)
- Current load
65 A
- Display
Digital
- Operating voltage
230 V AC
- Special feature
LED pulse display (1 pulse/Wh) for visual consumption control and optocoupler output (1000 pulses/kWh)
- Factory colour
White
Grey
- Dim
(L x W x H) 65 x 36 x 90 mm
- Weight
120 g
- Starting current
40 mA
- Starting current
Typisch 0,04 A (40 mA) bei cos φ = 1
- Display
LCD, 5 integers + 1 decimal digit (kWh)
- Display range
00000.0 to 99999.9 kWh
- Type
Single phase for top hat rail mounting (DIN rail)
- Output
30 A
- Operating voltage
230 V AC
- Self-consumption
0.47 W
- Recess width
36 mm
- Recess length
35 mm
- Frequency
50 Hz
- Accuracy class
Class 1
- MID-approved
No
- Reading type
Active energy
- Nominal voltage range
115 up to 265 V AC
- Mains voltage (max.)
265 V AC
- Mains voltage (min.)
115 V AC
- Width
36 mm
- Height
90 mm
- Length
65 mm
- Current (max.)
65 A
- Current (min.)
0.5 A
- Current range
0.5 up to 65 A
- Type
kW-Zähler
- Effective power range
115 W bis 14.950 W
- Effective current range
0,5 A bis 65 A
- Power factor Cos φ (max.)
1
- Power factor Cos φ (min.)
0.5
- Power (max.)
15 W
- Active power (min.)
115 W
- Active power range
115 up to 15 W
Documents & Downloads
Datasheet
Datasheet 3828169 ORBIS Zeitschalttechnik kW-Zähler OB707100 Electricity meter (AC) Digital 65 A MID-approved: No 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3828169 ORBIS Zeitschalttechnik kW-Zähler OB707100 Electricity meter (AC) Digital 65 A MID-approved: No 1 pc(s)
Description
Digital energy meter for circuits up to 65 ampere. Pulse output "S0" for connecting the device to a power monitoring system. Subcounter with reset to "0".
This text is machine translated.
This text is machine translated.
Features
- 6-digit LCD-display
- S0-Impulse output (Optocoupler)
- LED impulse display (1 Wh/impulse)
- DIN rail mounting (2 TE)
Scope of delivery
- 1x Orbis CONTAX D-6521 S0 energy meter
- operating and installation instructions
