ORBIS Zeitschalttechnik kW-Zähler OB708600 Electricity meter (3-phase) Digital 63 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (3-phase)
Current load
63 A
Display
Digital
Counter type
Active power meter (direct measurement)
Operating voltage
230 V AC
Datasheet (PDF)
Number
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
Only 5 Piece(s) available
Highlights & Details

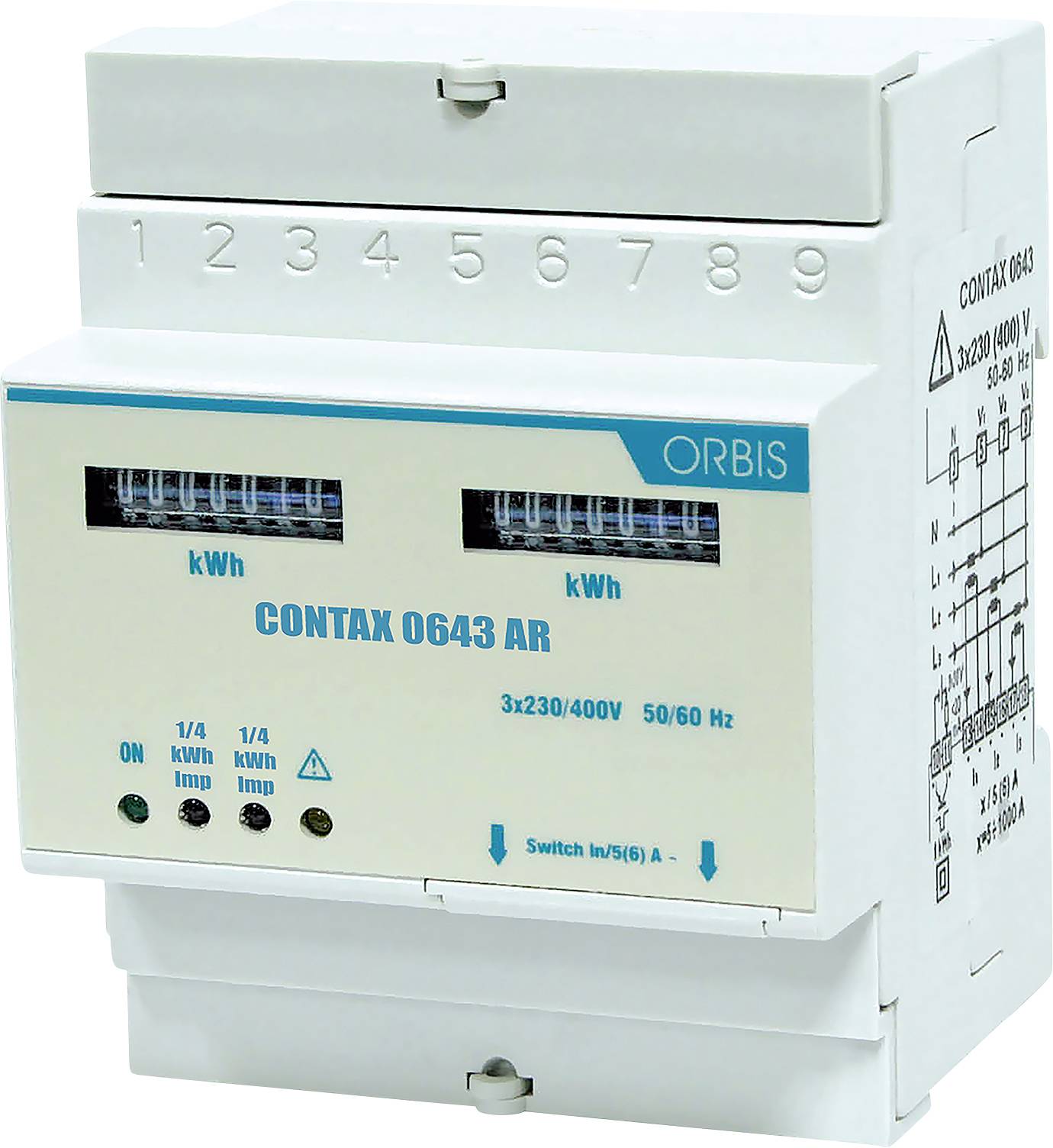

CONTAX 0643 AR S0 Three-phase digital energy/electricity meter for DIN rail mounting (3x230/400 V AC)
- Three-phase alternating current counter for DIN-rail (3 TE),
- Direct measurement up to 63 A,
- Digital LCD
- Integrated RS485-interface (Modbus RTU / BUS) for remote reading
Technical specifications
- Operating temperature: -20°C to +55 °C
- Counter type
Active power meter (direct measurement)
- Product type
Electricity meter (3-phase)
- Current load
63 A
- Display
Digital
- Operating voltage
230 V AC
- Special feature
Integrated RS485 communications interface (Modbus RTU) for remote data transmission
- Factory colour
Grey
White
- Dim
(L x W x H) 65 x 54 x 90 mm
- Weight
300 g
- Starting current
20 mA
- Starting current
Empfindlicher Anlauf ab 0,02 A zur präzisen Erfassung kleinster Grundlasten
- Display
7-digit LCD-display
- Display range
0.0 to 999 999.9 kWh
- Type
Modular installation device for 35 mm DIN rail (3 TE)
- Operating voltage
230 V AC
400 V AC
- Self-consumption
2 W
- Own consumption
Low intrinsic consumption of the internal measurement and electronic components
- Recess width
54
- Recess length
90
- Frequency
50 Hz
- Accuracy class
Class 1 / Class B
- Reading type
Active energy
Voltage
Amperage
Active power
- Nominal voltage range
196 up to 276 V AC
- Mains voltage (max.)
276 V AC
- Mains voltage (min.)
196 V AC
- Width
54 mm
- Height
90 mm
- Length
65 mm
- Current (max.)
63 A
- Current (min.)
0.02 A
- Current range
0.02 up to 63 A
- Type
kW-Zähler
- Effective power range
0 bis 43,5 W
- Effective current range
0,02 A bis 63 A
- Power factor Cos φ (max.)
1
- Power factor Cos φ (min.)
0
- Power (max.)
43.5 W
- Active power (min.)
4.6 W
- Active power range
4.6 up to 43.5 W
Documents & Downloads
Datasheet
Datasheet 3828126 ORBIS Zeitschalttechnik kW-Zähler OB708600 Electricity meter (3-phase) Digital 63 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3828126 ORBIS Zeitschalttechnik kW-Zähler OB708600 Electricity meter (3-phase) Digital 63 A 1 pc(s)
Description
The Orbis CONTAX D-6332 BUS (OB708600) is a compact, digital three-phase meter for top hat rail mounting. It is suitable for Ideal for the precise recording of active consumption in commercial, industrial and private sub-distribution and enables a seamless integration in building management systems and energy management systems thanks to its integrated RS485-BUS interface.
This text is machine translated.
This text is machine translated.
Features
- 7-digit LCD-display (6 main digits + 1 decimal digits)
- Blue display backlighting
- RS485 communication port (Modbus RTU)
- S0-Impulse output (800 Imp/kWh)
- Lead-sealable terminal covers
- Status LED for pulse and communication display
Scope of delivery
- 1x three-phase meter Orbis CONTAX D-6332 BUS (OB708600),
- operating and installation instructions
