ORBIS Zeitschalttechnik Leistungsstarke LED-Beleuchtung mit Bewegungsmelder OB135450 LED outdoor floodlight (+ motion de
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
14-day return policy included
Highlights & Details

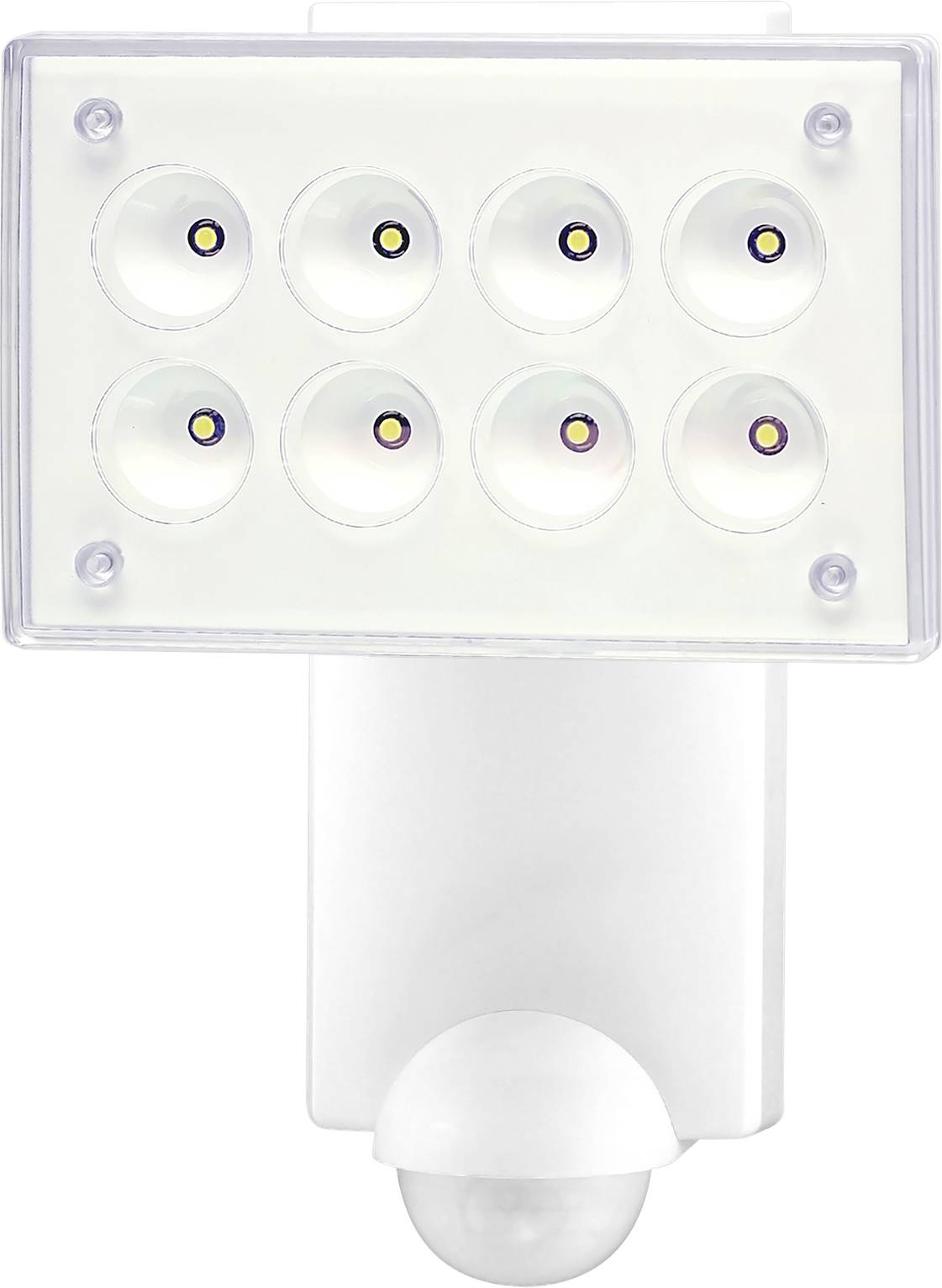

ProfiLED 8 LED outdoor spotlight with built-in motion detector
- Power= 8 W
- Total luminous flux= 700 lm
- Colour temperature= 4000 K
- Cool white
Technical specifications
- Twilight setting 2 -2000 Lux
- Operating temperature: -20°C to +40 °C
- Product type
LED outdoor floodlight (+ motion detector)
- Operating voltage
230 V AC
- No. of bulbs
8
- Bulb type
LED (monochrome)
- Rating per bulb
1 W
8 W
- Energy consumption
8 kWh/1000h
4000 K
- Colour
Cool white
- Total luminous flux
700 lm
- PIR detection angle (horizontal)
180°
- Vertical detection angle
90°
- Coverage max. (width)
12 m
- Adjustable on-time (min.)
5 s
- Adjustable on-time (max.)
10 min
- Light features
Swivelling
Incl. dimmer
- Rotation range (max.)
180°
- Swivel range (max.)
90°
- Radiation angle
110°
- Protection class
II
IP55
- Factory colour
White
- Material
Plastic
Aluminium
- Weight
350 g
- Dim
(W x H x D) 160 x 239.5 x 109 mm
n.rel.
- Type
Wall structure
- Type
Rectangular
- Colour rendering index
80–89 Ra
- Light bulb included
Yes
- Width
160 mm
- Height
239.5 mm
- Depth
109 mm
Documents & Downloads
Datasheet
Datasheet 3828172 ORBIS Zeitschalttechnik Leistungsstarke LED-Beleuchtung mit Bewegungsmelder OB135450 LED outdoor floodlight (+ motion de
User & Safety Instructions
User & Safety Instructions 3828172 ORBIS Zeitschalttechnik Leistungsstarke LED-Beleuchtung mit Bewegungsmelder OB135450 LED outdoor floodlight (+ motion de
Description
Surface mounting on the wall with protection class IP 55 against penetration of dust and water. Allows the beam and detector to be aligned to the desired lighting and detection areas. Real luminous flux of 1,234 lm with inserted diffuser and a color temperature of 5000-6300K.
This text is machine translated.
This text is machine translated.
Features
- Built-in HF motion and twilight sensor
- Continuously adjustable sensitivity / detection range
- Adjustable duty cycle and twilight threshold
- Swivelling and rotating lamp head for targeted alignment
- UV and weather-resistant housing
Scope of delivery
- Orbis PROXILED 8 LED spotlight with motion detector
- Mounting material (screws and wall plugs)
- operating and installation instructions
