ORBIS Zeitschalttechnik Leistungsstarke LED-Beleuchtung mit Bewegungsmelder OB135475 LED outdoor floodlight (+ motion de
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
14-day return policy included
Highlights & Details

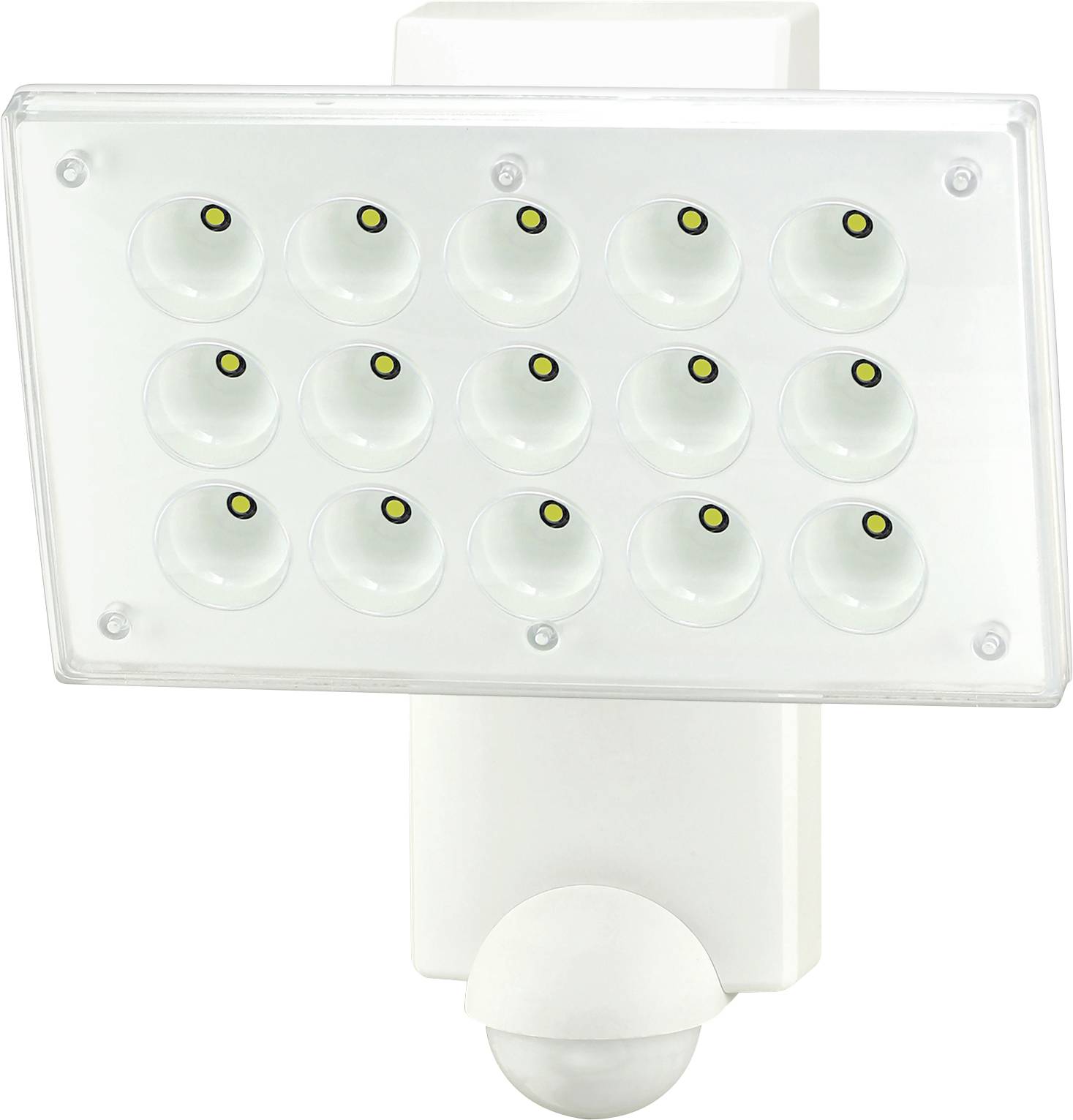

ProfiLED 15 LED outdoor spotlight with built-in motion detector
- Power= 15 W
- Total luminous flux= 1050 lm
- Colour temperature= 6000 K
- Cool white
Technical specifications
- Twilight setting 5 Lux to ∞ Lux
- Mounting type: Wall mounting
- Recommended installation height: 2.0 to 2.5 meters
- Temperature range: -20 °C to +40 °C
- Product type
LED outdoor floodlight (+ motion detector)
- Operating voltage
230 V AC
- No. of bulbs
15
- Bulb type
LED (monochrome)
- Rating per bulb
1 W
15 W
- Energy consumption
15 kWh/1000h
6000 K
- Colour
Cool white
70 lm
- Total luminous flux
1050 lm
- PIR detection angle (horizontal)
140°
- Vertical detection angle
90°
- Coverage max. (width)
12 m
- Adjustable on-time (min.)
5 s
- Adjustable on-time (max.)
10 min
- Light features
Incl. dimmer
Swivelling
- Rotation range (max.)
180°
- Swivel range (max.)
90°
- Radiation angle
120°
- Protection class
II
IP55
- Factory colour
White
- Material
Polycarbonate (PC)
Plastic
- Weight
650 g
- Dim
(W x H x D) 160 x 240 x 110 mm
n.rel.
- Type
Wall-mounted outdoor emitter
- Type
Rectangular
- Colour rendering index
80-89 Ra
- Light bulb included
Yes
- Width
160 mm
- Height
240 mm
- Depth
110 mm
Documents & Downloads
Datasheet
Datasheet 3828171 ORBIS Zeitschalttechnik Leistungsstarke LED-Beleuchtung mit Bewegungsmelder OB135475 LED outdoor floodlight (+ motion de
User & Safety Instructions
User & Safety Instructions 3828171 ORBIS Zeitschalttechnik Leistungsstarke LED-Beleuchtung mit Bewegungsmelder OB135475 LED outdoor floodlight (+ motion de
Description
Powerful LED lighting with the greatest possible savings in outdoor areas, where people or vehicles happen, such as in industrial halls, factories, sports facilities, schools, etc. Cast aluminum radiators for greater robustness and dissipation of the heat generated by the fifteen LEDs, providing a total light current of 2,128 lm including the diffuser.
This text is machine translated.
This text is machine translated.
Features
- Infrared PIR motion sensor
- Continuously adjustable switch-on duration
- Adjustable light-sensitive dimmer switch (light/dark threshold)
- Adjustable light head
- UV and weather-resistant plastic housing
Scope of delivery
- Orbis PROXILED 15 LED spotlight with motion detector
- Mounting material (screws and wall plugs)
- operating and installation instructions
