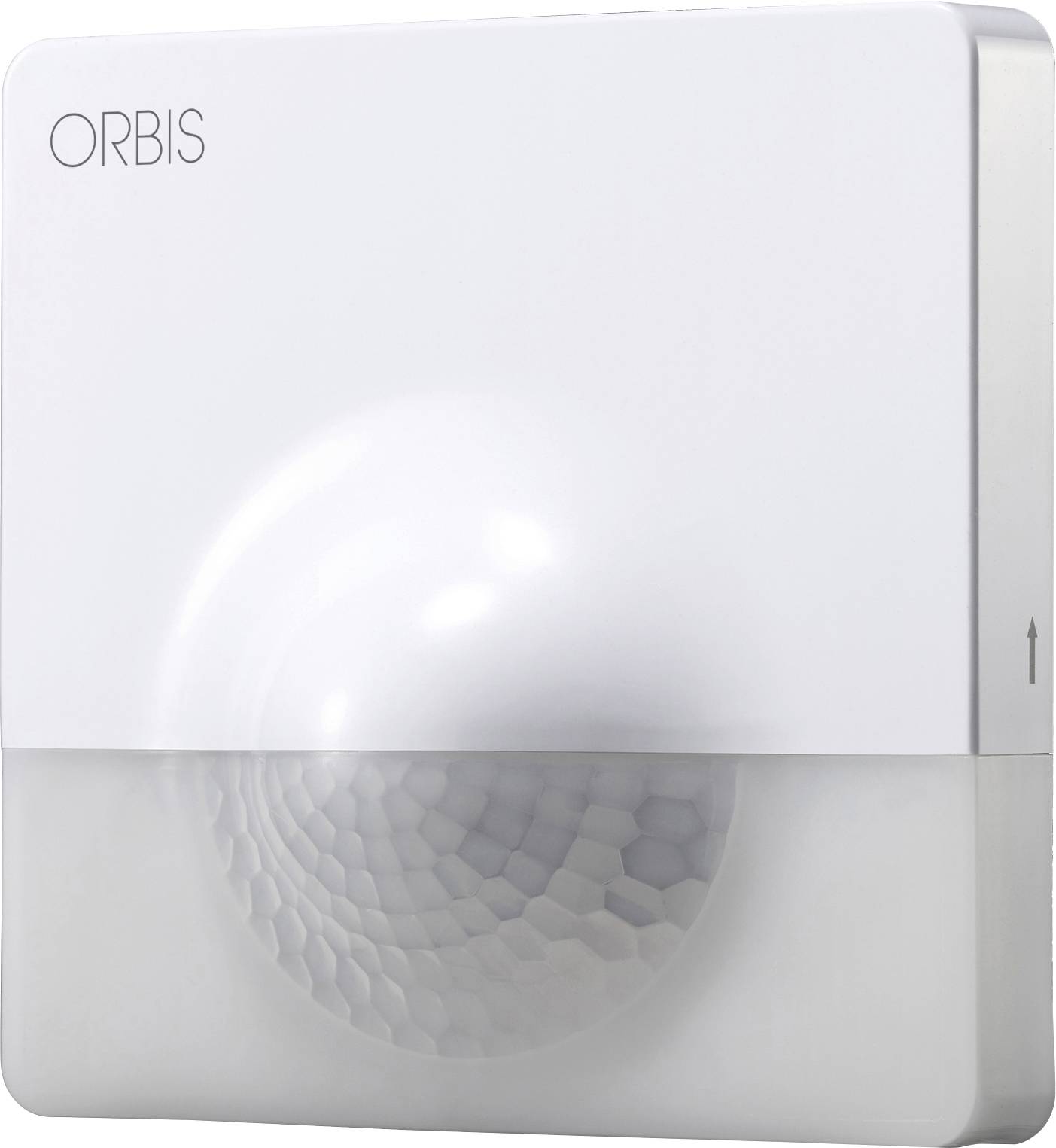

ORBIS Zeitschalttechnik OB131512 Surface-mount PIR motion detector 200 ° White IP55
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 0.95
€ 23.41
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
14-day return policy included
Highlights & Details
NEOMAT infrared wall motion detector for indoor and outdoor area
- Classic wall and ceiling motion detector for outdoor and indoor areas
- Generous 200° capturing angle with creep protection
- Horizontal and vertical sensor head rotation for precise alignment
- High switching power for various types of lighting
- Robust, weather-resistant housing with protection class IP55
Technical specifications
- 1x closer (NO), potential-bound
- Recommended installation height 2.0 m to 3.0 m.
- Internal consumption: Approx. 1.3 VA
- Material: Impact resistant, UV resistant thermoplastic
- Connection type: Screw terminals
- Product type
PIR motion detector
- Detection angle
200°
12 m
- Used at
Outdoors
Indoors
- Mounting type
Surface-mount
- Operating voltage
230 V AC
- Voltage (max.)
250 V AC
- Switching capacity (energy saving bulbs)
320 W
- Switching capacity (light bulbs)
2000 W
- Switching capacity (halogen bulbs)
1000 W
- Switching capacity (LED)
400 W
- Switching capacity (light tubes)
900 VA
- Standby current consumption
1 W
- Twilight settings
5 lux – 2000 lux
- Time settings
5 seconds – 15 minutes
- Factory colour
White
- Similar RAL
9010
IP55
- Operating temperature
-20 °C to +45 °C
- Type
NEOMAT
- Type
PIR motion detector for surface mounting on walls or ceilings
- Length
100 mm
- Width
85 mm
- Height
80 mm
- Dim
(L x W x H) 100 x 85 x 80 mm
- Weight
200 g
- Voltage (min.)
207 V AC
Documents & Downloads
Datasheet
Datasheet 3828177 ORBIS Zeitschalttechnik OB131512 Surface-mount PIR motion detector 200 ° White IP55
User & Safety Instructions
User & Safety Instructions 3828177 ORBIS Zeitschalttechnik OB131512 Surface-mount PIR motion detector 200 ° White IP55
Description
Its elegant design and small dimensions (10 x 10 cm) make the device inconspicuous and Ideal for the installation in hotels, offices and apartments. Installation on smooth walls or in corners and angles with the help of the accompanying accessories.
This text is machine translated.
This text is machine translated.
Features
- Continuously adjustable twilight threshold
- Continuously adjustable switch-off delay
- Rotating and tilting sensor head
- Wall and ceiling mounting base
- Blind caps for specific limitation of the detection area
Scope of delivery
- Movement sensor Orbis NEOMAT
- Cover plates/covers
- Installation and fitting material
- operating and installation instructions
