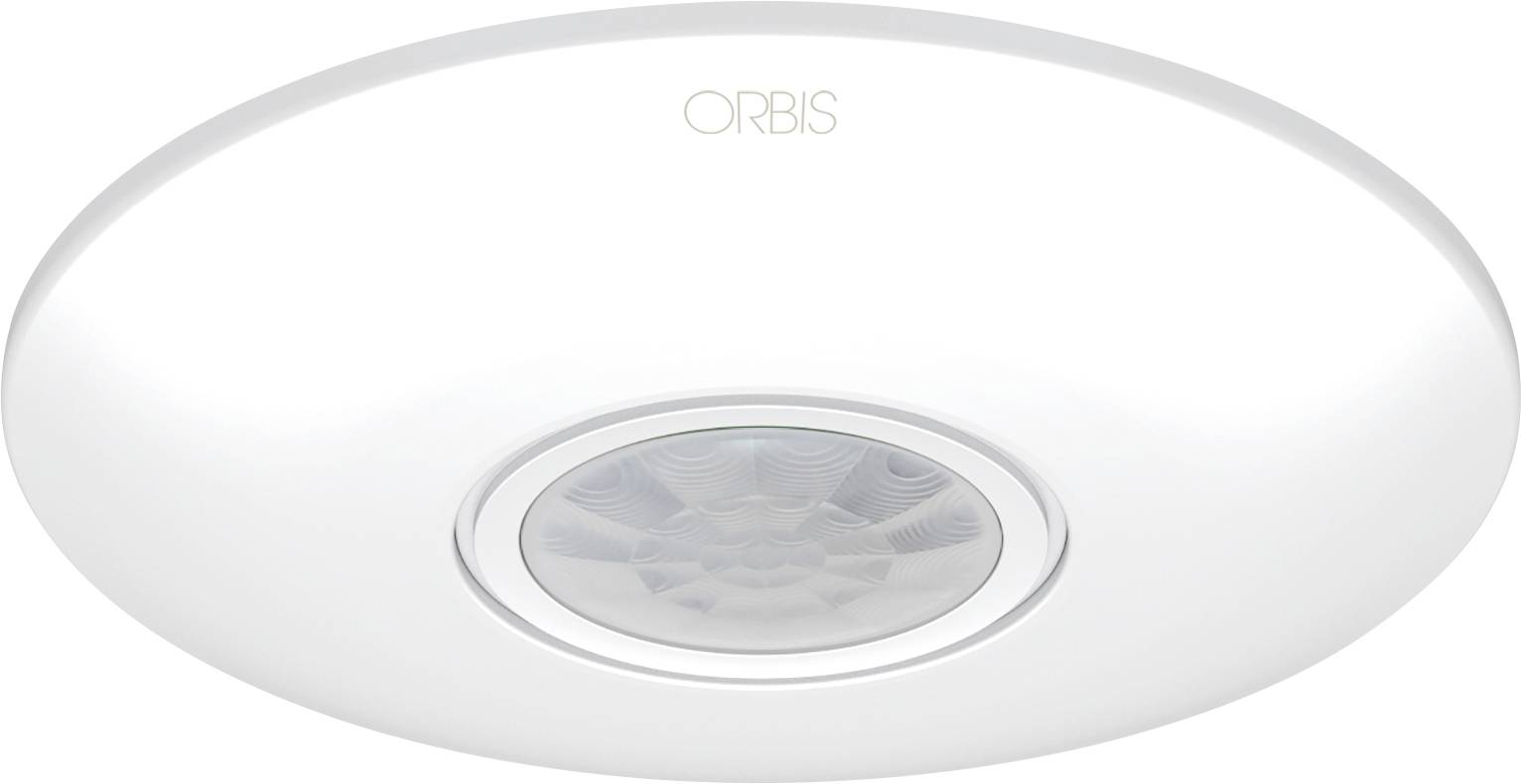

ORBIS Zeitschalttechnik OB137112 Ceiling PIR motion detector 360 ° Relay White IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
4% = € 0.90
€ 19.26
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
14-day return policy included
Highlights & Details
CIRCUMAT + electrical ceiling motion detector (PIR sensor) for the surface or flush mounting in the interior
- Ceiling surface mounting with 360º Capturing angle
- Zero crossing (zero crossing) for gentle switching of modern LED and energy saving lamps
- Built-in temperature sensor/temperature compensation for precise motion detection
- Impulse function and double neutral terminal for easy installation
Technical specifications
- Protection class II when properly installed
- Inactivity time after switching: Approx. 2 s
- Product type
PIR motion detector
- Detection angle
360°
9 m
- Used at
Indoors
- Mounting type
Ceiling
- Operating voltage
230 V AC
- Contact type
Relay
- Voltage (max.)
253 V AC
- Switching capacity (energy saving bulbs)
400 W
- Switching capacity (light bulbs)
1200 W
- Switching capacity (halogen bulbs)
1200 W
- Switching capacity (LED)
500 VA
- Switching capacity (light tubes)
400 VA
- Standby current consumption
0.8 W
- Twilight settings
3 to 2000 lx
- Time settings
10 s to 30 min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-20 to 40 °C
- Type
CIRCUMAT +
- Type
Passive infrared motion detector for ceiling mounting
- Height
24.3 mm
- (Ø)
120 mm
- Dim
(Ø x H) 120 mm x 24.3 mm
- Weight
105 g
- Voltage (min.)
207 V AC
Documents & Downloads
Datasheet
Datasheet 3828198 ORBIS Zeitschalttechnik OB137112 Ceiling PIR motion detector 360 ° Relay White IP20
User & Safety Instructions
User & Safety Instructions 3828198 ORBIS Zeitschalttechnik OB137112 Ceiling PIR motion detector 360 ° Relay White IP20
Description
The Orbis CIRCUMAT + is a compact motion detector for the surface mounting, which accurately captures the invisible infrared radiation of persons and heat sources. Equipped with zero-crossing, it is suitable for the Ideal energy-saving and gentle operation of modern LED lamps as well as fluorescent lamps and energy saving lamps. Flexible settings options for twilight and off-delay, a pulse function as well as the accompanying zone limiters enable optimum adaptation to different inner rooms like corridors, stairwells, offices and sanitary areas.
This text is machine translated.
This text is machine translated.
Features
- PIR detection sensor with 1 sensors
- Twilight switch and time setting can be adjusted continuously
- Zero crossing pulse function
- Double neutral connection terminal
- Temperature compensation
- Zone limiter/cover plate to limit the detection range
Scope of delivery
- Movement sensor Orbis CIRCUMAT +
- Zone limiter (cover)
- User manual
