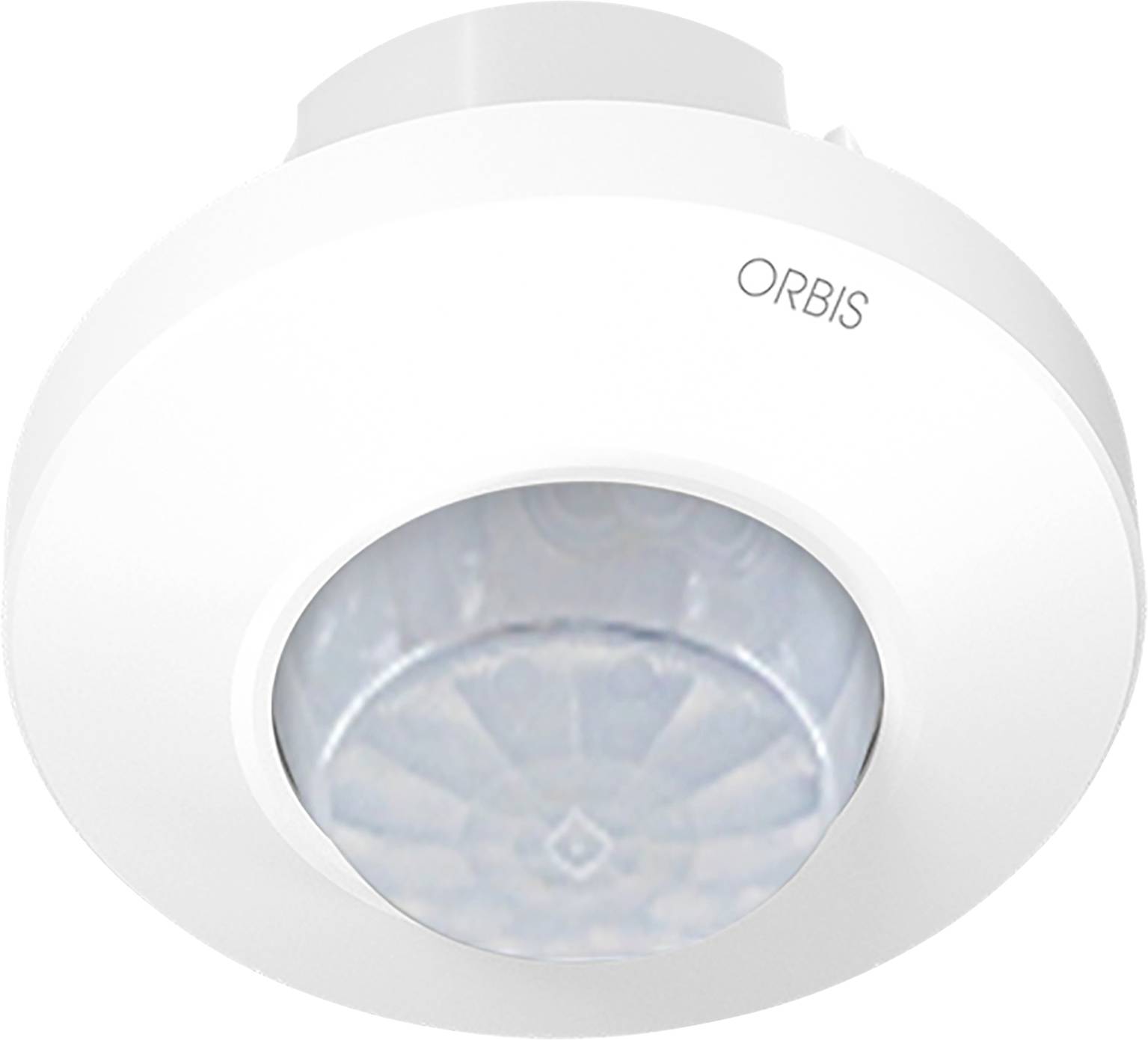

ORBIS Zeitschalttechnik OB137840 Ceiling, Surface-mount, Structure PIR motion detector 360 ° White IP40
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
14-day return policy included
Highlights & Details
COMBIMAT 40.5 Infrared occupancy detector (PIR) for ceiling mounting (flush mounted or surface mounted)
- Extra high detection area thanks to special 360° high-ceiling lens
- Optimised for ceiling mounting heights of up to 8 meters
- Large detection diameter of up to 40 meters (at maximum installation height)
- Robust zero-crossing switching for protecting the switch-on of high LED-switch-on currents
- Simple parameterization of twilight value and switch-off delay directly on the device
Technical specifications
- 1x closer (NO), potential-bound / phase connection
- Recommended installation height 2.5 m to 8.0 m.
- Max. Recording area: Approx. 1250 m² at 8 m installation height
- Internal consumption: Approx. 1.5 VA
- Housing material: Self-extinguishing thermoplastic
- Connection terminals: Screw terminals for cable cross-sections up to 2.5 mm²
- Product type
PIR motion detector
- Detection angle
360°
40 m
- Used at
Indoors
- Mounting type
Ceiling
Surface-mount
Structure
- Operating voltage
230 V AC
- Voltage (max.)
253 V AC
- Switching capacity (energy saving bulbs)
500 W
- Switching capacity (light bulbs)
2000 W
- Switching capacity (halogen bulbs)
1000 W
- Switching capacity (LED)
500 W
- Switching capacity (light tubes)
1000 VA
- Standby current consumption
0.9 W
- Twilight settings
10 lux – 2000 lux
- Time settings
10 seconds – 30 minutes
- Factory colour
White
- Similar RAL
9010
IP40
- Operating temperature
-10 °C to +45 °C
- Type
COMBIMAT 40.5
- Type
PIR large-area/high-ceiling motion detector for surface mounting
- Length
120 mm
- Width
120 mm
- Height
55 mm
- Dim
(L x W x H) 120 x 120 x 55 mm
- Weight
210 g
- Voltage (min.)
207 V AC
Documents & Downloads
Datasheet
Datasheet 3828179 ORBIS Zeitschalttechnik OB137840 Ceiling, Surface-mount, Structure PIR motion detector 360 ° White IP40
User & Safety Instructions
User & Safety Instructions 3828179 ORBIS Zeitschalttechnik OB137840 Ceiling, Surface-mount, Structure PIR motion detector 360 ° White IP40
Description
Rectangular detection range of 40 x 5 meters, Ideal for long corridors in hotels, offices or residential buildings. The device has an input for activating the time-controlled switch-on through additional buttons outside of the COMBIMAT.
Equipped with a relay, which increases the maximum power consumption to up to 300 VA for LED lamps or 1,200 VA for fluorescent lamps.
This text is machine translated.
Equipped with a relay, which increases the maximum power consumption to up to 300 VA for LED lamps or 1,200 VA for fluorescent lamps.
This text is machine translated.
Features
- Special lens for large capturing heights and widths
- Continuously adjustable twilight switch
- Continuously adjustable switch-off delay
- Zero crossing integrated
- LED status display for function and walk test check
Scope of delivery
- Motion detector Orbis COMBIMAT 40.5
- Fasteners (screws and plugs)
- operating and installation instructions
