ORBIS Zeitschalttechnik Wallbox (EV-Ladestation) Wallbox Type 2 Mode 3 32 A No. of ports 1 x 22 kW RFID, App
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

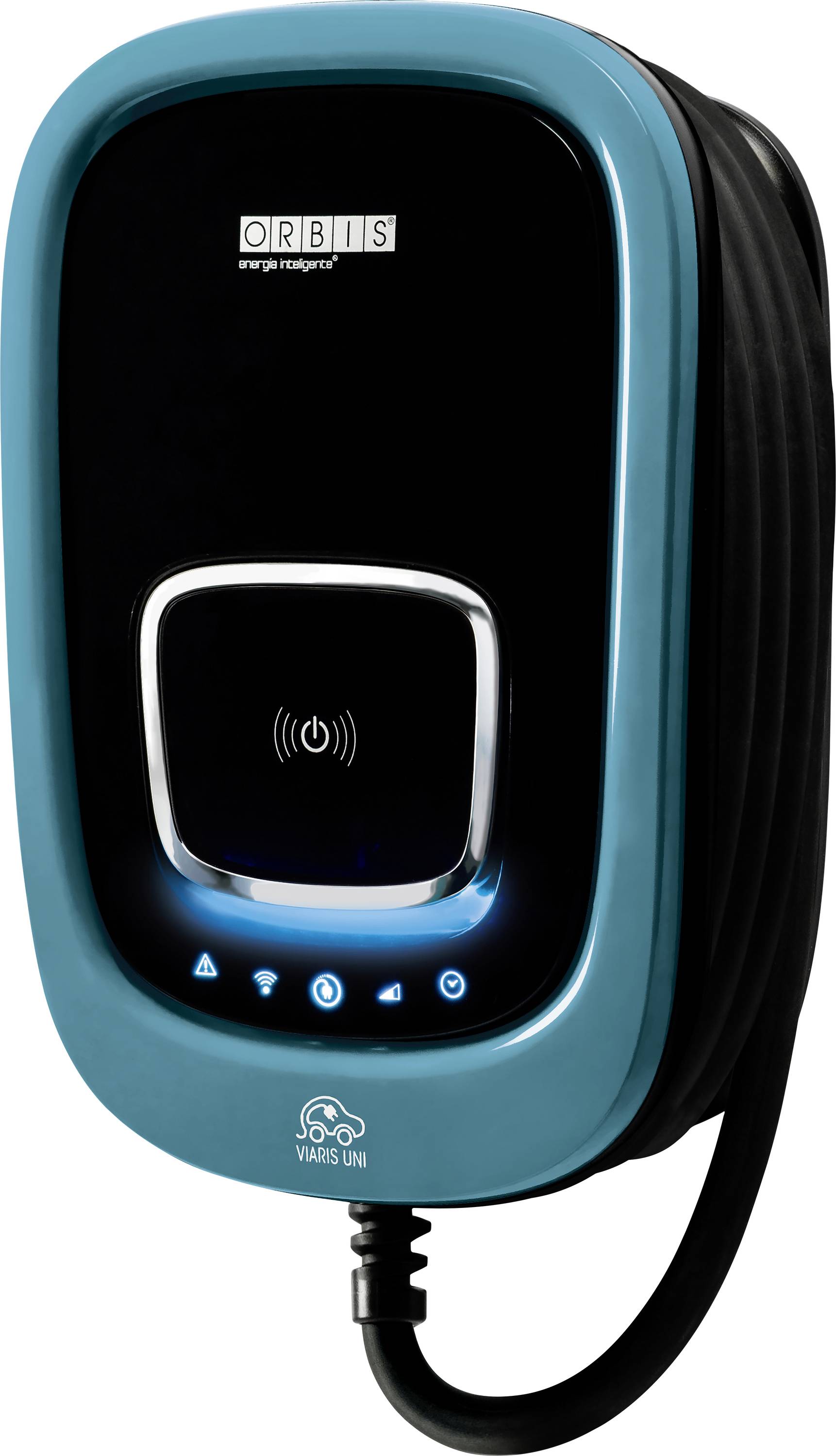

VIARIS UNI 22 kW CABLE 3-phase charging device (22 kW) for electric vehicles with permanently connected Type-2 charging cable
- Three-phase 22 kW Smart Wallbox with permanently attached 5m type 2 charging cable
- Integrated dynamic load control (modulated charging power)
- RFID card reader
- WLAN- and Ethernet-connectivity
Technical specifications
- Communication: OCPP 1.6J compatible, Wi-Fi 802.11 b/g/n, Ethernet (RJ45)
- Integrated protection: DC fault current detection 6 mA DC (saves expensive FI type B)
- PV integration / photovoltaic coupling: Supports charging with excess solar power via APP
- Product type
Wallbox
- Authorisation
RFID
App
- Charger connectors
Type 2
- Charging mode
Mode 3
- Charging current
32 A
- No. of ports
1 x
- Charging capacity
22 kW
- No. of phases
3-phase
- Nominal voltage
230 V AC
- Cable length
5 m
- Type
Wall housing / compact charging box for wall or post mounting
IP54
- Certification marks
CE, IEC 61851-1, IEC 61851-22, IEC 62196-1, IEC 62196-2, RoHS
- Factory colour
White
Black
- Length
115 mm
- Width
225 mm
- Height
335 mm
- Depth
115 mm
- Weight
5.3 kg
- Nominal current
32 A
- Max. temperature
50 °C
- Min. temperature
-30 °C
Documents & Downloads
Datasheet
Datasheet 3828124 ORBIS Zeitschalttechnik Wallbox (EV-Ladestation) Wallbox Type 2 Mode 3 32 A No. of ports 1 x 22 kW RFID, App
User & Safety Instructions
User & Safety Instructions 3828124 ORBIS Zeitschalttechnik Wallbox (EV-Ladestation) Wallbox Type 2 Mode 3 32 A No. of ports 1 x 22 kW RFID, App
Description
Intelligent charging system for electric vehicles, especially suitable for use in the private sector, both in companies and in municipalities and households. Configurable up to a power of 7.4 kW with the possibility of fitting 5 and 10 meter long connection tubes with plugs TYPE 2 depending on the model. It enables you to electrify a car park and charge an electric vehicle in an intelligent way, thanks to the supplied charging modulator, which achieves the highest charge in the shortest possible time without exceeding the contractually stipulated performance of the system/house. Moreover, you can manage and configure the charger with the e-VIARIS APP and check the consumption of your electric vehicle, both from the plant / house on site or from a distance.
This text is machine translated.
This text is machine translated.
Features
- Fixed Type 2 charging cable (5 m)
- RFID card reader for activation
- LED status indicator (multicolor)
- Touch sensor
- Integrated DC fault current sensor (6 mA DC), WLAN (Wi-Fi)
- Ethernet (RJ45)
- RS485-Interface (Modbus)
- Modulator for dynamic load management
Scope of delivery
- 1x Wallbox Orbis VIARIS UNI 22 kW (OB94U720HA2) incl. 5 m Type 2 charging cable
- 1x dynamic current sensor / modulator (TCM terminal)
- 5x RFID-cards, wall fixing set
- Installation and operating instructions
