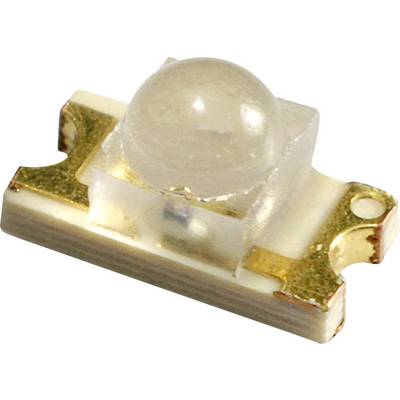

OSA Opto OLS-330HSD SMD LED 1206 Red 450 mcd 40 ° 20 mA 2.1 V Tape cut
EAN:
Part number:
Item no:
Packaging type
Tape cut
Product type
SMD LED
Forward voltage U(F)
2.1 V
Forward current I(F)
20 mA
Type
SMD
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.31
30
6% = € 0.02
€ 0.29
50
13% = € 0.04
€ 0.27
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.31 / piece)
€ 3.10
plus VAT.
Technical specifications
- Packaging type
Tape cut
- Product type
SMD LED
- Type
OLS-330HSD
- Factory colour
Red
- Forward voltage U(F)
2.1 V
- Forward current I(F)
20 mA
- Type
SMD
- Type
1206
- Light intensity I(V)
450 mcd
- Wavelength
625 nm
- Radiation angle
40°

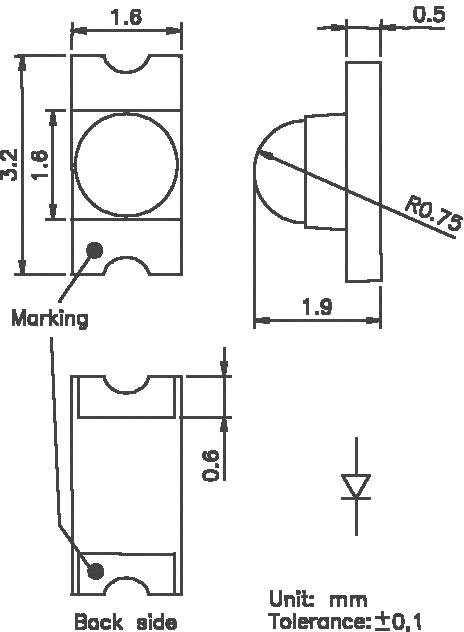

- Dim
(L x W x H) 3.2 x 1.6 x 1.9 mm
- Length
3.2 mm
- Width
1.6 mm
- Min. temperature
-40 °C
- Height
1.9 mm
- Max. temperature
85 °C
- Content
1 pc(s)
- Operating temperature
-40 - +85 °C
Documents & Downloads
Datasheet
Datasheet 154469 OSA Opto OLS-330HSD SMD LED 1206 Red 450 mcd 40 ° 20 mA 2.1 V Tape cut
User & Safety Instructions
User & Safety Instructions 154469 OSA Opto OLS-330HSD SMD LED 1206 Red 450 mcd 40 ° 20 mA 2.1 V Tape cut
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
