Buy Osram Automotive High beam LEDDL119-WD LEDDL119-WD LED (monochrome) front (L x W x H) 83 x 65 x 108 mm

LED headlight by OSRAM, round, model VX80-WD. Pictured are the light itself and the packaging with details on vehicle use.

Round LED work light from Osram with four illuminating diodes and a mounting bracket. Suitable for vehicles.

A round LED lamp from OSRAM shines brightly. It displays five illuminated LEDs in a symmetrical pattern on a sturdy mount.

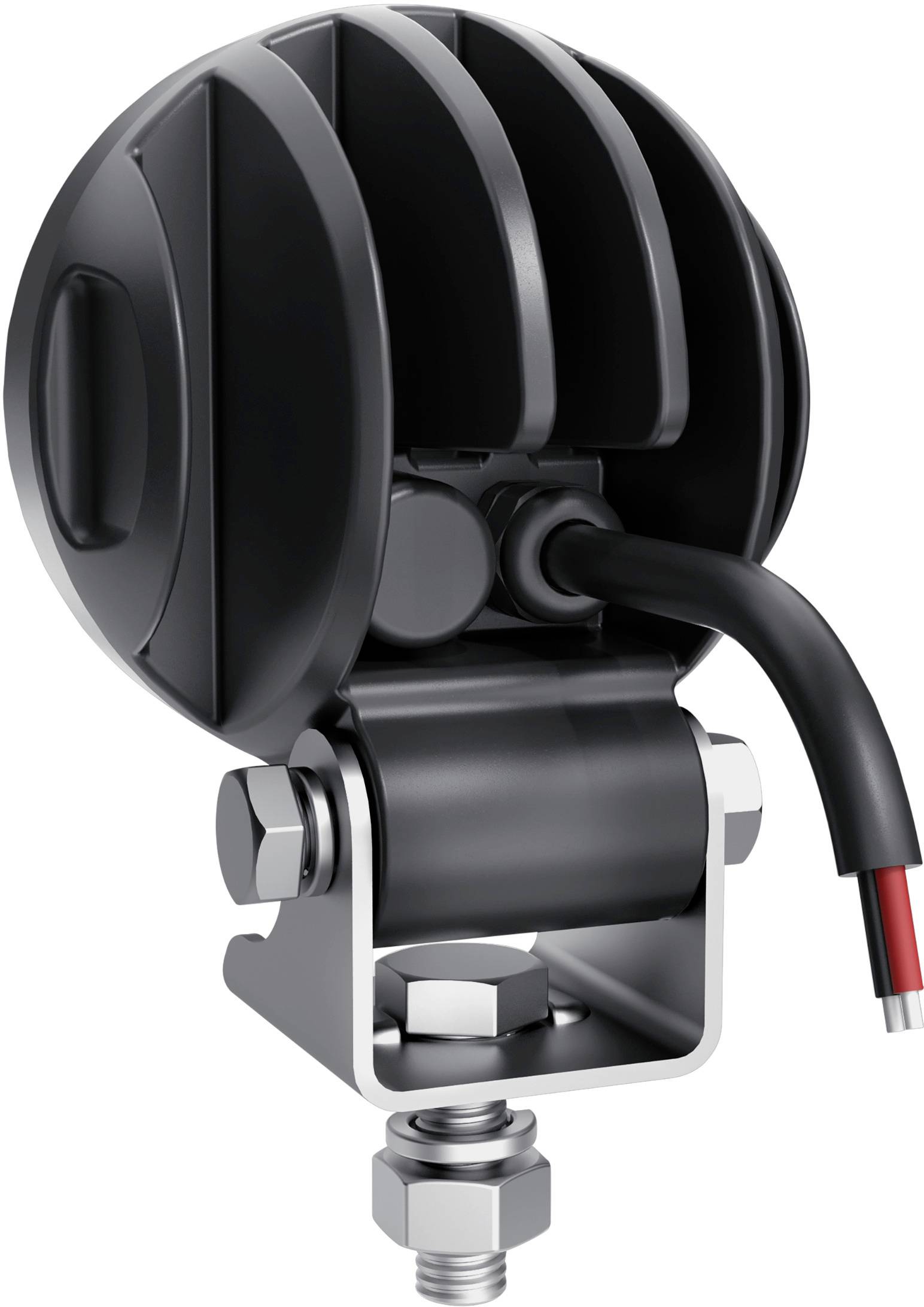

Circular black device with three cables, attached to a metal mounting bracket. One cable is visibly connected.

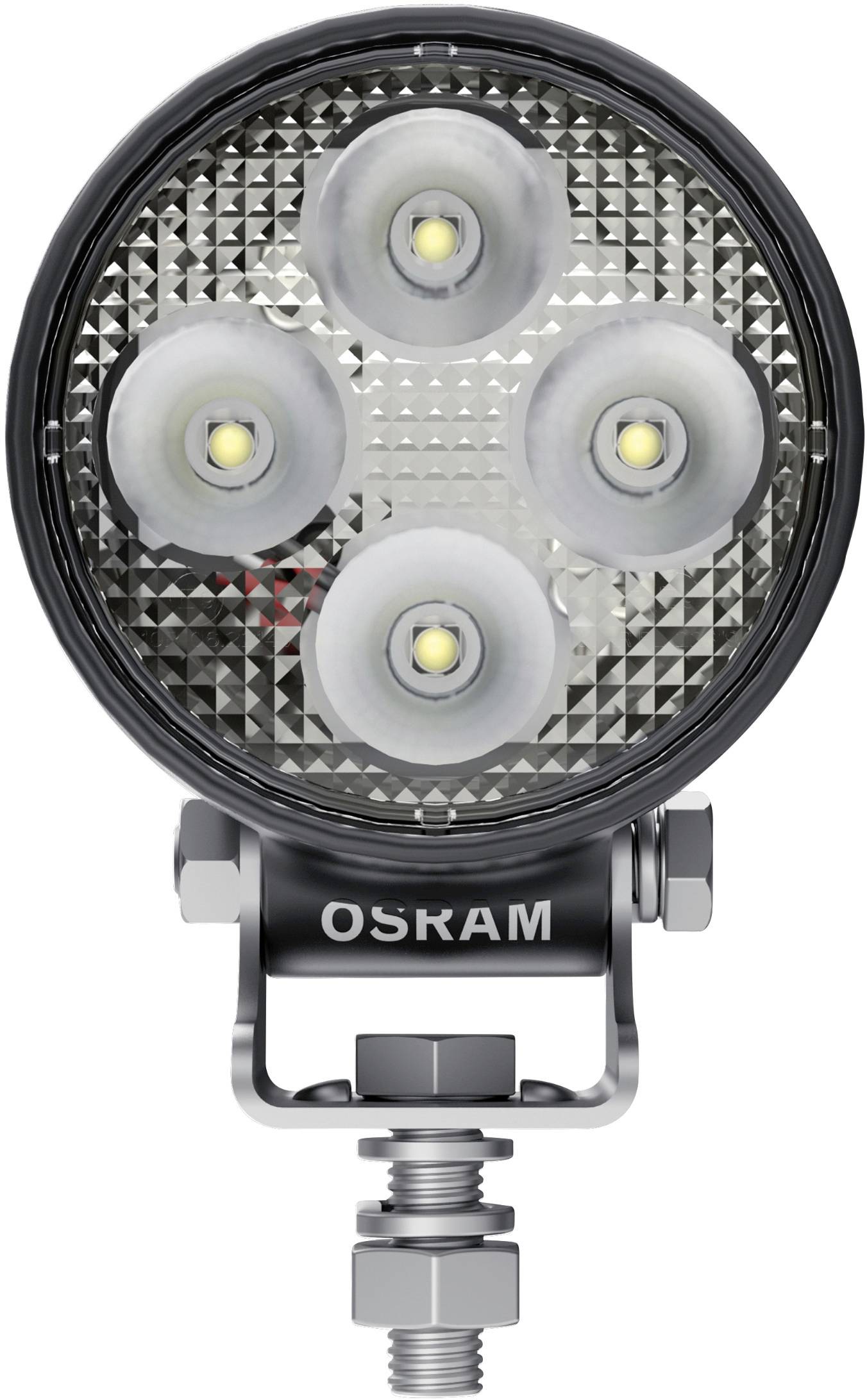

A round LED headlight with four illuminating diodes, mounted on a robust metal bracket with the inscription 'OSRAM'.

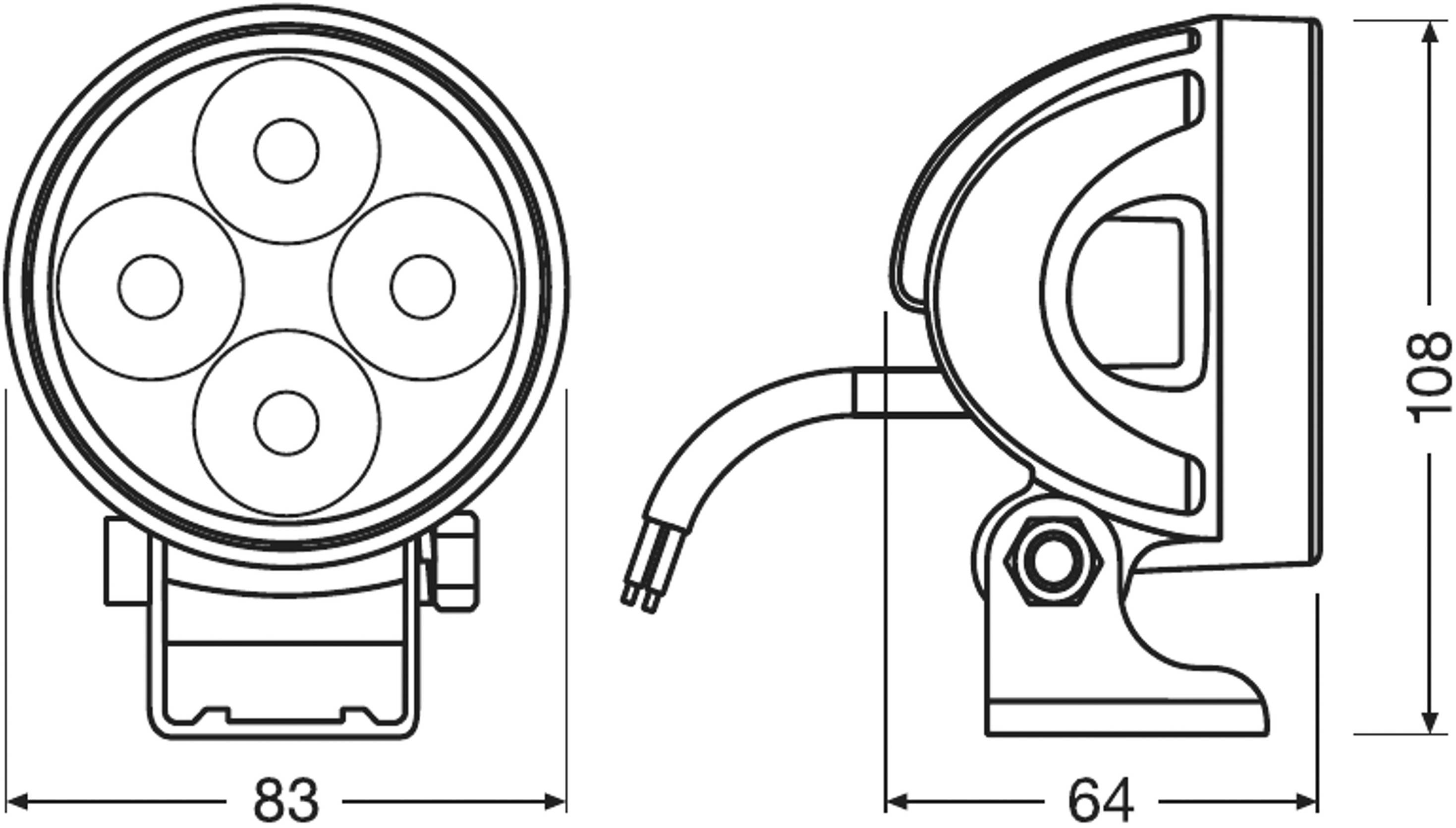

'Sketch of a circular light with five LEDs, dimensions: width 83 mm, depth 64 mm, height 108 mm. Side and front view.'

Technical drawing of a circular LED light with five diodes, front and side view. Cables and mounting elements visible.

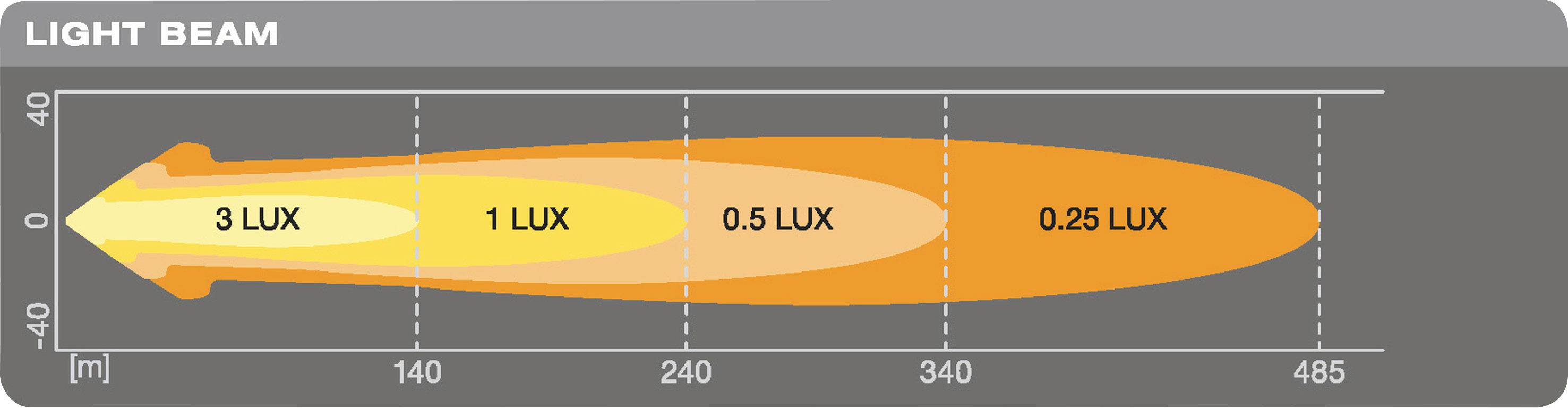

Diagram shows light cone ranges in metres: 3 LUX up to 140 m, 1 LUX up to 240 m, 0.5 LUX up to 340 m, 0.25 LUX up to 485 m.

1/9

Fast track dispatch on Wed, 23 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 48.73 / piece)

€ 48.73

plus VAT.

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Additional HEADLIGHT LEDriving Round VX80-WD

6000 Kelvin
1150 lumens
This text is machine translated.

Technical specifications

Dim: (L x W x H) 83 x 65 x 108 mm

Product type: High beam

Bulb type: LED (monochrome)

Recommended use: ATVs
Construction plant
Bus
Agriculture
HGVs
Cars
Quads
SUVs
Forklifts
Van
Camper vans
Show more

LEDs: 4 pc(s)

Version: High beam
Lighting
Replacement parts/spares

Fastening method: Screw mount

Operating voltage: 12 V
24 V

Content: 1 pc(s)

: 20 W

Width: 65 mm

Height: 108 mm

Length: 83 mm

ECE type approval labels: R112

: 6000 K

Total luminous flux: 1150 lm

Mounting site: front

Lenses for: Wide angle close range illumination

Weight: 510 g

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2302110 Osram Automotive High beam LEDDL119-WD LEDDL119-WD LED (monochrome) front (L x W x H) 83 x 65 x 108 mm

Warranty Terms

Warranty Terms 2302110 Osram Automotive High beam LEDDL119-WD LEDDL119-WD LED (monochrome) front (L x W x H) 83 x 65 x 108 mm

Description

Features

Increased traffic safety: Up to 240 m beam range
Wide Beam (WD): Improved near field lighting
Compact and robust: Break-proof polycarbonate lens for high demands
Over and under voltage protection
Integrated driver and heat management system for an increased life span
Light range @1lx: 240 m
Hot lumen: 1150 lm
Color temperature: 6000 K
Nominal input power: 22 W
Input voltage: 12/24 V
IP class: IP67
ECE: R112
EMC/EMI: ECE R10
Polarity protection
Cable length: 35 cm
Weight: 255 g.
