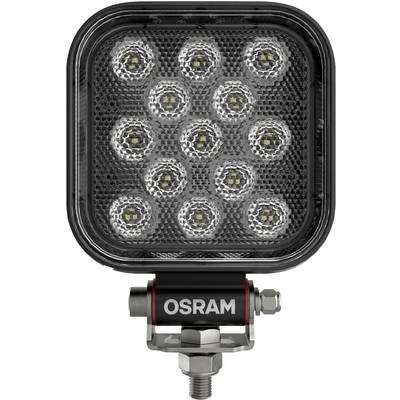

'OSRAM' LED work light with twelve LED lamps in a square housing, suitable for lighting during work operations.

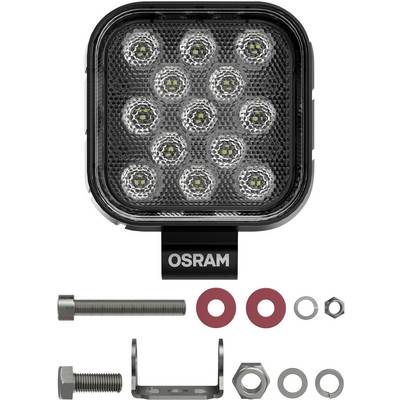

Square LED floodlight by OSRAM with 12 lights, includes mounting kit with screws, nuts and seals.

A dark woodland path is illuminated by bright headlights. Dense tree canopies border the path. A fence is on the right.

A bright LED light shines on a dark metal surface. Beside it is a sign with the European star symbol.

Square LED work light by Osram with 12 round LEDs, suitable for various working environments.

A black LED work light with a robust mounting bracket. Suitable for rugged environments, showing the rear side with connection plug.

A lorry with an illuminated trailer drives out of a building at dusk.

A dark woodland path at night, illuminated by dim light, surrounded by dense trees and a fence on the right-hand side.

A rectangular metal tray with a small LED display showing the EU flag, mounted in a dark environment.

A narrow, unpaved path through a dark forest, illuminated by spotlights, ends in total darkness.

Close-up of a lorry reversing into an illuminated loading bay. Number plate and rear lights are visible.

'OSRAM Worklights' are two LED lamps, one square, the other round, both with multiple LED lights and mounting brackets.

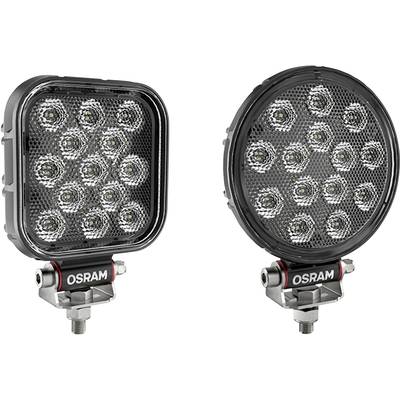

Two LED work lights, one square on the left, one round on the right, with the 'OSRAM' label on the mounting bracket.

Two OSRAM LED work lights in square and round shapes. Packaging displays details such as brightness and energy efficiency.

'OSRAM LEDriving Reversing Light' with nine LEDs, black housing and 45-degree illumination angle. Packaging shows vehicle installation.

Packaging for an Osram LED Reversing Light. Contains information on luminous intensity, beam angle, and a 5-year warranty.

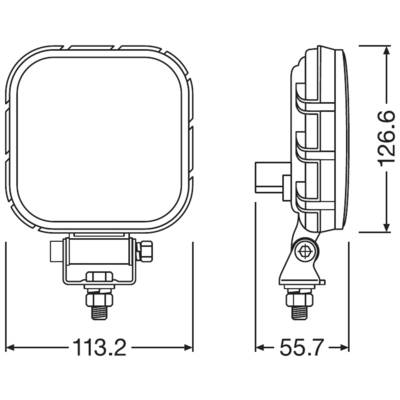

Technical drawing of a square headlight with dimensions: Width 113.2 mm, Height 126.6 mm, Depth 55.7 mm. Side and front view with mounting bracket.

Technical line drawing of a square work light, showing side and front views, depicting mounting elements and housing design.

Light Beam Diagram: Shows oval zones of decreasing light intensity from 3 LUX to 0.25 LUX at distances ranging from 21 to 73 metres.

1/25

Fast track dispatch on Wed, 23 Sep

26 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 33.61 / piece)

€ 33.61

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Osram Automotive Reversing lamps 12 V, 24 V LEDriving Reversing VX 120S-WD, quadratischer LED Rückfahrscheinwerfer LEDDL109-WD Long range illumination (W x H x D) 113 x 56 x 127 mm 1100 lm 6000 K

High power OSRAM LED
Up to 36 m light beam
Beam angle of 45 °
Thermo plastic casing with polycarbonate glass

Technical specifications

Dim: (W x H x D) 113 x 56 x 127 mm

Product type: Reversing lamps

LEDs: 13

Design type: Rectangular

Fastening method: Screw mount

Bulb type: LED (monochrome)

Operating voltage: 12 V
24 V

Weight: 375 g

: 15 W

: 6000 K

Total luminous flux: 1100 lm

Width: 113 mm

Height: 56 mm

Depth: 127 mm

Lenses for: Long range illumination

Features: Suitable as reversing light
Deutsch DT connector

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2265300 Osram Automotive Reversing lamps 12 V, 24 V LEDriving Reversing VX 120S-WD, quadratischer LED Rückfahrscheinwerfer LEDDL

Warranty Terms

Warranty Terms 2265300 Osram Automotive Reversing lamps 12 V, 24 V LEDriving Reversing VX 120S-WD, quadratischer LED Rückfahrscheinwerfer LEDDL

Description

Remarkable visibility on dark country roads, forest paths and off-road – this can be achieved with the reversing lights. With its 14 powerful high-power LED, the reversing light comes up to a range of up to 36 meters and thus offers the driver impressive wide-view on the road and in the terrains. Even at twilight and reduced visibility through external environmental influences, the reversing light with up to 6000 Kelvin can provide for daylight-like conditions. The power pack with up to 1100 Leuchtkraft scores with highest optical efficiency and homogeneous light distribution. This results in the possibility of an improved visibility for you and the improved visibility of your vehicle by other road users, as a result also an increased safety on-road and off-road.
Whether on-road or off-road – it convinces through its strong performance and long life. It can be used in many different ways despite numerous environmental influences and is particularly light and robust and resistant thanks to high-quality materials, such as the thermoplastics casing and the stable polycarbonate disk. The LEDdriving reversing light has been tested in our DIN certified environmental simulation laboratory for extreme external influences in terms of water, dust, impacts, heat, cold and permanent vibration and has been validated with the IP protection class IP69K. The integrated heat management system regulates the temperature of the LED headlight and can thus prevent damage from overheating. The polarity protection inhibits incorrect polarity during power supply and can prevent possible damage by automatically switching off the LED. On-Road and Off-Road the reversing light is an effective supplement for your vehicle.
The LED-headlight can be attached to cars, trucks, agricultural machines, forestry machines, commercial vehicles, construction vehicles, caravans, off-road vehicles and quads.

This text is machine translated.

Features

Up to 36 m beam at a beam angle of 45 °
Thermoplastics casing with particularly robust polycarbonate disc
Integrated driver and heat management system for an outstanding service life
Light distance at 1 lx 36 m.
Angle of radiation: 45 °
IP protection: IP69K
ECE: R23 EMC / EMI: ECE R10
Plug connection: DT Connector

Hints

Mounting control on the car:

The maximum number of reversing lights must not exceed 2 (including the already existing reversing lights), which are directly connected to the light function. Special assembly instructions apply.

Truck mounting control:

The maximum number of reversing lights at the rear of a truck must not exceed 2 (including the already existing reversing lights), which are directly connected to the light function. A truck can have an additional reversing light on each side. Special assembly instructions apply.
