Buy Osram Automotive High beam LEDDL113-CB LEDDL113-CB LED (monochrome) front (L x W x H) 134 x 241 x 169 mm

OSRAM headlamps in packaging, LED technology, illustration shows illuminated car in background.

A brightly illuminated, rectangular OSRAM headlight against a grey background.

Close-up of a vehicle front with a chrome-plated bull bar and switched-on LED headlights.

Illuminated rectangular OSRAM headlight in a grey housing against a light background.

'OSRAM LED lighting system with mounting accessories and connection cable. Includes light fixture, mounting bracket, cable and screws.'

Industrial ventilator with multiple large, robust blades and mounting elements for ventilation or cooling.

A close-up of a metal vehicle bumper with two mounted rectangular OSRAM headlamps.

Exterior lighting with a robust housing and clear glass, suitable for high-performance lighting solutions.

LED work light by Osram with robust housing and mounting, suitable for use in vehicles or in construction.

Close-up of a car with an additional protective bull bar and two illuminated headlamps at the front.

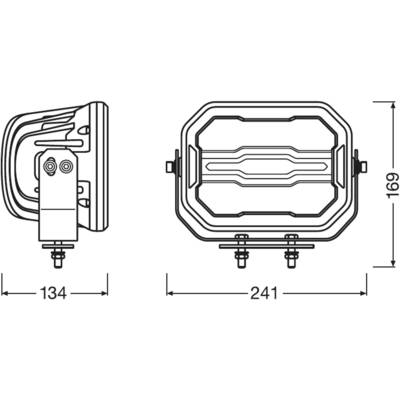

Technical Drawing of a Rectangular Headlamp with Dimensions: Width 241 mm, Height 169 mm, Depth 134 mm, including Mounting Bracket.

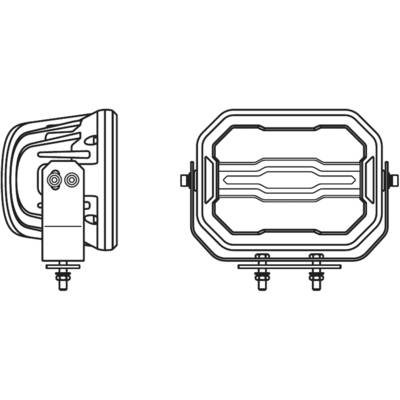

Technical drawing of two lamp housings in side and front views, with detailed screw connections and structures.

Diagram of the light distribution of a headlight shows range in metres. Intensity ranges from 3 to 0.25 lux are visible.

1/13

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 259.66 / piece)

€ 259.66

plus VAT.

Report legal concerns

Highlights & Details

LED additional light LEDriving® CUBE MX240-CB

Additional remote light (ECE R112)
Side light (ECE R7)
Up to 430m beam range
Combined near and long field illumination
Compact and robust
Over and under voltage protection

Technical specifications

Dim: (L x W x H) 134 x 241 x 169 mm

Product type: High beam

Bulb type: LED (monochrome)

Recommended use: ATVs
Construction plant
Bus
Agriculture
HGVs
Cars
Quads
SUVs
Forklifts
Van
Camper vans
Show more

Version: High beam
Lighting
Replacement parts/spares

Fastening method: Screw mount

Operating voltage: 12 V
24 V

Content: 1 pc(s)

Compatible with: Universal

Width: 241 mm

Height: 169 mm

Length: 134 mm

Reference number (Ref.): 50

ECE type approval labels: R7 / R112 / R10

: 6000 K

Total luminous flux: 4000 lm

Mounting site: front

Lenses for: Wide angle illumination

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2302097 Osram Automotive High beam LEDDL113-CB LEDDL113-CB LED (monochrome) front (L x W x H) 134 x 241 x 169 mm

Warranty Terms

Warranty Terms 2302097 Osram Automotive High beam LEDDL113-CB LEDDL113-CB LED (monochrome) front (L x W x H) 134 x 241 x 169 mm

Description

LED additional remote light and LED parking light with 6000 Kelvin and 4000 lumen.

This text is machine translated.

Features

Complete additional remote light (ECE R112) and side light (ECE R7)
Increased traffic safety: Up to 430m beam range
Combo light distribution: Combined near and long-range lighting
Compact and robust: Unbreakable polycarbonate lens for high load
Over and under voltage protection
Integrated driver and heat management system for an increased life
Light range @1lx: 430m
4000 lumen
Color temperature 6000K
Nominal input power: 70/1.5W
Life 5000h
IP class: IP69K
Cable length: 100cm
Weight: 3346g
