A rectangular LED light with a robust housing, suitable for vehicles or industrial applications, surface-mountable.

A rectangular LED light with a robust housing, suitable for vehicles or industrial applications, surface-mountable.

'Light ray diagram shows lux distribution: 3 lux at 180 m, 1 lux at 318 m, 0.5 lux at 450 m, 0.25 lux at 640 m.'

Black cylindrical electric motor with two mounting terminals and cable on the right side, horizontally aligned.

LED light bar in a rectangular housing with eight visible illumination cells and side mounting brackets for attachment.

Two cars stand side by side in a desert landscape at sunset; one white on the left, one black on the right, with headlights illuminated.

LED light bar with mounting hardware, including brackets, screws, nuts and washers for installation.

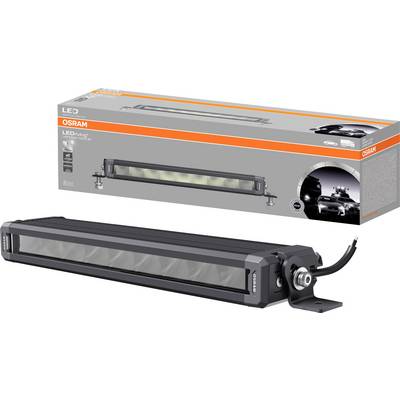

An LED strip from OSRAM with packaging. The lamp is black and long, with wired connections. The packaging displays product images.

Technical drawing of a rectangular LED luminaire with dimensions: Length 325 mm, Height 44 mm. Side view shows height of 35 mm.

Drawing of two LED lights in side and front view, focusing on shape and mounting elements.

1/10

Osram Automotive

Fast track dispatch on Thu, 24 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 84.03 / piece)

€ 84.03

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LED additional headlight LEDriving LIGHTBAR VX250-SP

Up to 318m beam range
Improved long-range illumination
Over and under voltage protection
This text is machine translated.

Technical specifications

Dim: (L x W x H) 67 x 275 x 36 mm

Product type: High beam

Bulb type: LED (monochrome)

Recommended use: ATVs
Construction plant
Bus
Agriculture
HGVs
Cars
Quads
Quads
SUVs

LEDs: 9 pc(s)

Version: High beam

Fastening method: Screw mount

Operating voltage: 12 V
24 V

Content: 1 pc(s)

: 27 W

Width: 275 mm

Height: 36 mm

Length: 67 mm

ECE type approval labels: R112 (Ref. No. 30) · EMC/EMI: ECE R10

: 6000 K

Total luminous flux: 1500 lm

Mounting site: front

Lenses for: Close range illumination

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2304672 Osram Automotive High beam LEDDL115-SP LEDDL115-SP LED (monochrome) front (L x W x H) 67 x 275 x 36 mm

eNum certificate

European union

eNum certificate 2304672 Osram Automotive High beam LEDDL115-SP LEDDL115-SP LED (monochrome) front (L x W x H) 67 x 275 x 36 mm

Warranty Terms

Deutsch (Deutschland)

Warranty Terms 2304672 Osram Automotive High beam LEDDL115-SP LEDDL115-SP LED (monochrome) front (L x W x H) 67 x 275 x 36 mm

Description

Features

Increased traffic safety: Up to 318m beam range
spot beam (SP): Improved long-range lighting
compact and robust: Break-proof polycarbonate lens for high loads
over and under voltage protection
integrated driver and heat management system for an increased life
beam range @1lx: 318m
hot lumen: 1500lm
color temperature: 6000K
rated input power: 27W
input voltage: 12/24V
IP Class: IP67
ECE: R112 (ref. No. 30)
EMC/EMI: ECE R10
Polarity protection
Cable length: 45cm
Weight: 790g

Scope of delivery

Incl. Screws, washers, nuts
Mounting Bracket
