Buy OSRAM HOMELIGHTING 4099854292552 SF FLAT RD 500 P 27W ML 83040 Ceiling light, LED ceiling light, LED wall light, Wall li

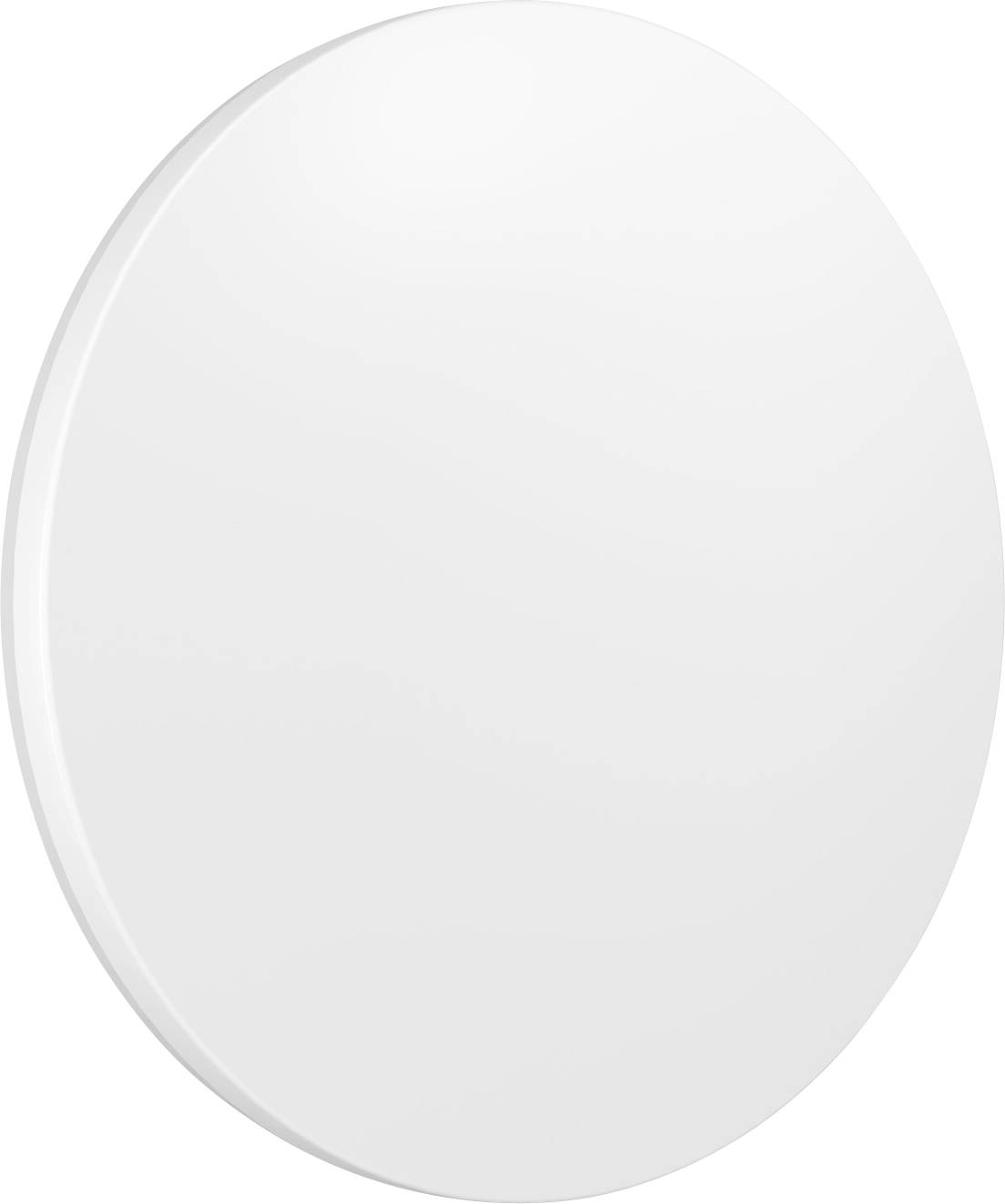

A blank white circular object with a smooth surface, possibly a plate or a disc, centered against a plain background.

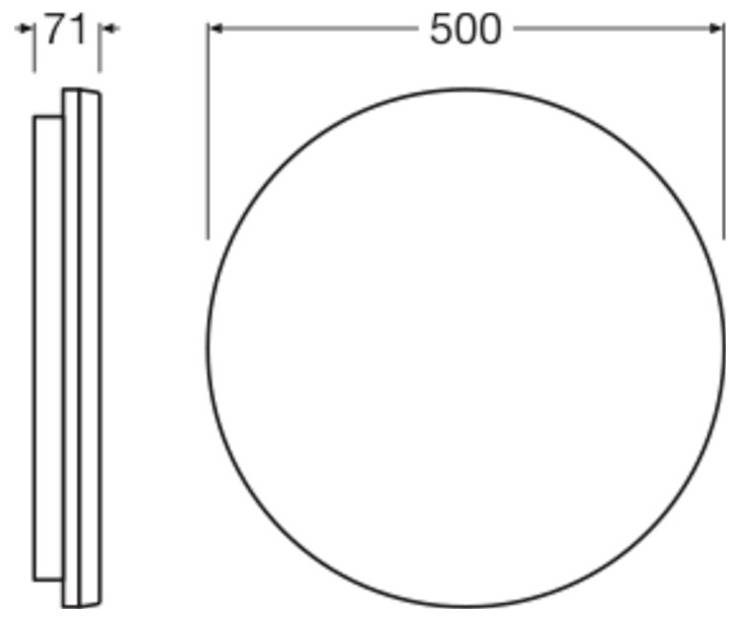

'Technical drawing of a round object with dimensions: diameter 500, depth 71.'

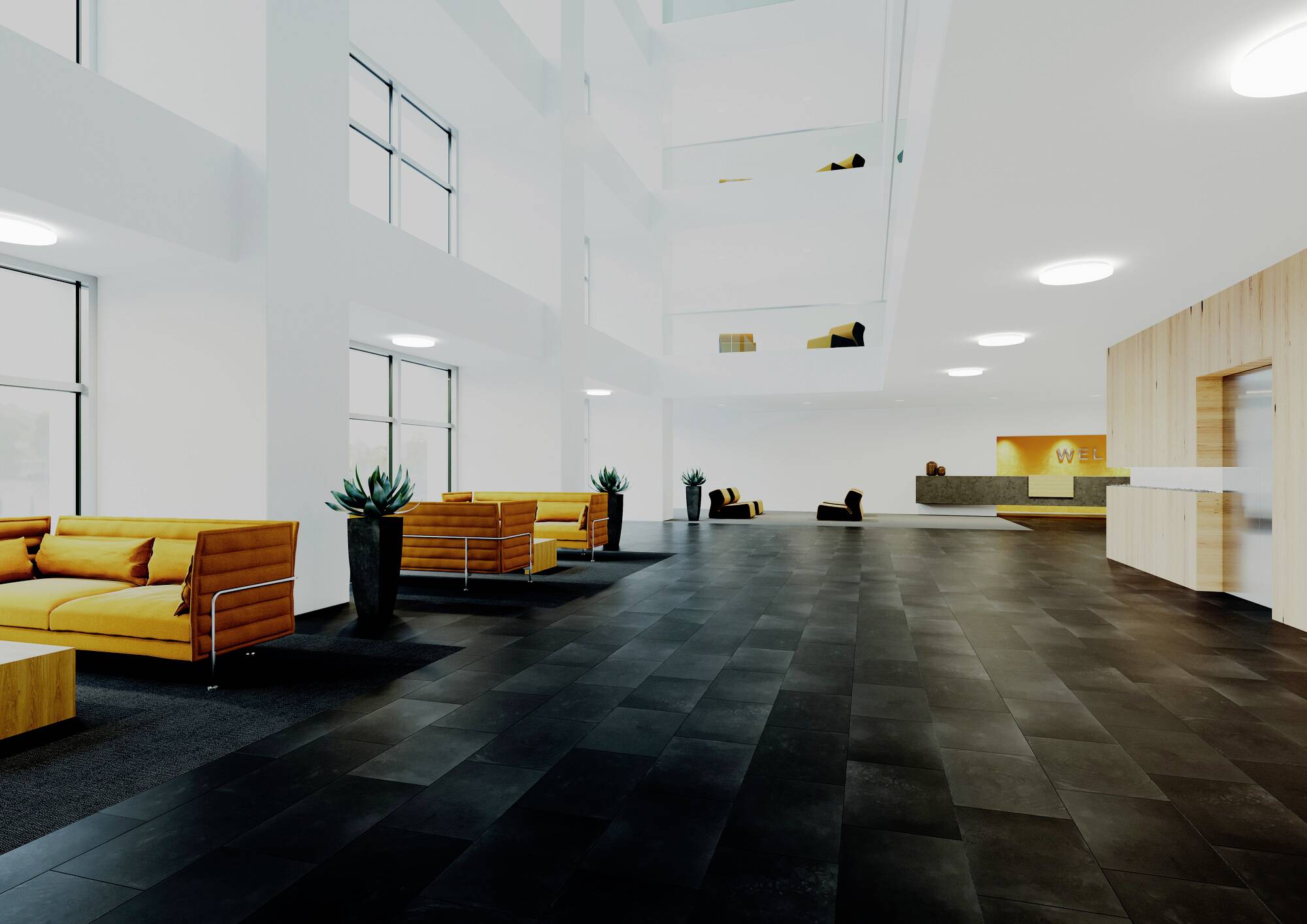

A spacious, modern lobby with large windows, black tiled floors, yellow sofas, plants, and a reception desk at the back.

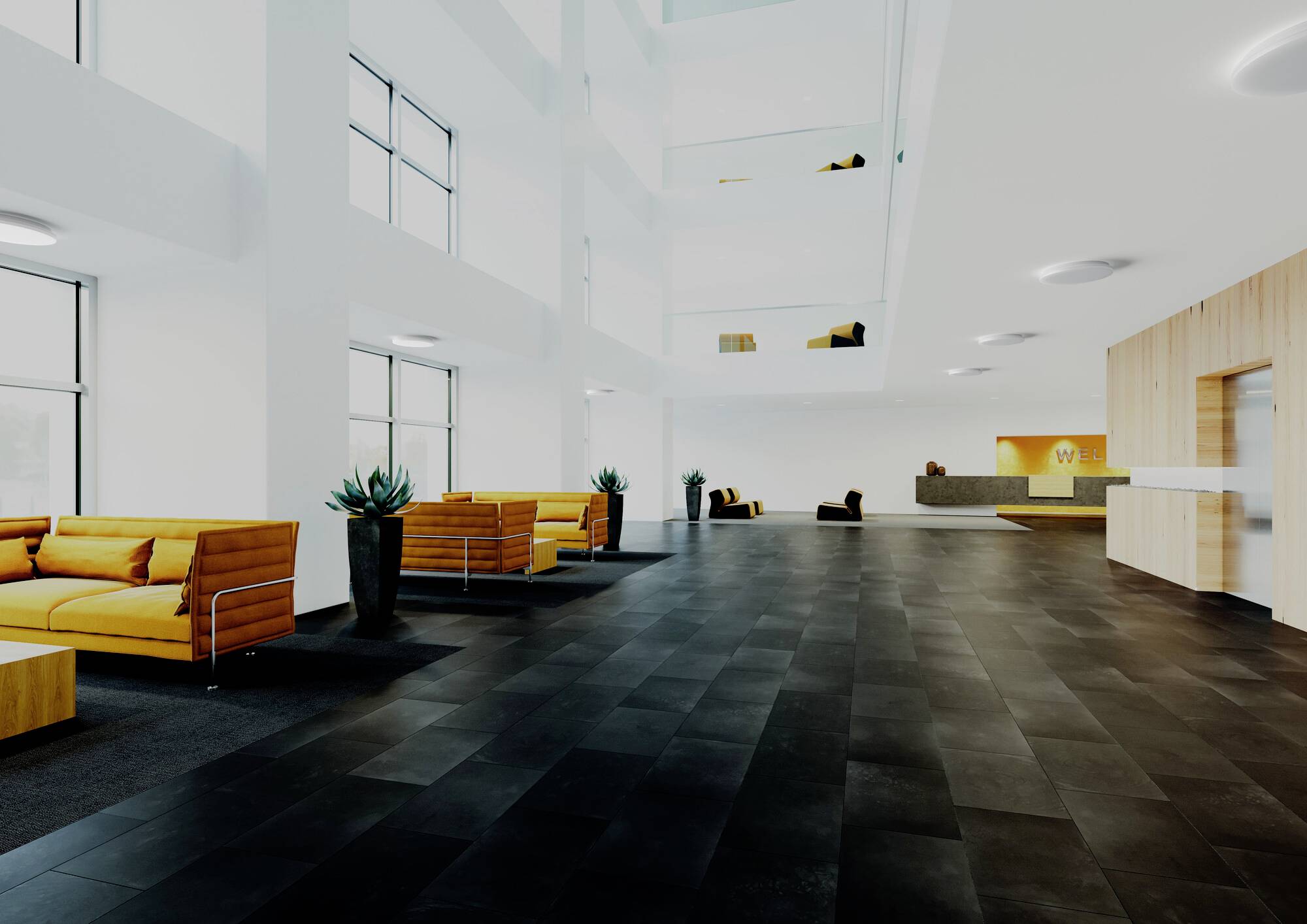

A modern office lobby with dark tiled floors, bright walls, and large windows. Orange sofas and plants decorate the space. Reception desk visible.

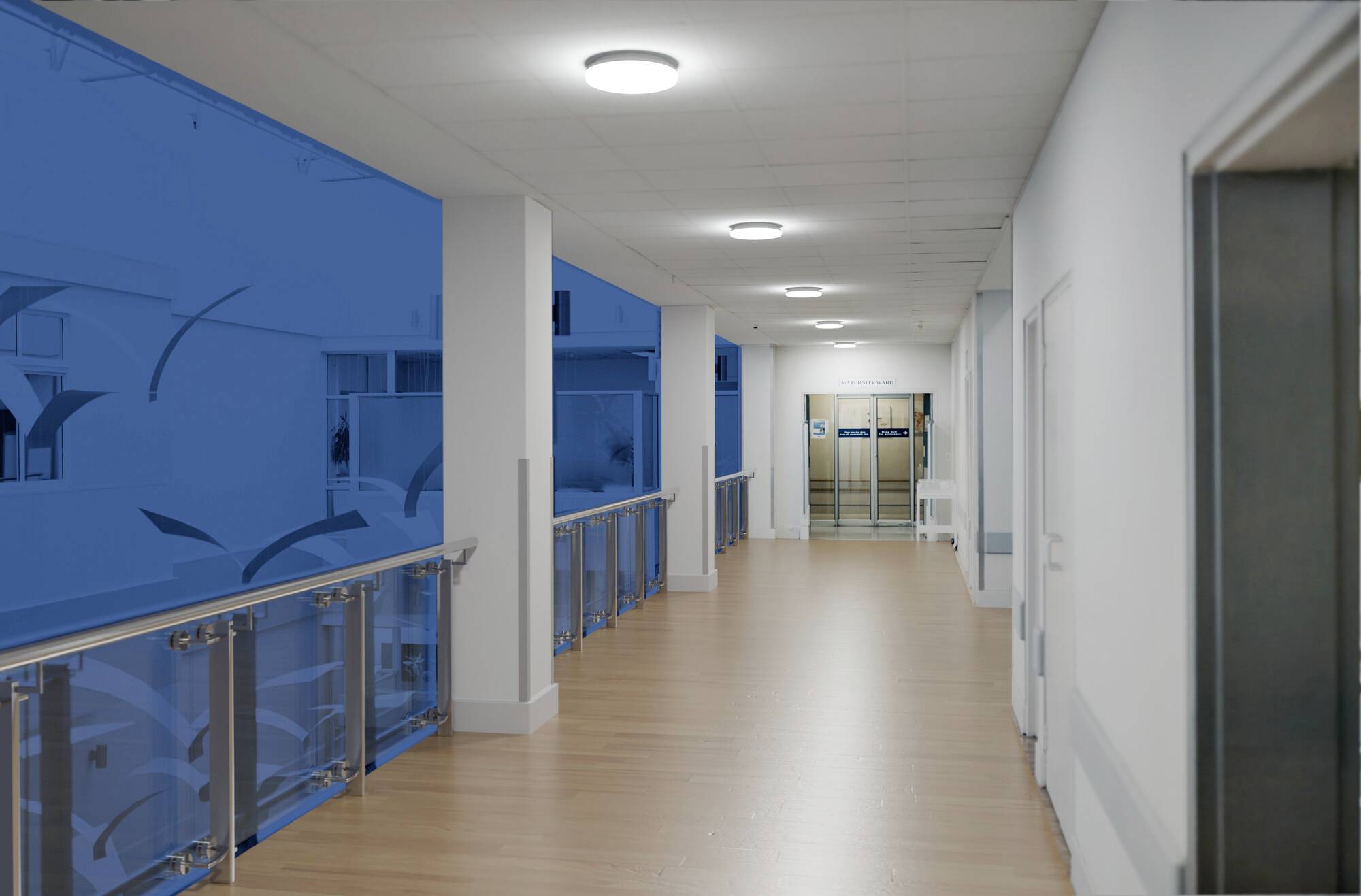

A corridor in a building with blue-tinted glass walls, wooden flooring, and ceiling lights. An elevator is visible at the end of the hallway.

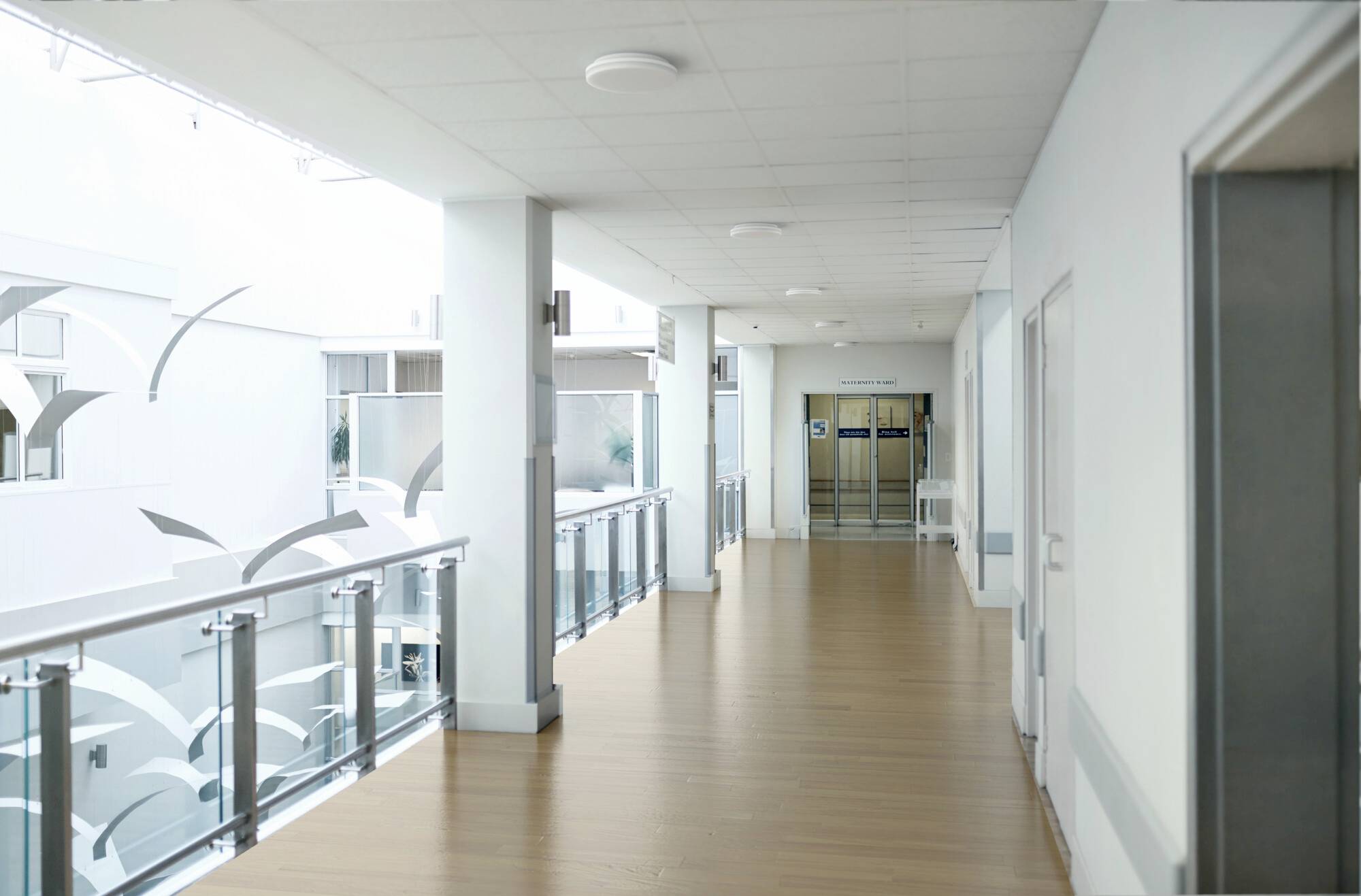

'A hospital corridor with wood floors, glass railings, and a sign indicating an elevator at the far end.'

1/6

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 100.83 / piece)

€ 100.83

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

SURFACE FLAT ROUND RD 500 P 27W ML 83040

Power= 27 W
Total luminous flux= 3780 lm
Colour temperature= 3000 K
Warm white, Cool white

Technical specifications

Dim: (Ø x H) 500.00 mm x 71.00 mm

Type: Circular

Operating voltage: 230 V

Product type: Ceiling light

Bulb type: LED (monochrome)

Height: 71.00 mm

Rating per bulb: 27 W

: 27 W

(Ø): 500.00 mm

Light features: Incl. sensor

Protection class: II

: IP54

Factory colour: White

Material: Polycarbonate (PC)

Weight: 3018.00 g

: n.rel.

Colour: Warm white
Cool white

Light bulb included: Yes

: 3000 K

Colour temperature range: 3000 K

Total luminous flux: 3780 lm

Circuits: 100000

: 100000 h

: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3645969 OSRAM HOMELIGHTING 4099854292552 SF FLAT RD 500 P 27W ML 83040 Ceiling light, LED ceiling light, LED wall light, Wall li

User & Safety Instructions

User & Safety Instructions 3645969 OSRAM HOMELIGHTING 4099854292552 SF FLAT RD 500 P 27W ML 83040 Ceiling light, LED ceiling light, LED wall light, Wall li

Conformity certificate

Conformity certificate 3645969 OSRAM HOMELIGHTING 4099854292552 SF FLAT RD 500 P 27W ML 83040 Ceiling light, LED ceiling light, LED wall light, Wall li

Description

Versatile round wall and ceiling lamp. Product features: Protection class IP54 (wall and ceiling mounting). Shock resistance: IK08. Life (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C). Polycarbonate (PC)-Case, PC-Diffusor. Ambient temperature range during operation: -20…+45 °C. Filament testing according to IEC 60695-2-12:850°C. 5-pole terminal, cable cross-section up to 5 x 2.5 mm². Through wiring possible For indoor use only, not suitable for outdoor use. Sensor version with high frequency sensor, corridor and grouping function. Product benefits: Easy upgradeability of light source, driver and sensor (EVERLOOP design). Very versatile by a selectable CCT and cotton setting (Multi Colour / Multi Lumen) at the driver. Interior lighting with an efficiency of up to 140 lm/W. High color consistency with SDCM 3. Easy electrical connection thanks to push-button connection terminal. Very homogeneous light with light background lighting effect. Advanced services such as power monitoring and remote maintenance possible with DALI versions. Application areas: Direct replacement for panel-mounted lights with integrated CFLni-lamps. Hallways. Stairs. Bathroom. Entrance. Technical equipment: EVERLOOP light: Extensions and replacement components available. Decorative silver frame available separately.
