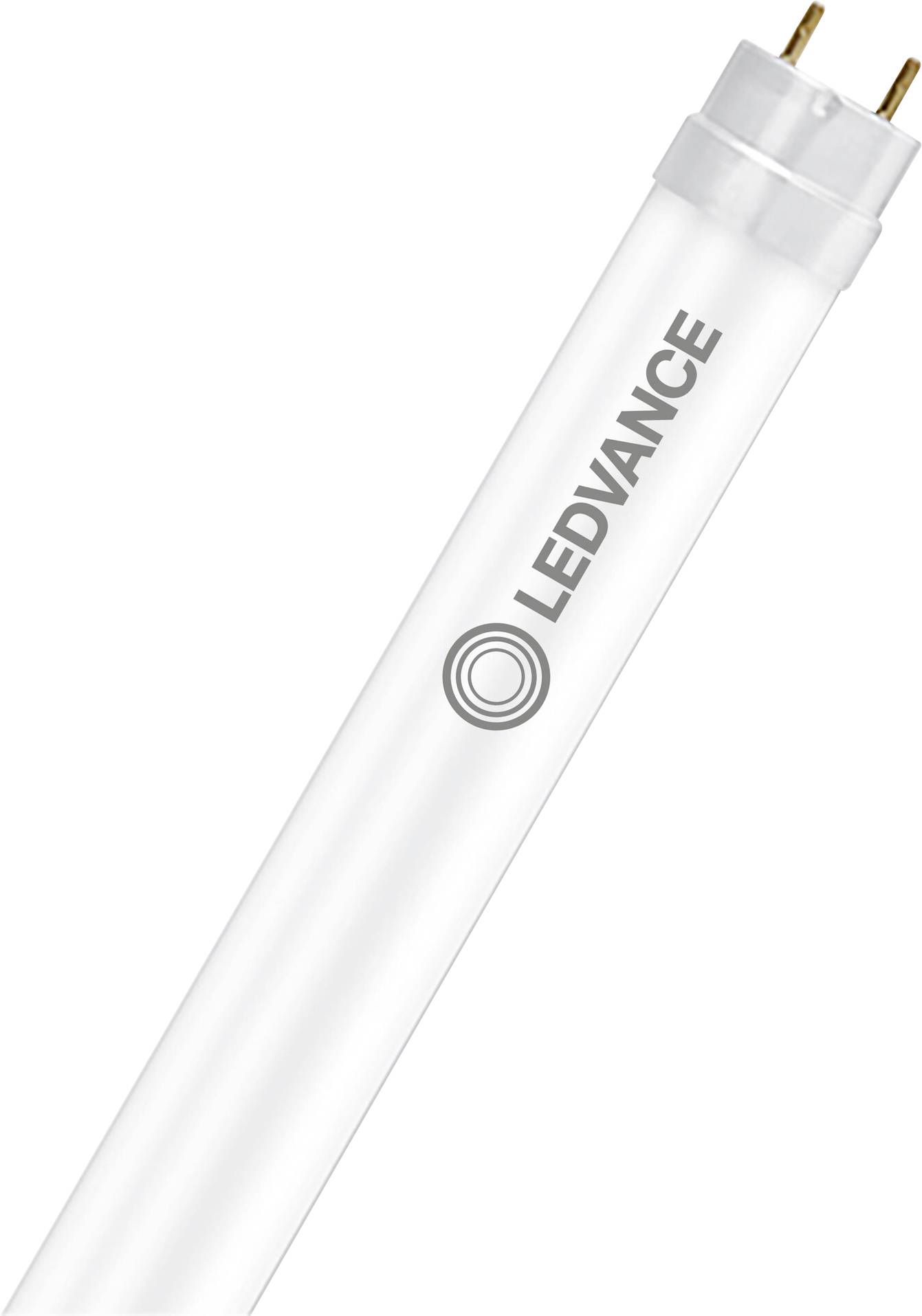

OSRAM HOMELIGHTING LED tube EEC: C (A - G) G13 Tube shape T8 CB 23.10 W Daylight white (Ø x H) 26.70 mm x 26.70 mm incl.
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
5% = € 0.48
€ 8.76
5
7% = € 0.68
€ 8.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
14-day return policy included
Highlights & Details
LED tube G13 23.10 W Daylight white EEC: C (A - G) T8 CB
- Power= 23.10 W
- Total luminous flux= 3700 lm
- Colour temperature= 6500 K
- Daylight white
Technical specifications
- Product type
LED tube
Tube shape
G13
23.10 W
- Power range
20 W - 39.9 W
- Colour
Daylight white
- Operated via
CB
- Total luminous flux
3700 lm
6500 K
- Colour temperature range
6500 K
No
75000 h
- Circuits
200000
- Operating voltage
230 V
- Length
1513.00 mm
- (Ø)
26.70 mm
- Content
1 pc(s)
C (A - G)
- Energy consumption
24.00 kWh/1000h
- Dim
(Ø x H) 26.70 mm x 26.70 mm
- No. of bulbs
1
- Weight
235.00 g
- Bulb shape
T8
- Light bulb features
incl. shard protection
- Material
Glass (lead-free)
IP20
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Type
T8
- Factory colour
Multicolour
- Height
26.70 mm
- Width
26.70 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3645958 OSRAM HOMELIGHTING LED tube EEC: C (A - G) G13 Tube shape T8 CB 23.10 W Daylight white (Ø x H) 26.70 mm x 26.70 mm incl.
User & Safety Instructions
User & Safety Instructions 3645958 OSRAM HOMELIGHTING LED tube EEC: C (A - G) G13 Tube shape T8 CB 23.10 W Daylight white (Ø x H) 26.70 mm x 26.70 mm incl.
Description
LED tubes for electromagnetic ballasts (conventional ballast) and mains voltage, splinter protection. Product features: LED replacement for conventional T8 fluorescent lamps with G13 socket in conventional ballast lights or at mains voltage. Multi lumen Function: 2 power settings can be selected (1200 mm, 1500 mm). LED tube made of glass with splinter protection for applications e.g. in the food industry. Single and tandem operation on conventional ballast (0.6 m version). Very long life: Up to 75,000 h. Protection class IP20. Mercury-free and RoHS compliant. Flicker arm according to EU 2019/2020 (SVM ≤ 0.4 / PstLM ≤ 1). Product benefits: Energy savings of up to 67% (compared to T8 fluorescent lamp). Simple, fast and safe replacement of lamps with or without rewiring. Very versatile by selectable power / lumen levels (1200 mm, 1500 mm). Thanks to glass technology, there's no hanging around. Support in the implementation of HACCP concepts from production to product presentation. Very high switching strength. Full brightness without warm-up phase, therefore Ideal suitable in combination with sensors. Also suitable for low temperature operation. Applications: General lighting in ambient temperatures from -20...+50 °C. Lighting in industrial manufacturing. Traffic zones and corridors. Supermarkets and department stores. Industry. Technical features: Suitable for use with low-loss and conventional ballasts. Legal notice: When replacing a T8 fluorescent lamp, total energy efficiency and light distribution depend on the design of the installation. Safety notes: Not suitable for use with electronic ballast. For outdoor use, it can be used in suitable wet room lights as per the data sheet and installation instructions. Not suitable for emergency lighting. Disconnect power before installation.
This text is machine translated.
This text is machine translated.
Hints
Not suitable for use with electronic ballast.,Outdoor use is possible in suitable wet room lights according to data sheet and installation instructions.,Not suitable for emergency lighting.,Disconnect power supply before installation.
