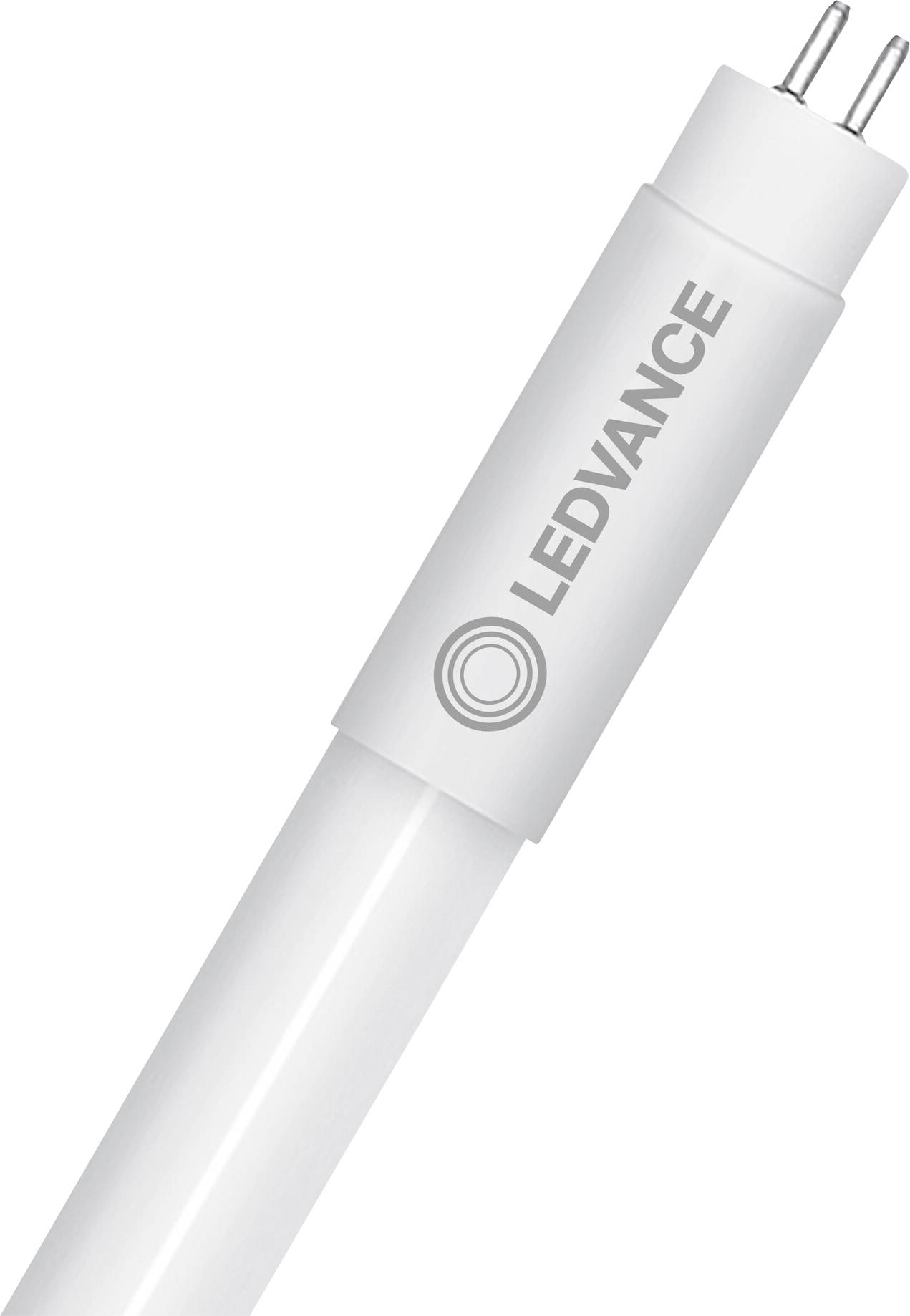

OSRAM HOMELIGHTING LED tube EEC: D (A - G) G5 Tube shape T5 Electronic ballast 7 W Cool white (Ø x H) 18.50 mm x 18.50 m
EAN:
Part number:
Item no:
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14-day return policy included
Highlights & Details
LED tube G5 7 W Cool white EEC: D (A - G) T5 Electronic ballast
- Power= 7 W
- Total luminous flux= 1050 lm
- Colour temperature= 4000 K
- Cool white
Technical specifications
- Product type
LED tube
Tube shape
G5
7 W
- Power range
5 W - 7.4 W
- Colour
Cool white
- Operated via
Electronic ballast
- Total luminous flux
1050 lm
4000 K
- Colour temperature range
4000 K
No
60000 h
- Circuits
200000
- Operating voltage
50 V

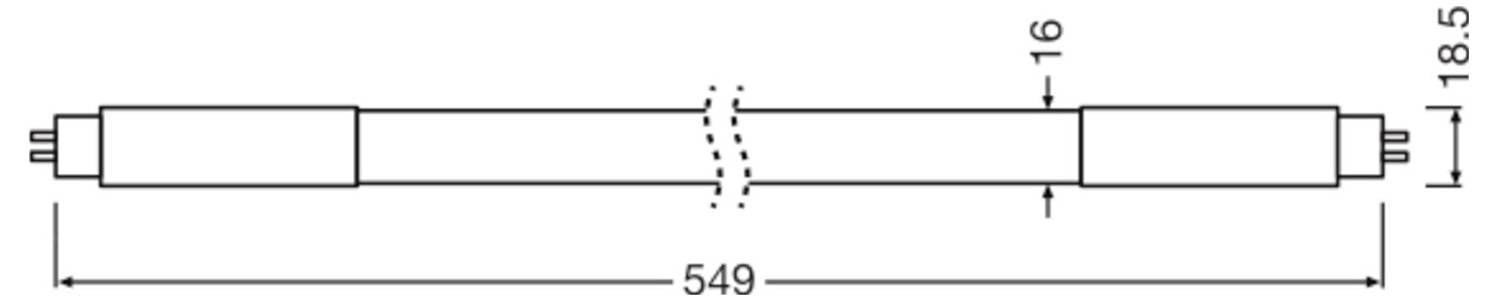

- Length
563.00 mm
- (Ø)
18.50 mm
- Content
1 pc(s)
D (A - G)
- Energy consumption
7.00 kWh/1000h
- Dim
(Ø x H) 18.50 mm x 18.50 mm
- No. of bulbs
1
- Colour consistency (SDCM)
5
- Weight
77.00 g
- Light bulb features
incl. shard protection
- Material
Glass
IP20
- Max. temperature
45 °C
- Min. temperature
-20 °C
- Type
T5
- Factory colour
White
- Height
18.50 mm
- Width
18.50 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3645961 OSRAM HOMELIGHTING LED tube EEC: D (A - G) G5 Tube shape T5 Electronic ballast 7 W Cool white (Ø x H) 18.50 mm x 18.50 m
User & Safety Instructions
User & Safety Instructions 3645961 OSRAM HOMELIGHTING LED tube EEC: D (A - G) G5 Tube shape T5 Electronic ballast 7 W Cool white (Ø x H) 18.50 mm x 18.50 m
Conformity certificate
Conformity certificate 3645961 OSRAM HOMELIGHTING LED tube EEC: D (A - G) G5 Tube shape T5 Electronic ballast 7 W Cool white (Ø x H) 18.50 mm x 18.50 m
Description
LED tubes for electronic ballasts, splinter protection Product features: Retrofit replacement of existing T5 lamps on HF ballasts. Glass bulb with splitter protection for applications such as in the food industry. High color consistency: ≤ 5 SDCM (threshold unit). Life up to 60,000 h. flicker-poor according to EU 2019/2020 (SVM ≤ 0.4 / PstLM ≤ 1). Protection class: IP20 Compatible with many conventional electronic ballasts. Product advantages: No hanging thanks to glass technology. Simple, fast and safe replacement of lamps without rewiring. High luminous flux for demanding lighting tasks. Also suitable for low temperature operation. Applications: General lighting in ambient temperatures from -20…+45 °C. Offices, public facilities. Supermarkets and department stores. Industry. Legal notice: When replacing a T5 fluorescent lamp, total energy efficiency and light distribution depend on the type of installation. Safety instructions: For outdoor use, suitable wet room lights are available in accordance with data sheet and installation instructions. The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the TC temperature on the product before installation. All electrical connections must be made by qualified personnel only. Lamp is not suitable for emergency lighting operation.
This text is machine translated.
This text is machine translated.
Hints
For outdoor use, suitable wet room lights in accordance with the data sheet and installation instructions are possible.,The operating temperature range of the LED tube is limited. If you are in doubt about the suitability of the application, please measure the TC temperature of the product before installation.,All electrical connections must be made by qualified personnel only.,Lamp is not suitable for emergency lighting operation.
