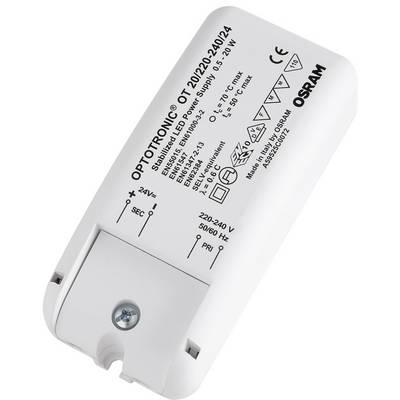

OSRAM HOMELIGHTING OT 20/220-240/24 VS20 LED transformer Constant voltage 20 W 0.02 - 0.83 A 24 V DC Outdoor 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
OT 20/220-240/24 VS20
- Constant voltage
- 24 V DC
- 0.02 - 0.83 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 109 x 50 x 35 mm
- Factory colour
Colourless
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Test mark
ENEC 10 / VDE / VDE-EMC / GOST / C-Tick
- Max. output current
0.83 A
- Output current (max.) - rounded
830 mA
- Operating voltage
230 V AC
- Protection class
IP20
- LED driver features
Outdoor
IP20
- Connection
Punchdown block
- Max. power
20 W
- Output current (min.)
0.02 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Weight
108 g
- Power (min.)
20 W
- Power range
20 up to 20 W
- Width
50 mm
- Height
35 mm
- Length
109 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 756706 OSRAM HOMELIGHTING OT 20/220-240/24 VS20 LED transformer Constant voltage 20 W 0.02 - 0.83 A 24 V DC Outdoor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 756706 OSRAM HOMELIGHTING OT 20/220-240/24 VS20 LED transformer Constant voltage 20 W 0.02 - 0.83 A 24 V DC Outdoor 1 pc(s)
Description
Versatile scope with output powers of up to 240 W ·
Very high efficiency and reliability · Constant luminous flux for very low and high temperatures by Smart Power Supply
This text is machine translated.
Very high efficiency and reliability · Constant luminous flux for very low and high temperatures by Smart Power Supply
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
