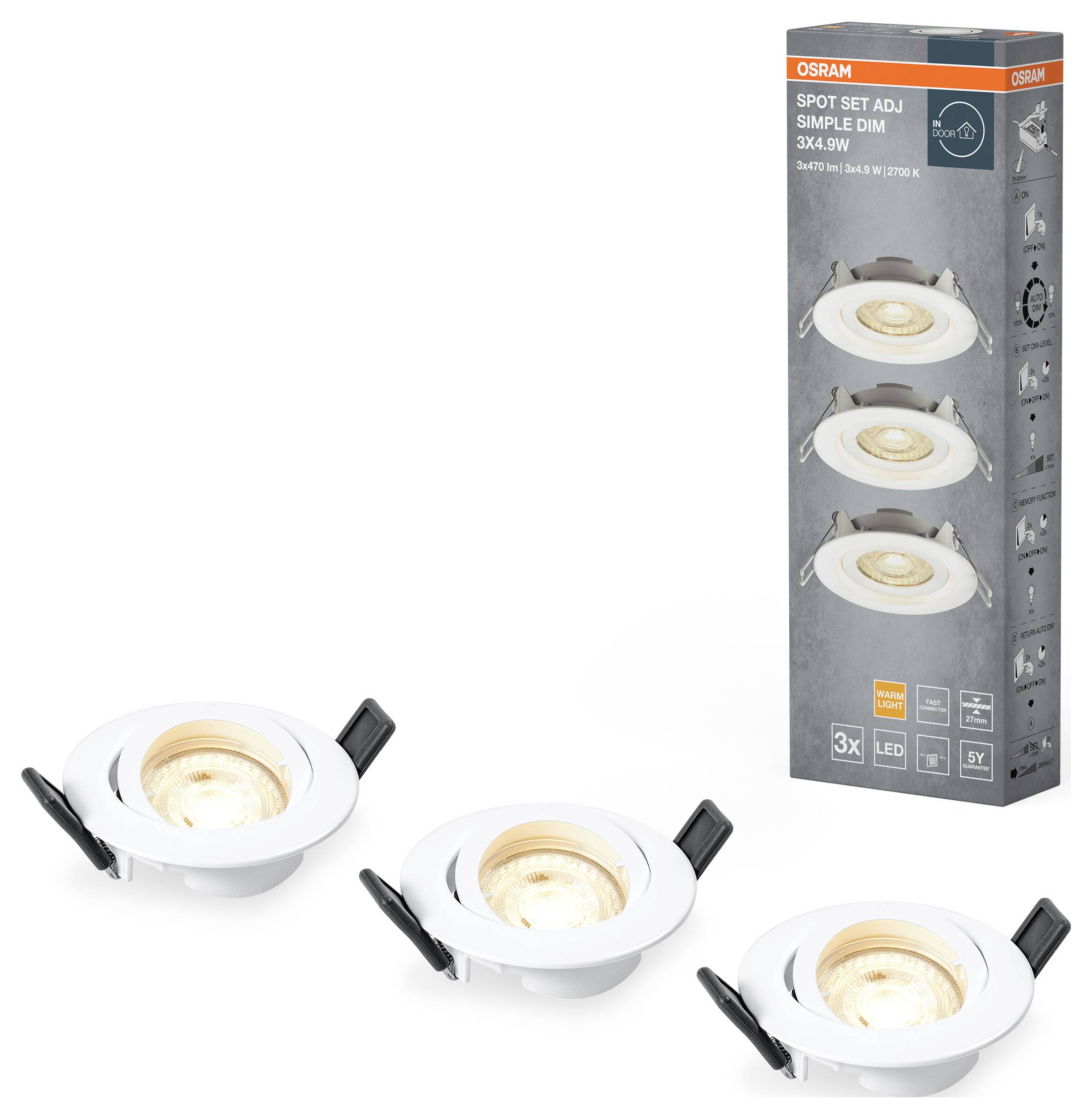

OSRAM HOMELIGHTING Spot Set Adj Simple Dim 3 x 4.9W 2700K White 4099854445842 LED outdoor wall light LED module Built-in
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 3 pc(s))
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
Highlights & Details
OSRAM recessed spotlight set with continuously dimmable white
- Power= 4.90 W Total luminous flux= 400 lm Colour temperature= 2700 K Warm white
Technical specifications
- Product type
LED outdoor wall light
- Operating voltage
230 V
- No. of bulbs
3
- Bulb type
LED module
Built-in LED
- Rating per bulb
4.9 W
4.90 W
2700 K
- Colour
Warm white
- Total luminous flux
400 lm
- Light features
Dimmable via light switch
- Protection class
II
IP20
- Factory colour
White
- Material
Aluminium
- Weight
90.00 g

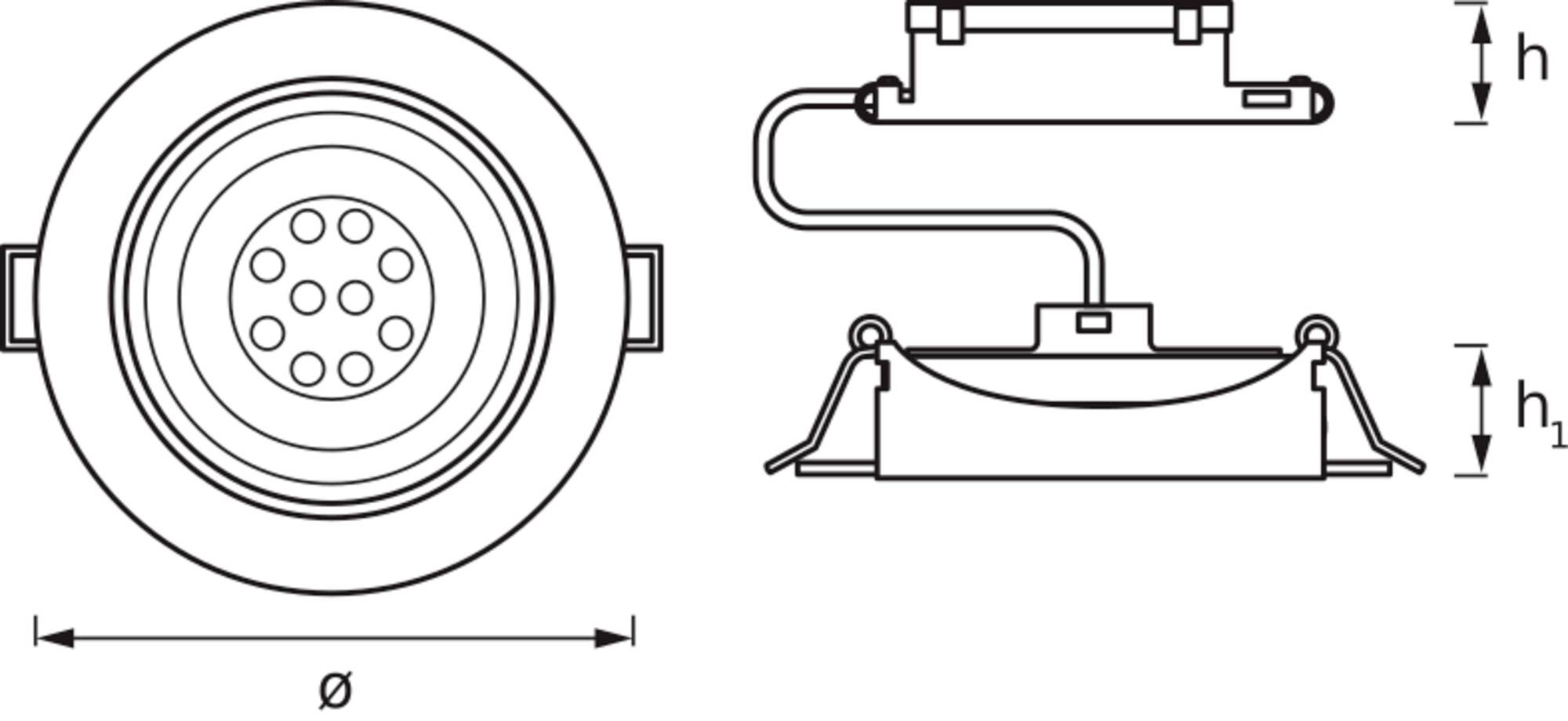

- Dim
(Ø x H) 90.00 mm x 27.50 mm
n.rel.
- Light bulb included
Yes
- Height
27.50 mm
- (Ø)
90.00 mm
Yes
- Radiation angle
110°
Documents & Downloads
Datasheet
Datasheet 3438495 OSRAM HOMELIGHTING Spot Set Adj Simple Dim 3 x 4.9W 2700K White 4099854445842 LED outdoor wall light LED module Built-in
User & Safety Instructions
User & Safety Instructions 3438495 OSRAM HOMELIGHTING Spot Set Adj Simple Dim 3 x 4.9W 2700K White 4099854445842 LED outdoor wall light LED module Built-in
Conformity certificate
Conformity certificate 3438495 OSRAM HOMELIGHTING Spot Set Adj Simple Dim 3 x 4.9W 2700K White 4099854445842 LED outdoor wall light LED module Built-in
Warranty Terms
Warranty Terms 3438495 OSRAM HOMELIGHTING Spot Set Adj Simple Dim 3 x 4.9W 2700K White 4099854445842 LED outdoor wall light LED module Built-in
Description
Recessed lights with continuous dimming function via wall switch. Product features: With integrated LED module and driver. Minimal installation depth. Set of 3 lights. Adjustable head Case material: Aluminium. Product benefits: WAGO quick-connect terminal for easy and secure installation. Timeless design Easy to Set Up Daisy-chain up to 10 units. Applications: Interior applications. Corridors, entrance areas, stairways, living room, cellar. Suspended ceilings. Technical equipment: Complete mounting and connection accessories included. Safety instructions: All electrical connections must be made by qualified personnel only. Caution, risk of electric shock. The lamps are not designed for covering with heat insulating material.
This text is machine translated.
This text is machine translated.
Hints
All electrical connections must be made by qualified personnel only.,Caution, risk of electric shock.,The lamps are not intended for the cover of heat-insulating material.
