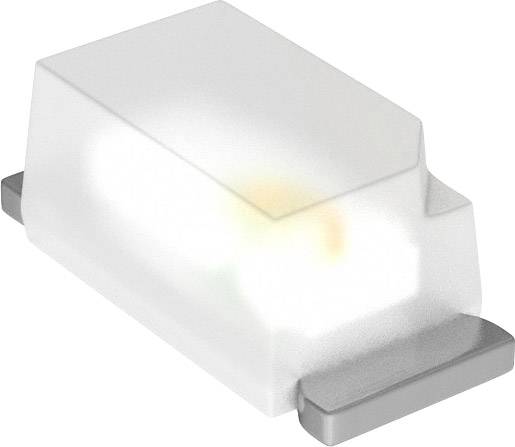

Image similar
Image similar
OSRAM LO L296-Q2S1-24-Z SMD LED 0603 Orange 157 mcd 160 ° 20 mA 2 V
EAN:
Part number:
Item no:
Product type
SMD LED
Forward voltage U(F)
2 V
Forward current I(F)
20 mA
Type
SMD
Type
0603
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
15
-
€ 0.16
45
12% = € 0.02
€ 0.14
75
19% = € 0.03
€ 0.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 15
Total (€ 0.16 / piece)
€ 2.40
plus VAT.
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Series: SmartLED
- Product type
SMD LED
- Type
LO L 296-Q2S 1-24-Z
- Factory colour
Orange
- Forward voltage U(F)
2 V
- Forward current I(F)
20 mA
- Type
SMD
- Type
0603
- Light intensity I(V)
157 mcd
- Wavelength
605 nm
- Radiation angle
160°
- Type
Diffused
- Dim
(L x W x H) 1.7 x 0.8 x 0.65 mm
- Length
1.7 mm
- Technology
AlInGaP
- Width
0.8 mm
- Min. temperature
-40 °C
- Height
0.65 mm
- Max. temperature
+100 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1007123 OSRAM LO L296-Q2S1-24-Z SMD LED 0603 Orange 157 mcd 160 ° 20 mA 2 V
User & Safety Instructions
User & Safety Instructions 1007123 OSRAM LO L296-Q2S1-24-Z SMD LED 0603 Orange 157 mcd 160 ° 20 mA 2 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
