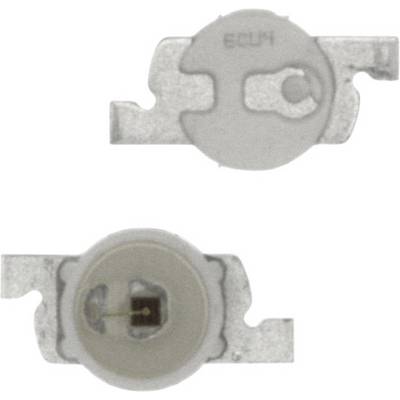

OSRAM LR P47F-U2AB-1-1-Z SMD LED SMD 2 Red 1180 mcd 120 ° 30 mA 2.2 V
EAN:
Part number:
Item no:
Product type
SMD LED
Forward voltage U(F)
2.2 V
Forward current I(F)
30 mA
Type
SMD
Type
SMD 2
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
15
-
€ 0.29
45
10% = € 0.03
€ 0.26
75
14% = € 0.04
€ 0.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 15
Total (€ 0.29 / piece)
€ 4.35
plus VAT.
14-day return policy included
Highlights & Details
SMD LED
Our service for you
Technical specifications
- Series: PointLED
- Product type
SMD LED
- Type
LR P47 F-U2 from -1-1-Z
- Factory colour
Red
- Forward voltage U(F)
2.2 V
- Forward current I(F)
30 mA
- Type
SMD
- Type
SMD 2
- Light intensity I(V)
1180 mcd
- Wavelength
625 nm
- Radiation angle
120°
- Type
Clear
- Dim
(L x W x H) 3.4 x 1.9 x 0.88 mm
- Length
3.4 mm
- Technology
AlInGaP
- Width
1.9 mm
- Min. temperature
-40 °C
- Height
0.88 mm
- Max. temperature
+100 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 819919 OSRAM LR P47F-U2AB-1-1-Z SMD LED SMD 2 Red 1180 mcd 120 ° 30 mA 2.2 V
User & Safety Instructions
User & Safety Instructions 819919 OSRAM LR P47F-U2AB-1-1-Z SMD LED SMD 2 Red 1180 mcd 120 ° 30 mA 2.2 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
