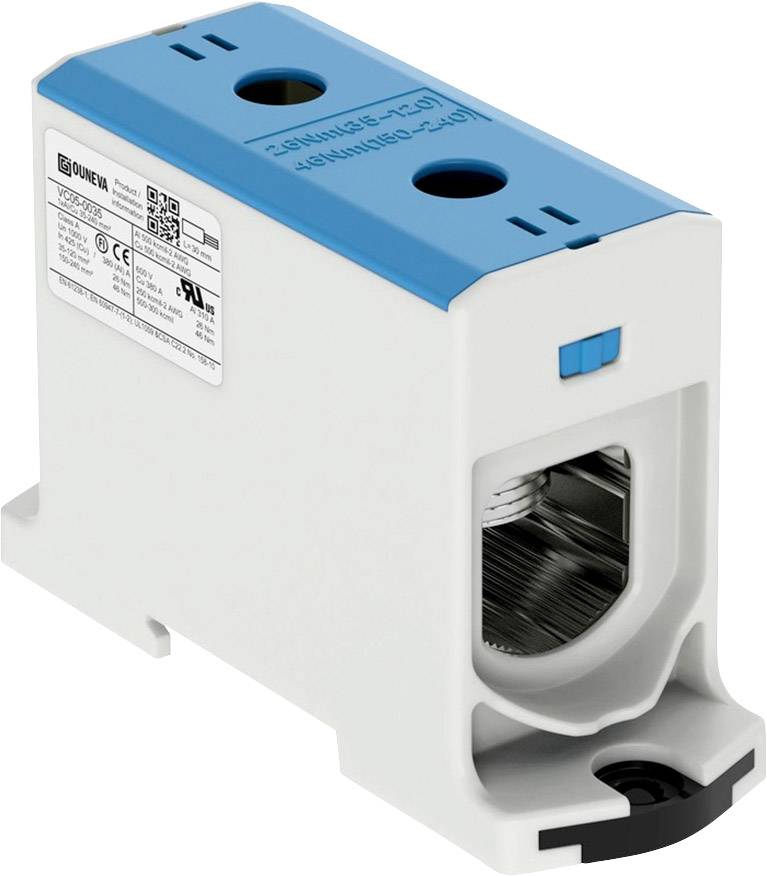

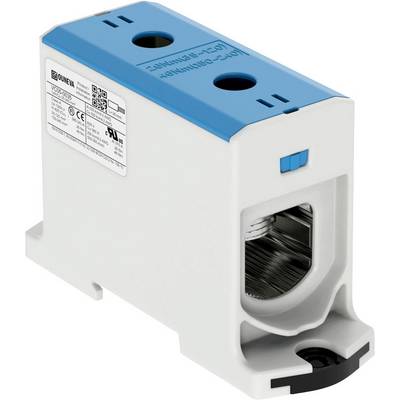

Ouneva Group VC05-0035 Distribution block Screws Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
240 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
425 A
Datasheet (PDF)
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Distribution block
- Connection
Screws
- Cross section (flexible) (min.)
35 mm²
- Cross section (flexible) (max.)
240 mm²
- Cross section (inflexible) (min.)
35 mm²
- Cross section (inflexible) (max.)
35 mm²
- Number of pins
1
- Factory colour
Blue
- Nominal current
425 A
- Nominal current - rounded value
425 A
- Nominal voltage
1000 V
- Manufacturer part #
VC05-0035
- Content
1 pc(s)
- Type
VC05-0035
- RoHS-compliant
Yes
- Fitting type (details)
DIN rail & screw mounting
- Temperature range
+80 °C
Documents & Downloads
Datasheet
Datasheet 2255568 Ouneva Group VC05-0035 Distribution block Screws Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2255568 Ouneva Group VC05-0035 Distribution block Screws Blue 1 pc(s)
