Image similar
Image similar

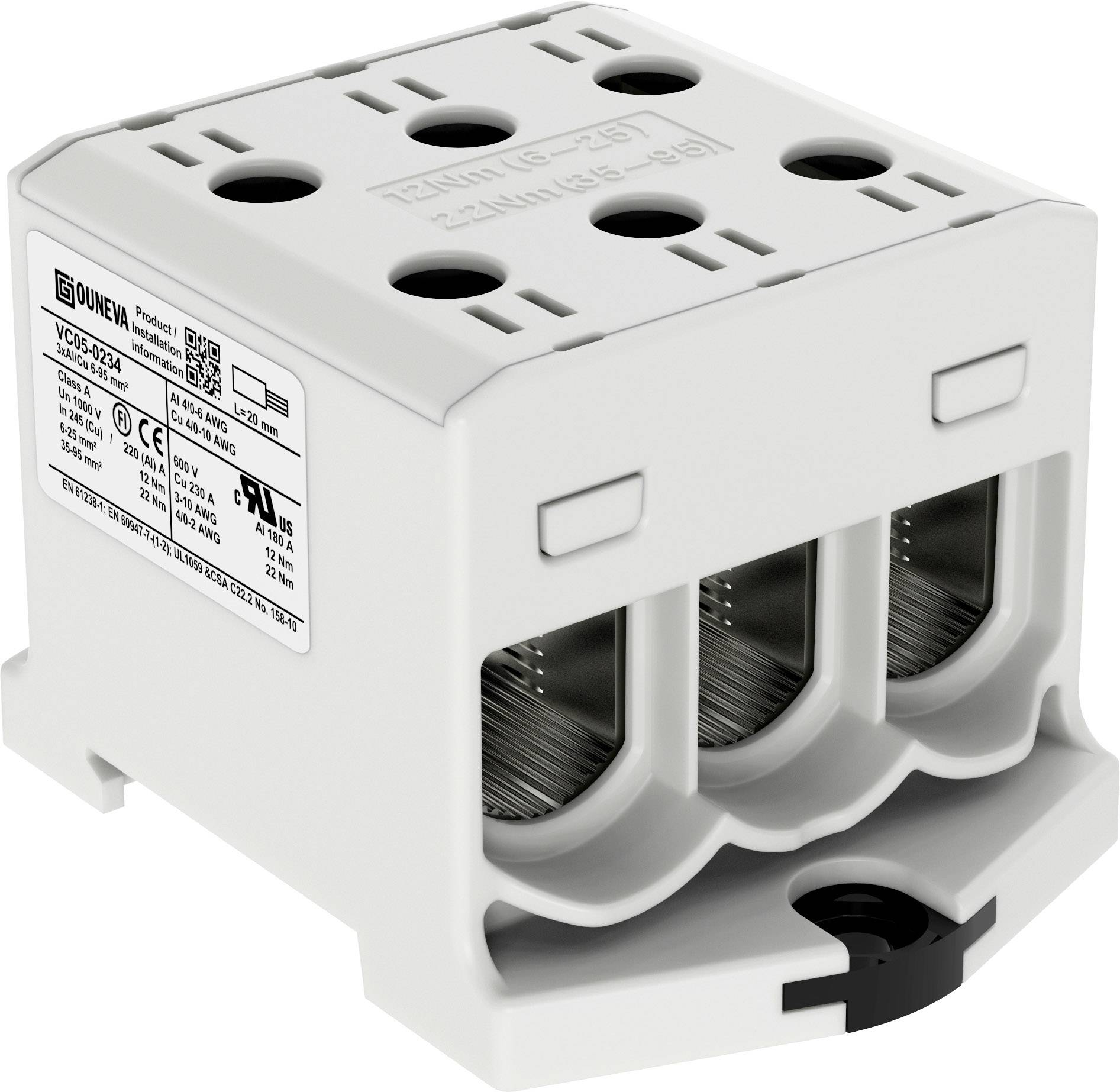

Ouneva Group VC05-0234 Distribution block Screws Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
95 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
245 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Only 2 Piece(s) available
Highlights & Details
- VC05-0234
Technical specifications
- Product type
Distribution block
- Connection
Screws
- Cross section (flexible) (min.)
6 mm²
- Cross section (flexible) (max.)
95 mm²
- Cross section (inflexible) (min.)
6 mm²
- Cross section (inflexible) (max.)
6 mm²
- Number of pins
1
- Factory colour
Grey
- Nominal current
245 A
- Nominal current - rounded value
245 A
- Nominal voltage
1000 V
- Manufacturer part #
VC05-0234
- Content
1 pc(s)
- Type
VC05-0234
- RoHS-compliant
Yes
- Fitting type (details)
DIN rail & screw mounting, distributor
- Temperature range
+80 °C
Documents & Downloads
Datasheet
Datasheet 2255487 Ouneva Group VC05-0234 Distribution block Screws Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2255487 Ouneva Group VC05-0234 Distribution block Screws Grey 1 pc(s)
