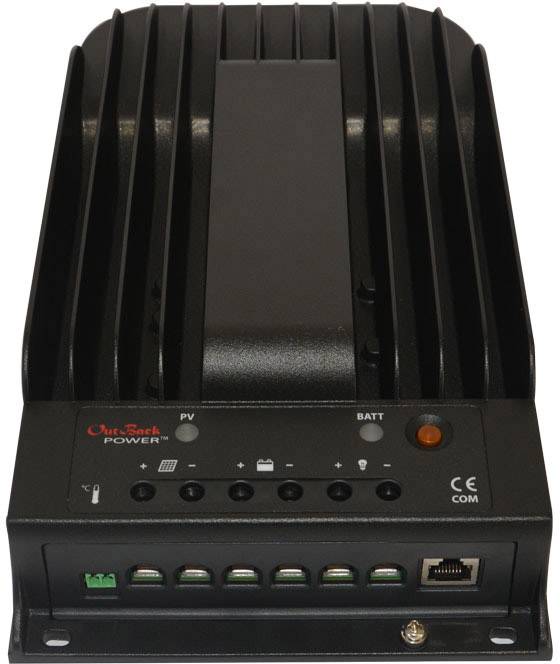

OutBack Power Charge controller MPPT 12 V, 24 V 40 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Outback FLEXmax Micro Series
- MPPT charge regulator 40A
- 12 to 24VDC battery voltage
- 150 VDC max PV voltage
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
390 Wp
- Charging current (max.)
40 A
- Matching rechargeable battery
SLA
- Control type
MPPT
- Dim
(L x W x H) 64 x 303 x 183 mm
- Weight
2.9 kg
- Current load
40 A
- Module load (max.)
40 A
- Width
303 mm
- Height
183 mm
- Length
64 mm
Documents & Downloads
Datasheet
Datasheet 1900381 OutBack Power Charge controller MPPT 12 V, 24 V 40 A
User & Safety Instructions
User & Safety Instructions 1900381 OutBack Power Charge controller MPPT 12 V, 24 V 40 A
Conformity certificate
Conformity certificate 1900381 OutBack Power Charge controller MPPT 12 V, 24 V 40 A
Description
The Outback FLEXmax family convinces through innovative functions in the area of MPP tracking. Outback has expanded its range of products for smaller performance applications for 12/24 VDC applications with the FM Micro 30 and 40.
