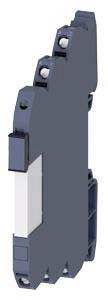

Output coupler Snap-in Siemens 3RQ3118-1AE00 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
Output coupler
Contact type

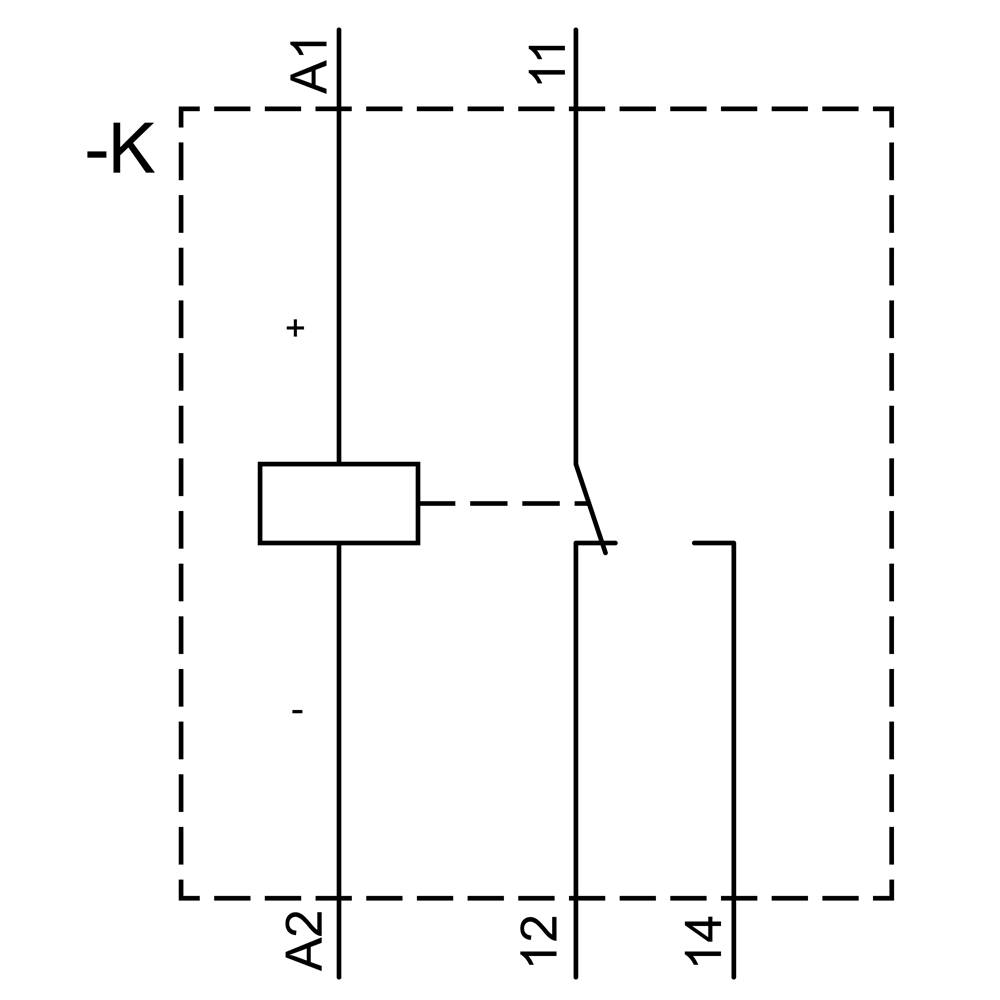

1 change-over
Mounting type
Snap-in
Type
3RQ3118-1AE00
Contact material
AgSnO<sub>2</sub>
Datasheet (PDF)
Technical specifications
- Protection class: IP20
- Operating current: 3 A
- Wire stripping length: 6 mm
- Surge voltage resistance: 4000 V
- Thermal current 6 A
- Control supply voltage: 115V
- Control supply voltage frequency: 50/60 Hz
- Product type
Output coupler
- Type
3RQ3118-1AE00
- Contact type
1 change-over
- Contact material
AgSnO2
- Electrical lifespan
100000
- Durability
1.0E7
- Mounting type
Snap-in
- Connection
Screws
- Min. temperature
-25 °C
- Max. temperature
+60 °C

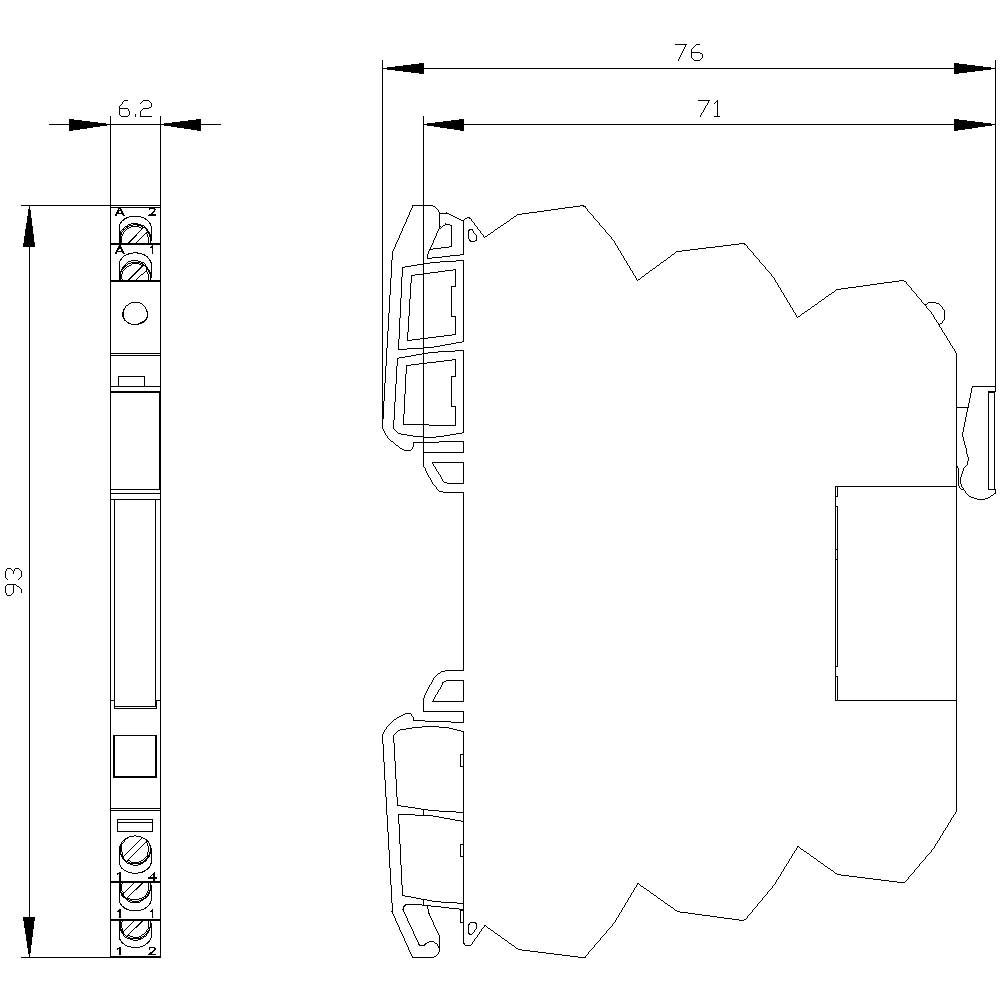

- Width
6.2 mm
- Height
93 mm
- Depth
76 mm
- Dim
(W x H x D) 6.2 x 93 x 76 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Weight
40 g
Documents & Downloads
Datasheet
Datasheet 1698922 Output coupler Snap-in Siemens 3RQ3118-1AE00 1 change-over 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1698922 Output coupler Snap-in Siemens 3RQ3118-1AE00 1 change-over 1 pc(s)
Description
Load feeder fuseless, Direct-on-line starting 400 V AC, Size S2 62 ... 65 A 20 ... 33 V AC/DC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 100 kA 1 NO+1 NC (contactor) with circuit (integrated)
