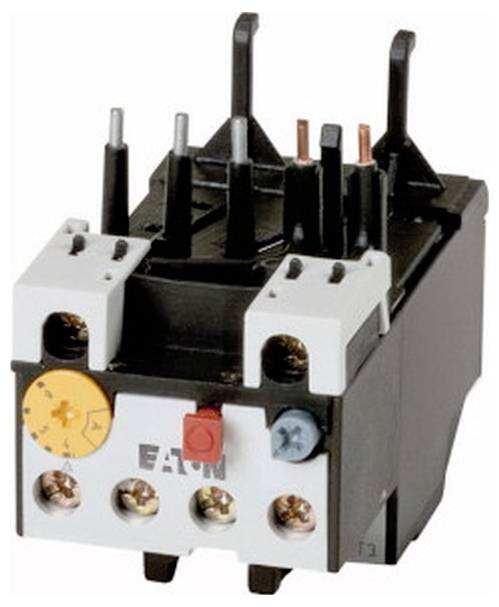

Overload relay 690 V (max) 1 breaker, 1 maker Eaton 278434 1 pc(s)
EAN:
Part number:
Item no:
Product type
Overload relay
Functions
Reset function
Max. operating voltage
690 V
Contact type
1 breaker
1 maker
Type
278434
Technical specifications
- Product type
Overload relay
- Type
278434
- Functions
Reset function
- Max. operating voltage
690 V
- Operating voltage
690 V (max)
- Amperage adjustment range (min.)
0.4 A
- Amperage adjustment range (max.)
0.6 A
- Adjustment range (amperage)
0.4 - 0.6 A
- Contact type
1 breaker
1 maker
- Connection
Screws
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818715 Overload relay 690 V (max) 1 breaker, 1 maker Eaton 278434 1 pc(s)
Description
Motor protection relay, assortment: Motor protection relays ZB till 150 A, Accessories: Motor protection relay, size: ZB12, phase failure sensitivity: IEC/EN 60947, VDE 0660 Part 102, Description: Test/off button, Manual/auto reset button, tripping, mounting type: Direct mounting, Auxiliary contacts S = closer: 1 S, auxiliary contacts NC = opener: 1 NC, can be used for: DILM7, DILM9, DILM12, DILM15,, DIULM7, DIP9, DILM12,, SDAINLM12,, SDAINLM16, SDAINLM22, standards and regulations: IEC/EN 60947, VDE 0660, UL, CSA, protection class IP20
