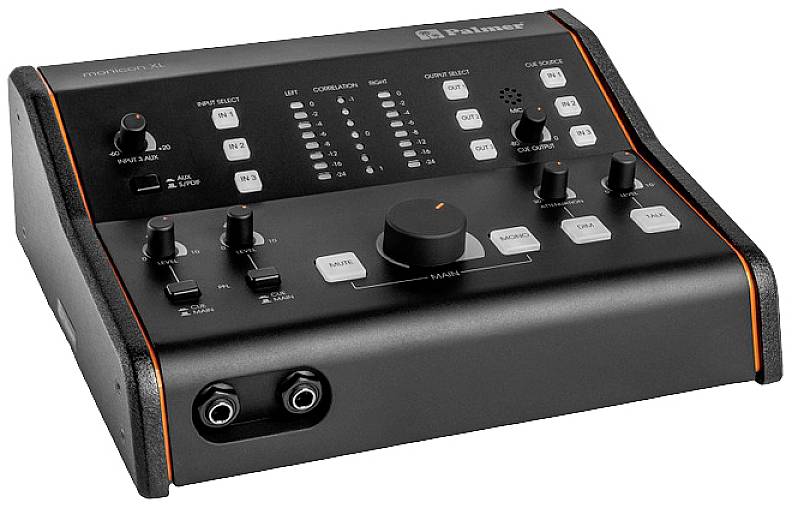

A black audio mixer displayed with multiple buttons and connections. Markings for volume controls and various inputs.

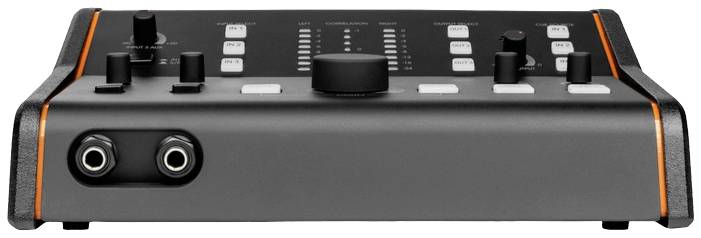

A grey audio interface with multiple knobs and buttons, two jack sockets at the front.

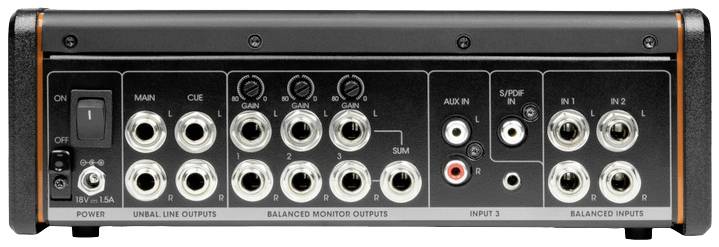

An audio device with multiple outputs: two 'Unbalanced Line Outputs', three 'Balanced Monitor Outputs', 'Aux In', 'SPDIF In', and 'Balanced Inputs'.

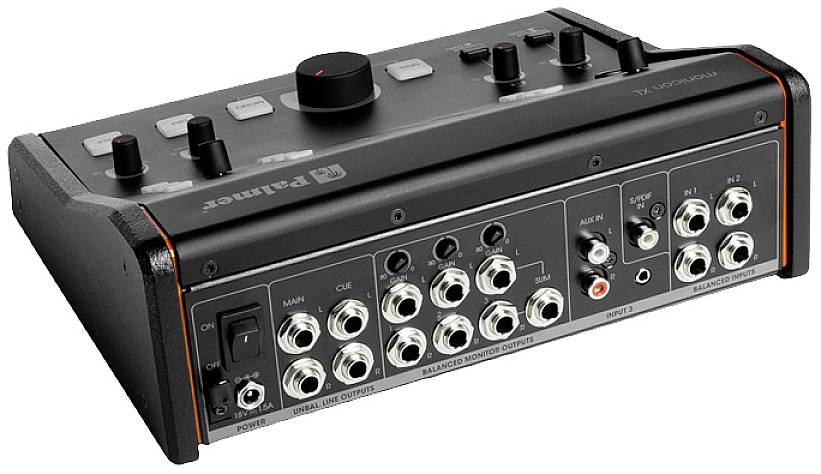

A mixing desk with multiple rotary controls and connection sockets on the front panel. It features inputs and outputs for audio connections.

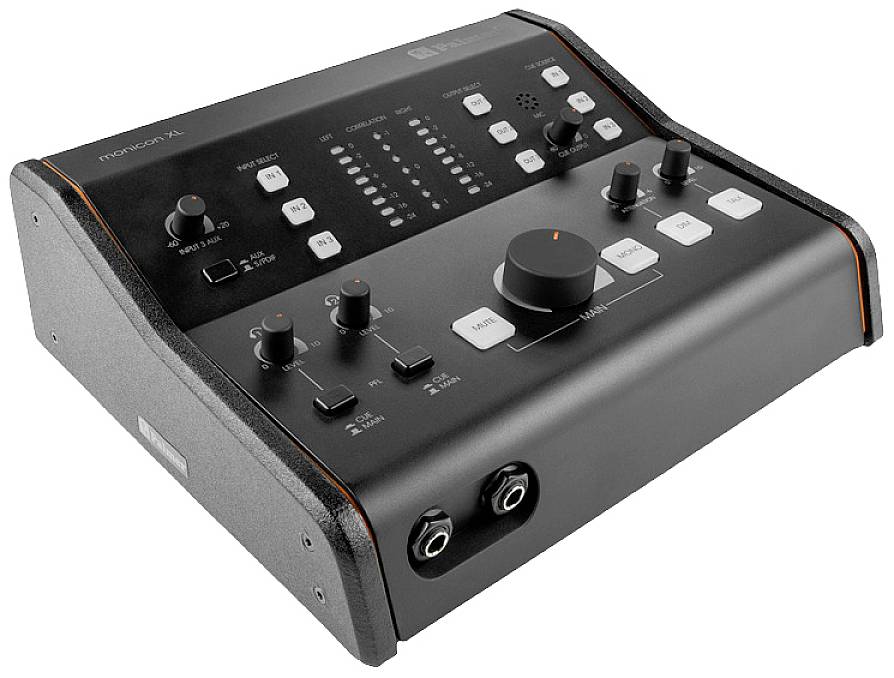

A black audio interface with multiple buttons and controls, including a large rotary knob. Connections on the front panel.

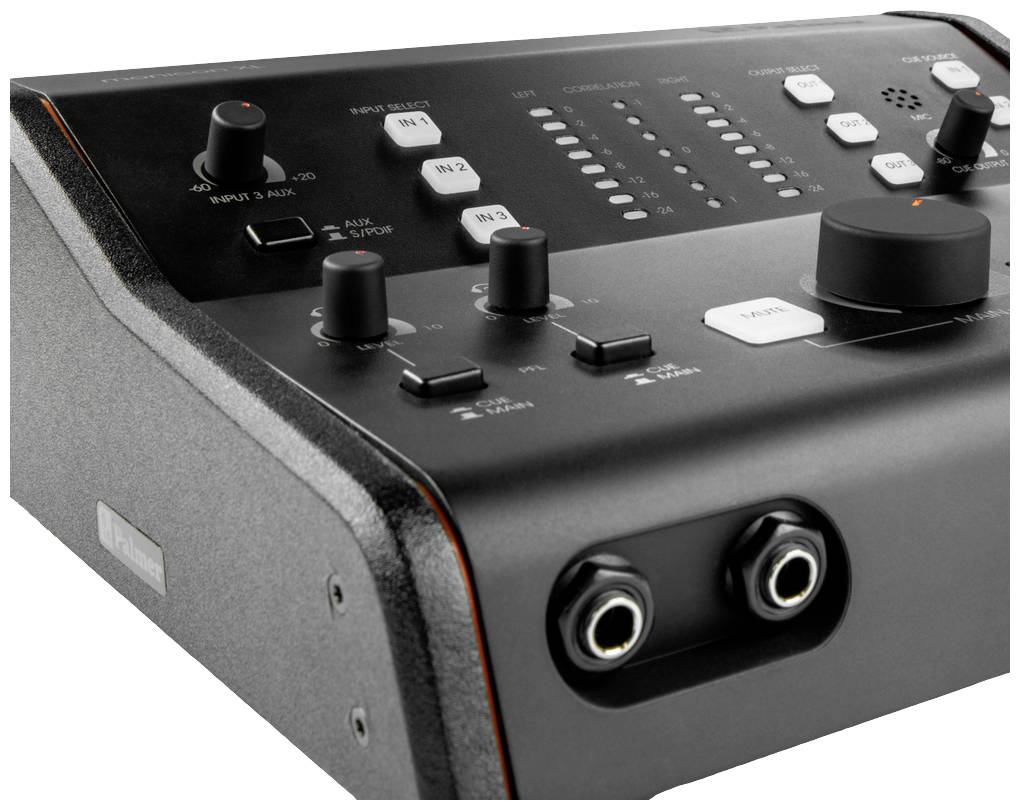

Audio mixing desk with multiple rotary controls, buttons, and connections. User-friendly interface for precise sound control.

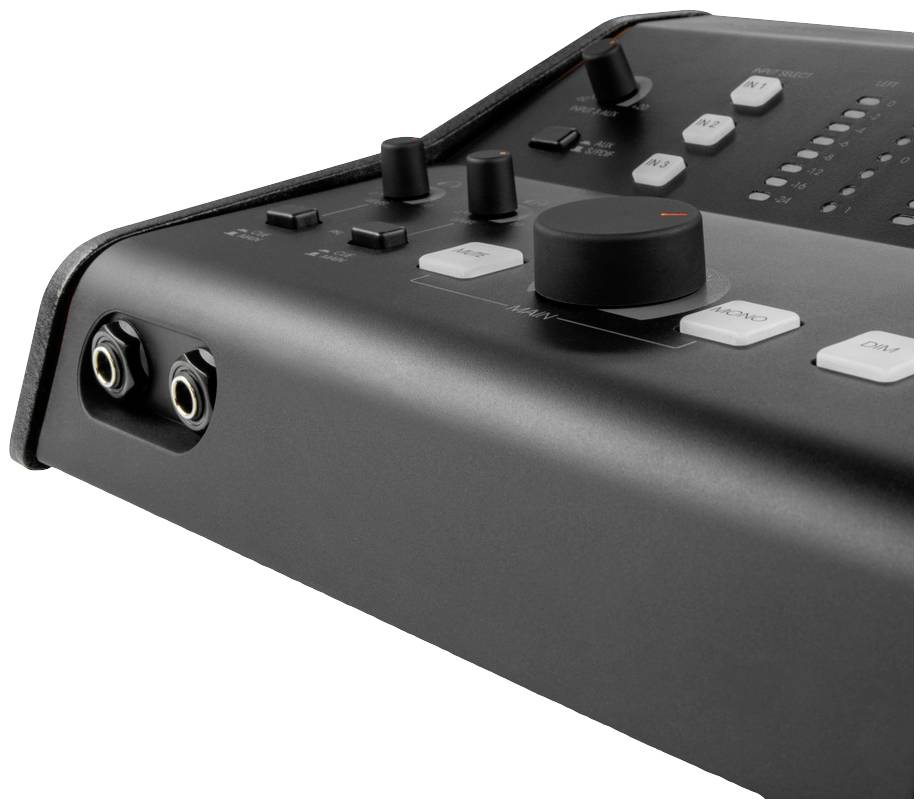

A black audio mixing desk with multiple sliders, buttons, and rotary knobs. Connections are visible on the side.

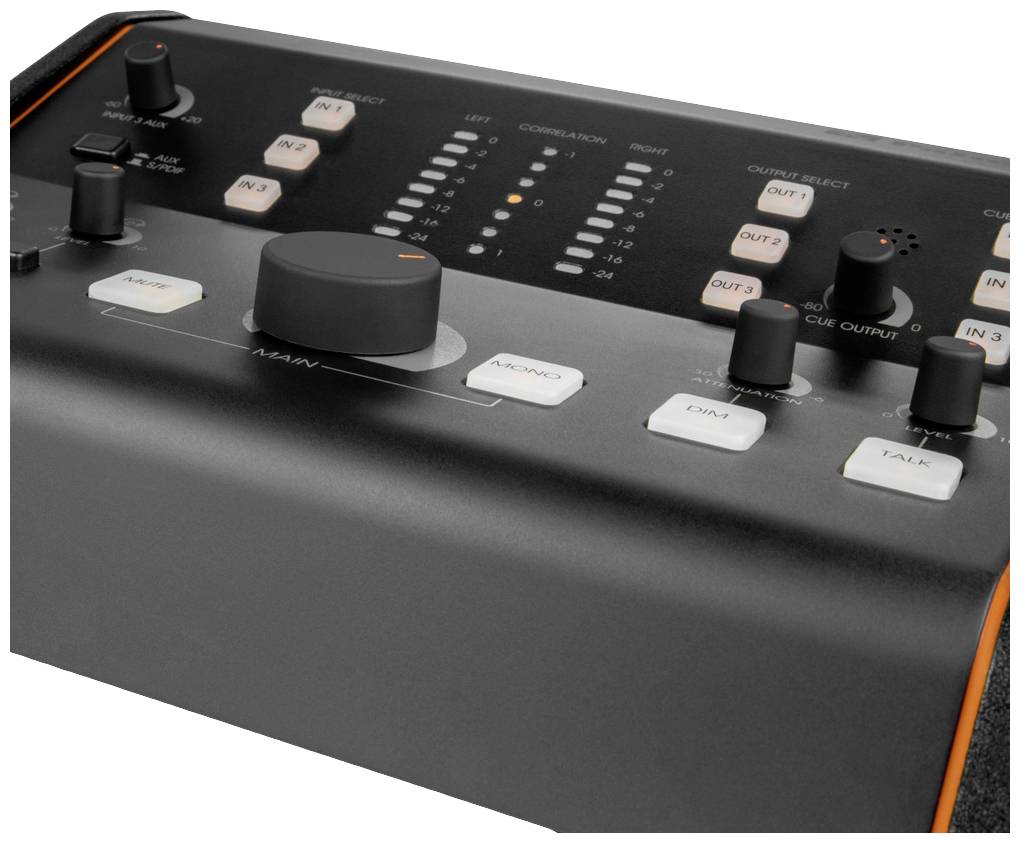

A black audio mixing console with multiple sliders, knobs, and buttons on the surface. It is used for sound control.

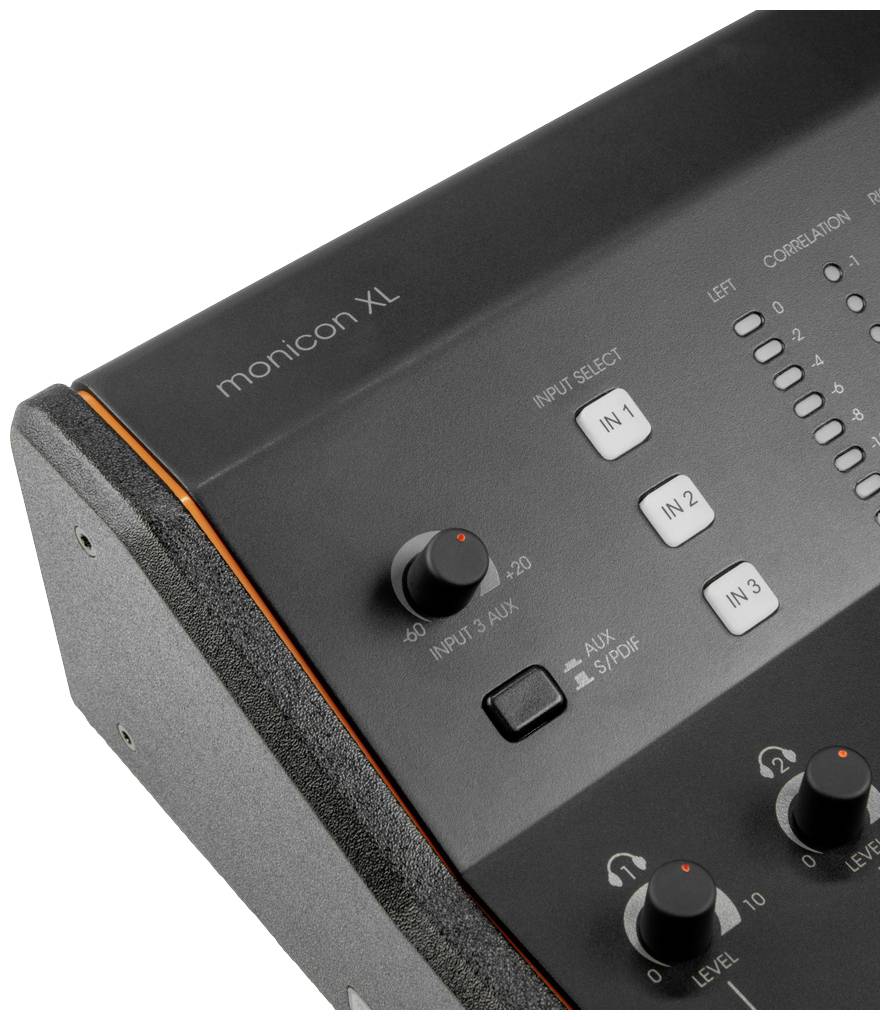

'Monicon XL Audio Interface with Switching Buttons and Input Controls. Primary Colour: Black, with White Text and Orange Accents.'

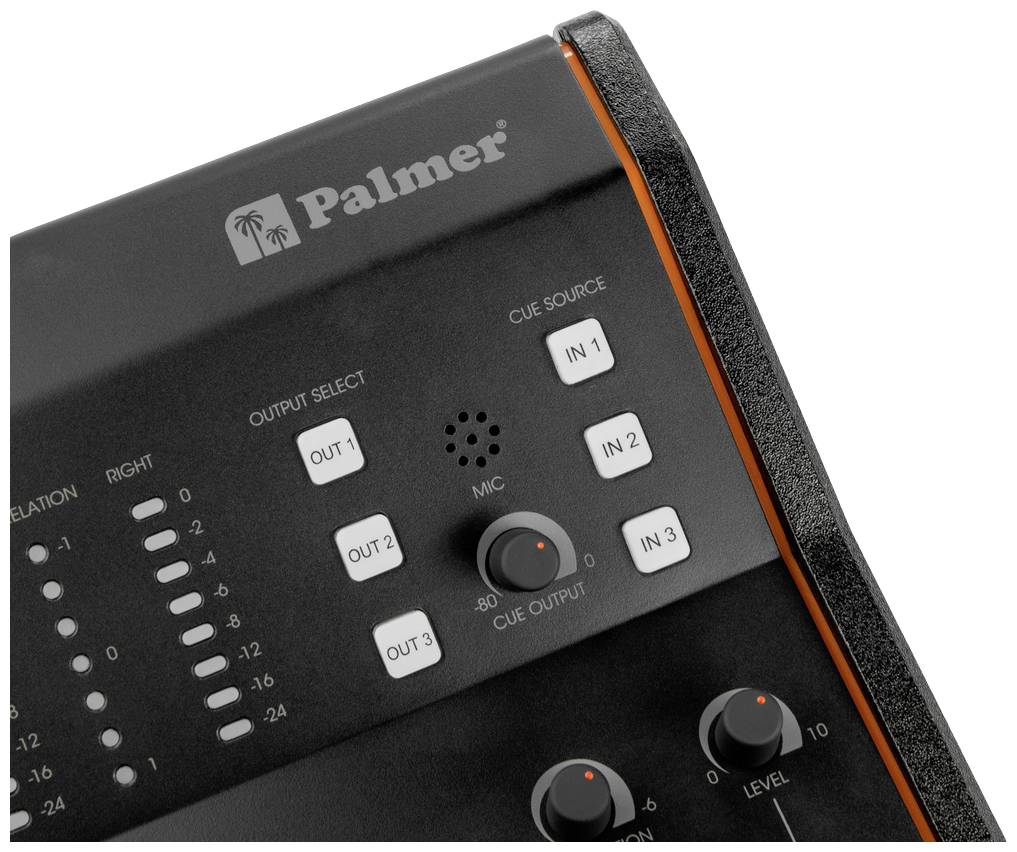

A black audio mixing desk with grey buttons and orange accents. Labelled with 'Palmer', it shows input and output options.

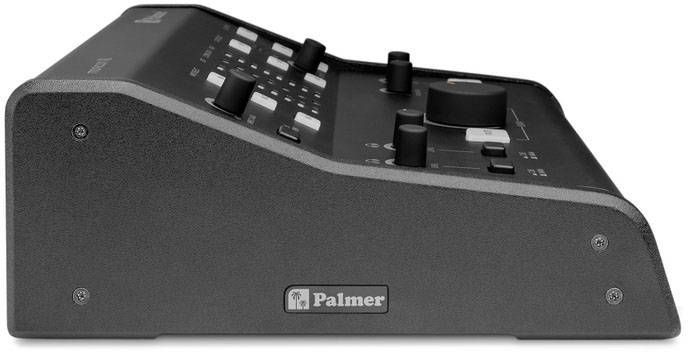

Black Palmer audio mixing desk with buttons and controls, side view.

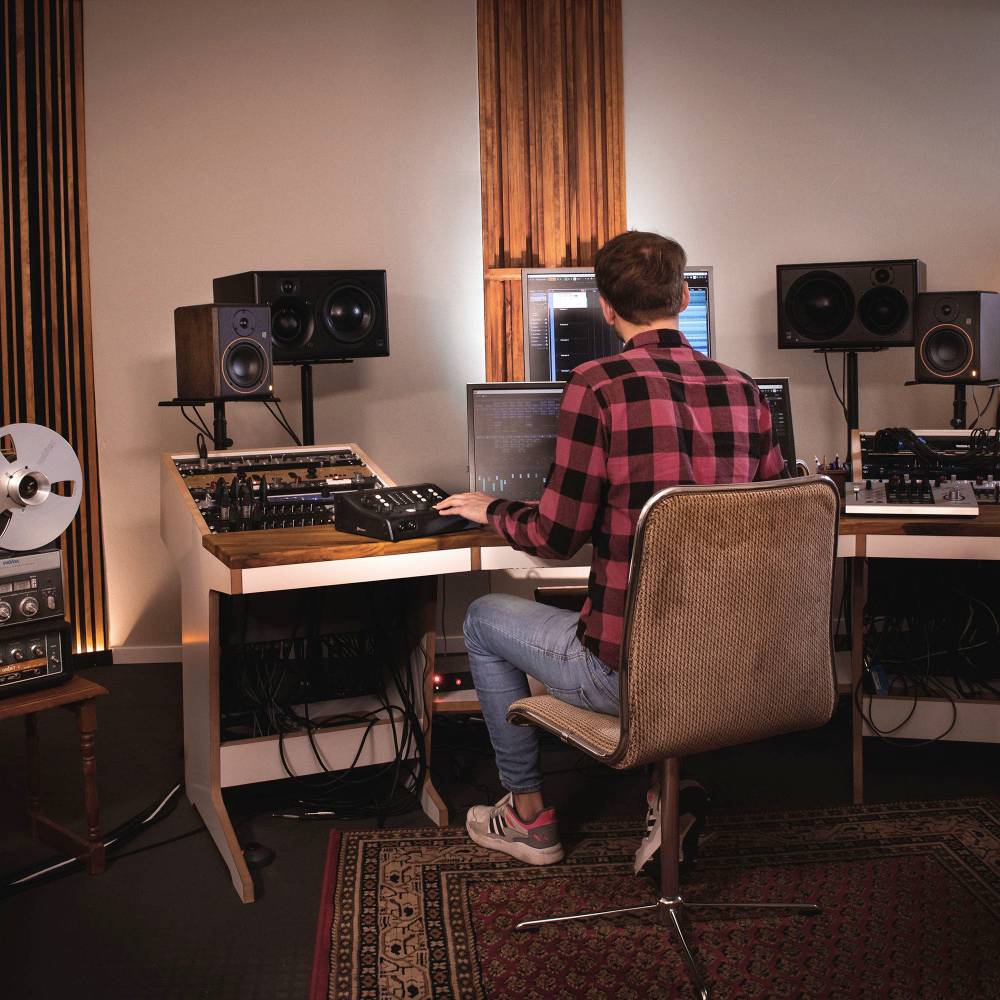

A person in a checked shirt is working in a studio with multiple monitors and speakers; the environment suggests music production.

A person wearing headphones is working on a computer with audio editing software in a recording studio.

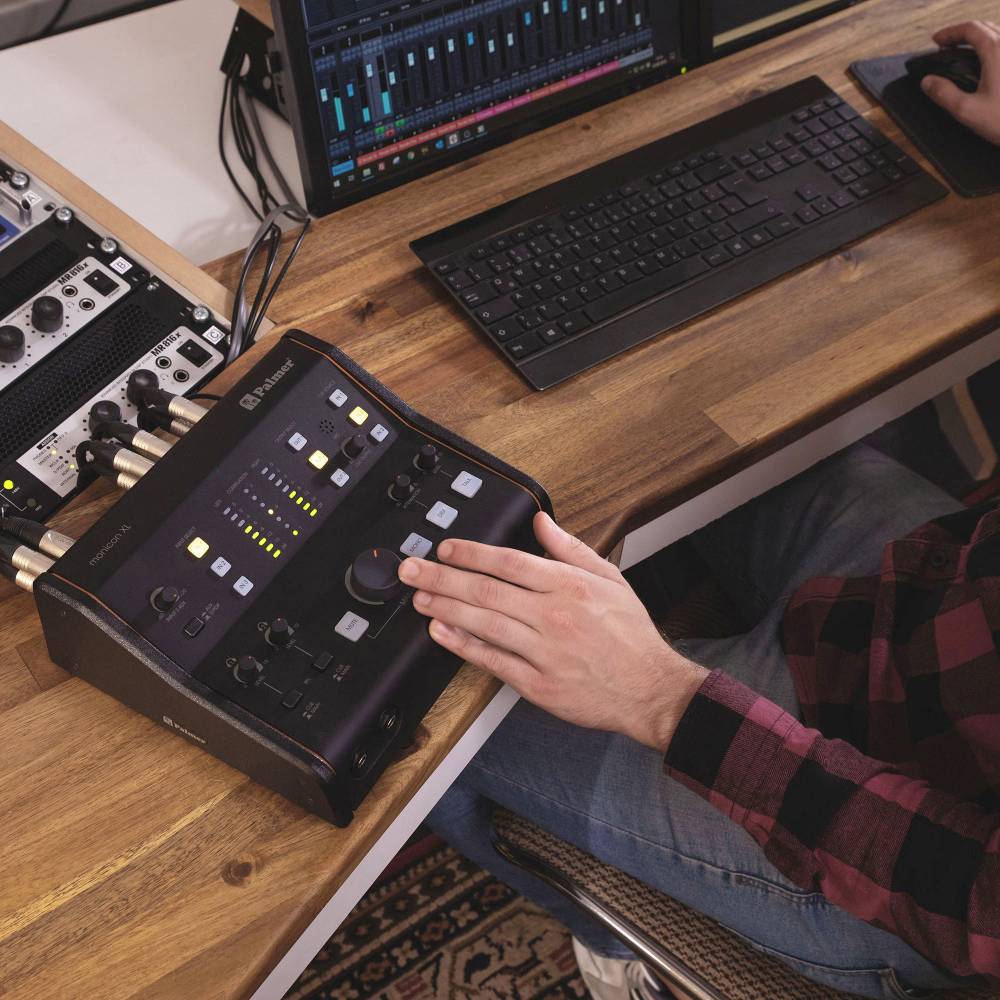

A person at a desk is using an audio mixing desk with multiple faders and buttons next to computer monitors and a keyboard.

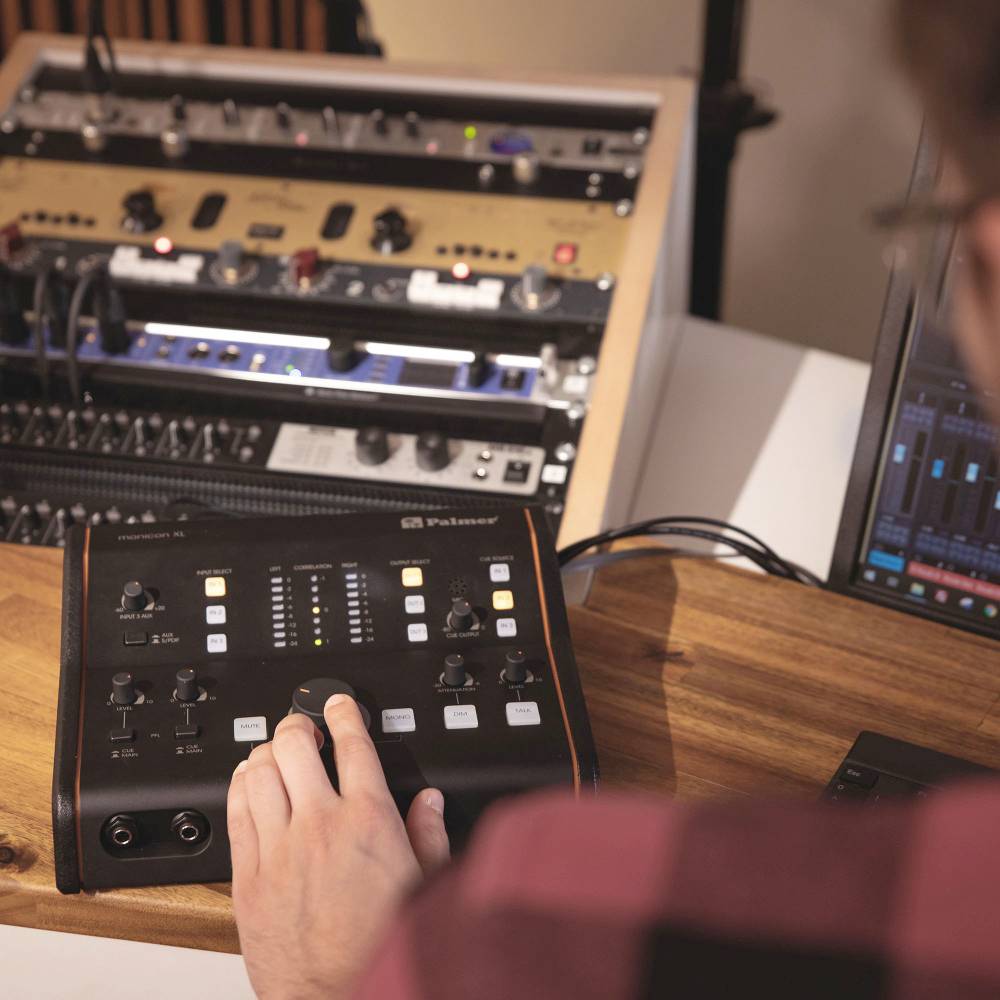

A person is operating a mixing desk in a studio, surrounded by various audio equipment and a computer screen.

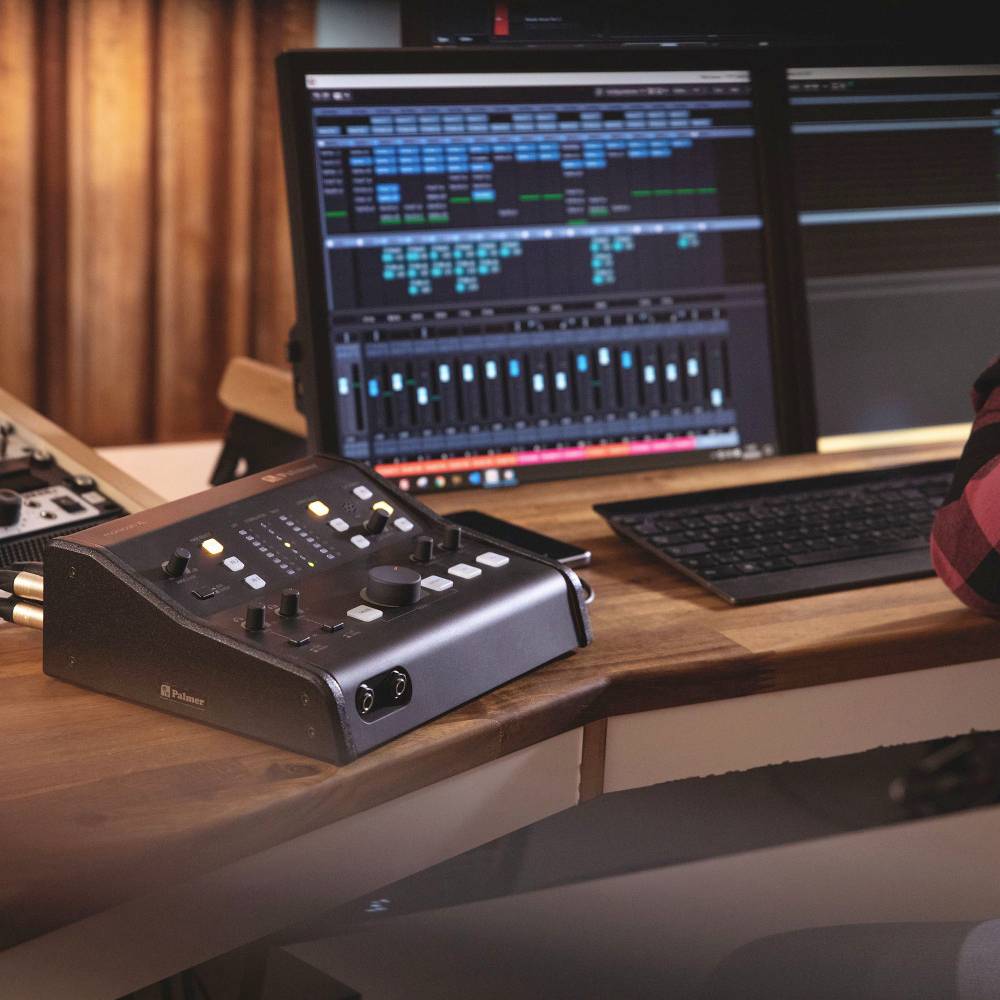

Recording studio with mixing desk, computer screens and keyboard. Audio software displays sound tracks and controls.

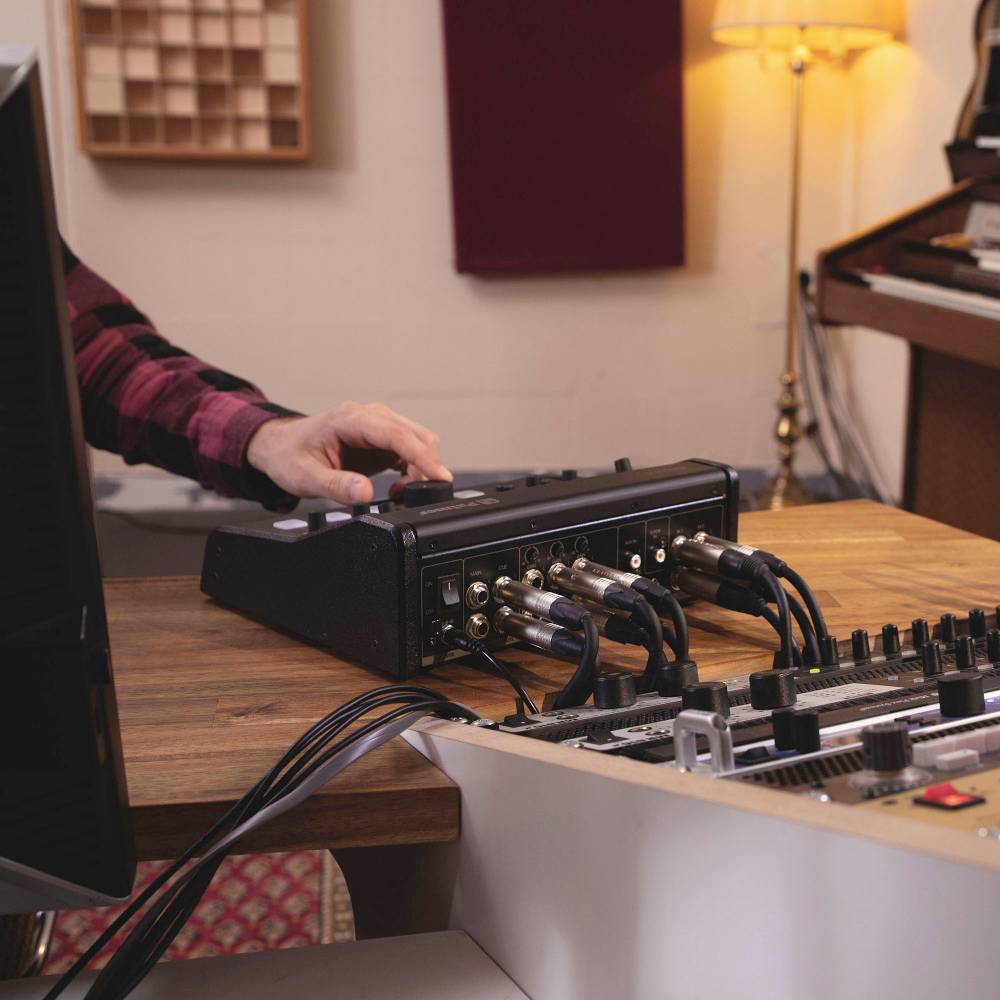

Recording Studio: An individual adjusts audio equipment on a table, surrounded by a mixing desk and cables. A lamp and wall decoration are visible in the background.

'Musician in recording studio playing electric guitar, wearing headphones. Tape machines and mixing desk in the background.'

1/21

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

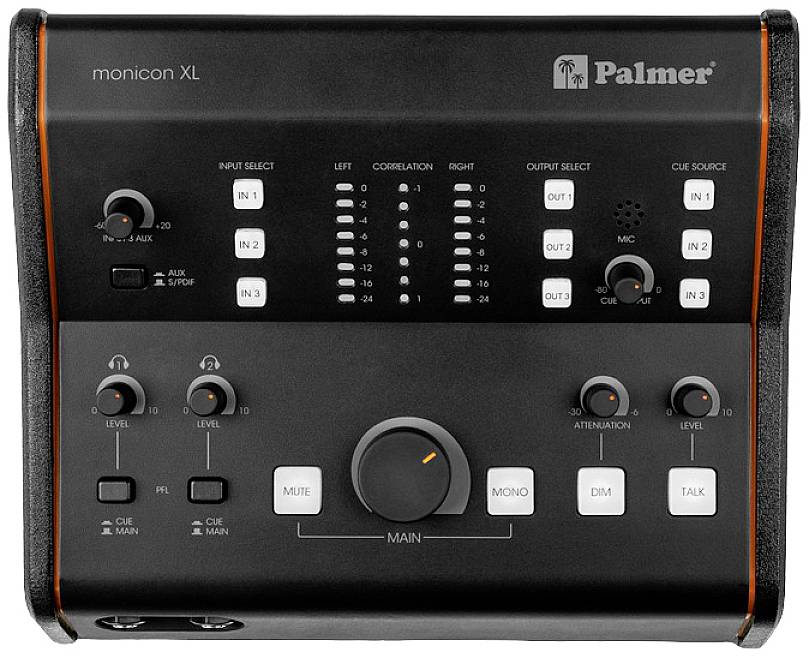

Palmer MONICON XL active studio monitor controller

Latency-free analogue signal pathPersonally configurableLevel display L/R with selectable calibration +4, +10 or +18 dBuCorrelation degree meter for checking mono compatibilityTwo headphone outputs with volume controls and main cue switchesThree analogue inputs, one S/PDIF inputThree loudspeaker outputs with volume controls for level adjustmentMono-sum output for subwoofer or mono-monitorMain and cue direct outputs

Technical specifications

Outputs: 1x unsymmetrical stereo CUE output, 1x unsymmetrical stereo MAIN output, 2x stereo headphone outputs (PHONES), 3x adjustable and balanced stereo outputsNumber of inputs: 3 + SPDIFInput connections: 3.5 mm stereo jack, 6.3 mm jack, cinch, SPDIFInput type: Symmetrical / asymmetrical depending on the jack plugMax.Input level 20 dBuInput impedance : (Symmetrical) 10,000 Ohm, (asymmetric) 5,000 OhmNumber of outputs: 7 x stereoOutput connections: TRS balanced (1 - 3), TRS unbalanced (CUE, MAIN, headphones 1 & 2)Output impedance 600 OhmFrequency response : 12 - 90000 HzDistortion factor (THD) : 0.002% (BW 20 - 20,000 Hz)SNR: 102 dB (a-weighted) @ + 4 dBuDynamic range (DR AES17) : 115 dBCMRR> 55dBMax.Attenuation 111 dB (Attenuator + Mute), 86 dB (Attenuator)Controls: Attenuation, audio dim, output selection, input selection, mono, Mute, PFL source, talkbackHousing material : Wood, sheet steelHousing surface: Powder-coated

Product type: #####Aktiver Monitor-Controller

: n.rel.

Dim: (L x W x H) 21.5 x 25.4 x 8.4 cm

Weight: 1.512 kg

Width: 25.4 cm

Height: 8.4 cm

Length: 21.5 cm

Type: Active

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2616387 Palmer Musicals Instruments MONICON XL #####Aktiver Monitor-Controller #####Aktiver Monitor-Controller

Description

Switching between different signal sources and monitors is probably one of the most common actions in every studio. With its ergonomic desk design and two clearly structured operating levels, the Palmer MONICON XL is the perfect and intuitive control center for all requirements. The selection of audio sources and loudspeakers is done comfortably and simply by pressing a button.The studio monitor controller from Palmer has three analogueue stereo inputs, one S/PDIF input as well as outputs for three monitor pairs with individual volume controls for level adjustment. A mono monitor or a subwoofer can be connected via another monosummed full range output. An exclusive highlight of the MONICON XL is the correlation degree meter for displaying the phase difference between the left and right channel of a stereo signal. Thus, errors in the mono compatibility in the mix can be detected quickly and easily. You can configure the controller in person to support your personal way of working.The MONICON XL has no latency or signal discoloration due to its completely analogueue audio circuit. With additional functions that are important for every studio, the device is far more than a pure monitor controller. Two headphone outputs with volume controls and main cue switches, a cue master control and a switchable talkback microphone that can be adjusted in volume are also part of the equipment as well as a mute switch and a dim button with volume control, which reduces the monitor level by a preset value in a flash.

This text is machine translated.
