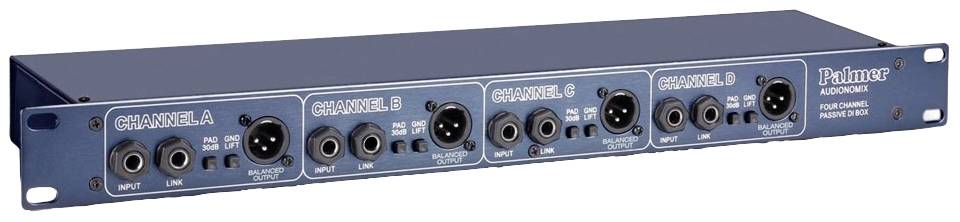

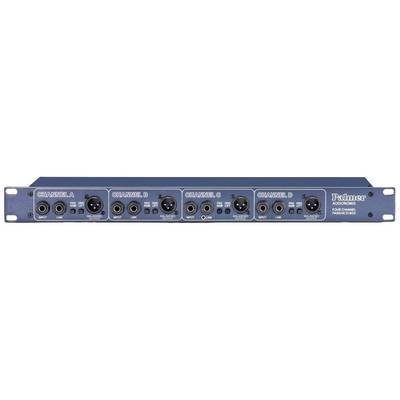

Palmer Musicals Instruments PAN 03 PASS 19" passive DI box 4-channel
EAN:
Part number:
Item no:
Technical specifications
- Number of inputs: 4Input connections : 6.3 mm jackMax.Input level : + 54 dBuInput impedance (@ 60 Hz) 68k OhmInput attenuation 0 / -30 dBNumber of outputs: 4 (+ 4 parallel outs)Number of THRU outputs per channel: 1Output connections : 6.3 mm jack, XLRMax.Output level +4 dBuOutput impedance 600 OhmFrequency response : 10 - 40000 HzTransformer balanced : YesRatio: 10 : 1Controls: Attenuation, ground liftHousing material : Steel sheetHousing surface: Powder-coatedWidth : 19"Depth: 90 mmHeight : 1 HE
- Product type
19" passive DI box
- Channels
4
- Interfaces
6.3 mm jack in
6.3 mm jack out
XLR out
- Weight
1.43 kg
- Width
480 mm
- Height
45 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2616411 Palmer Musicals Instruments PAN 03 PASS 19" passive DI box 4-channel
Description

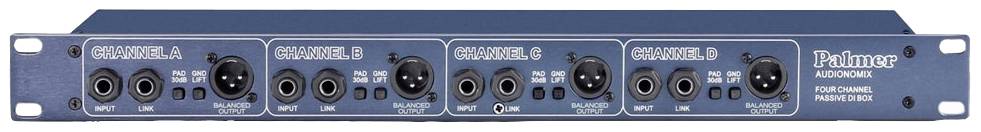

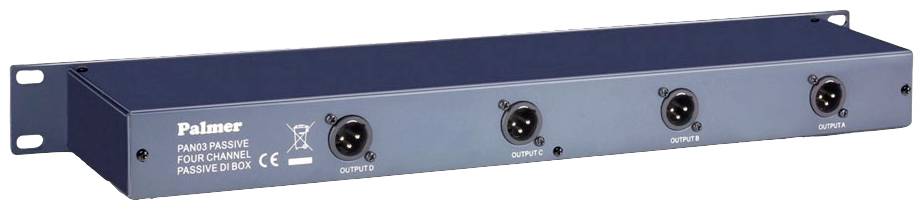

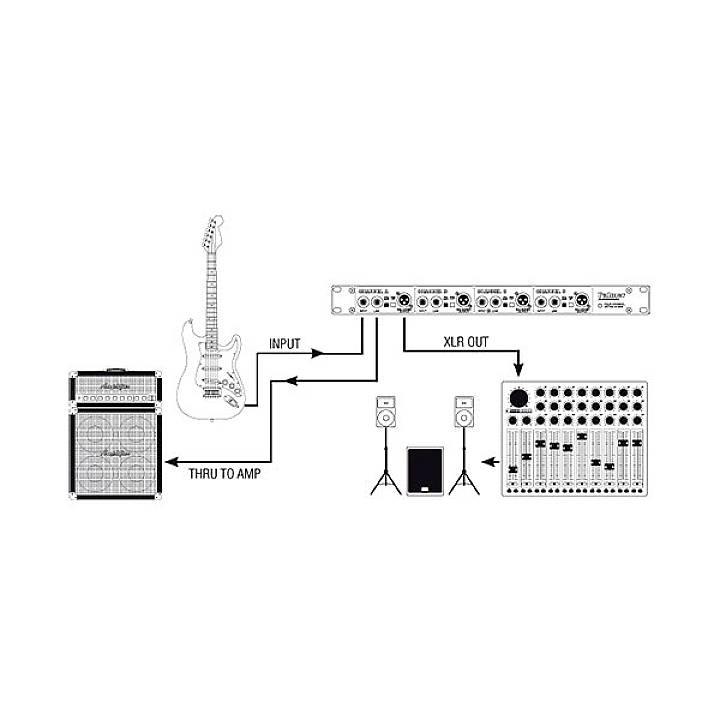

Passive 4-channel DI BOX in 19" housing. Each channel has a jack input with parallel output for looping through the signal. A damping switch (-30 dB) allows the optional connection of line or loudspeaker signal. The specifications are identical to PAN 01. All connections and switches are located on the 1 HE front panel, the XLR output is also available as a parallel socket on the rear side.
